Square D HJA36070

B009SDVETQ

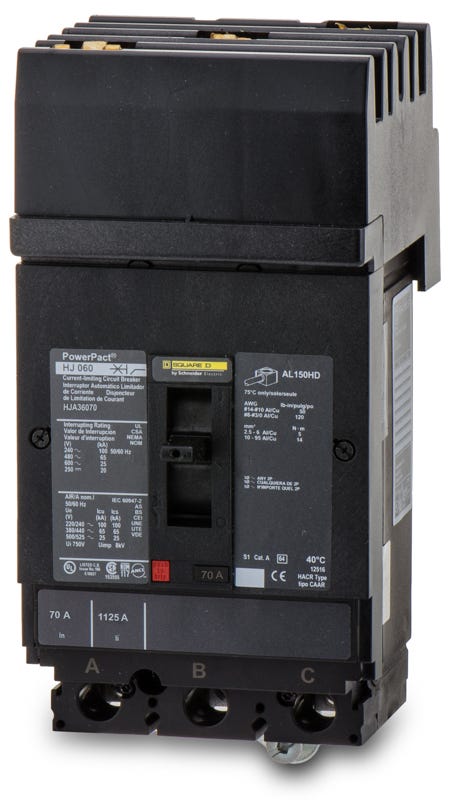

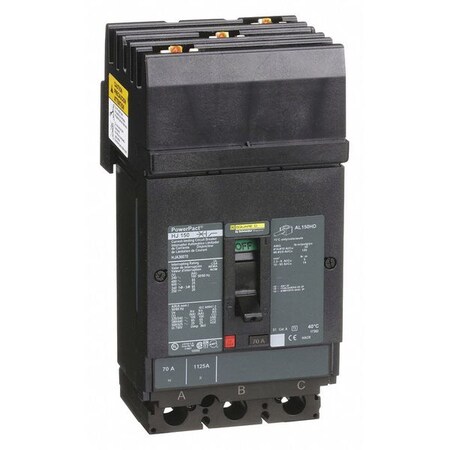

SQUARE D HJA36070 Molded Case Circuit Breaker 600V 70A

SQUARE D HJA36070 Molded Case Circuit Breaker 600V 70Azoom

Attributes

Key Value
AC Voltage Rating600VAC
Amperage70A
Amperage Rating70
Amps70
ApplicationHACR rated Applications.
ApprovalUL Listed, CSA Certified
ASINB011OTNOYE
AWG RangeAWG 14...AWG 3/0 alumin.
Batteries Required?No
BrandSquare D, Square D by S.
Catalog NumberHJA36070
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
Color FamilyBlack
ConnectionI-LINE CONNECTION (ON E.
Country of OriginMX - Mexico, Mexico
Current Rating70 A, 70A
Depth86 mm
DisplayHJA36070 Circuit breake.
ECCNEAR99
Family NamePowerPact H Family
FeaturesMercury Free; PVC Free
FrameH-Frame
Frame SizeH
Frame TypeH Frame, H-Frame
Frequency Rating50/60HZ
Gtin785901700661
Height163 mm, 4.5 in., 6.42
High Amp Trip Setting1450 A
Interrupt Rating100 kA at 220/240V AC, .
ItemMolded Case Circuit Bre.
Item TypeMolded Case Circuit Bre.
Length16 mm, 4.8 IN
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating100 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
Mounting TypePlug-On, I-Line
MpnHJA36070
No. of Poles3-Pole
Number of Poles3
Operating Temperature-13F AND 158F (-25 C AN.
Package Quantity1
Part NumberHJA36070
Phase3
Phase ConnectionABC
Poles3
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesHJA, PowerPact H-Frame .
Special FeaturesI-LINE PLUG-ON
StandardUL || CSA || NEMA || NO.
StandardsUL, CSA, NEMA, NOM, CE,.
Sub BrandPOWERPACT
Terminal ConnectionI-Line, Lug
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip RangeHOLD: 800A - TRIP: 1450A
Trip TypeTHERMAL-MAGNETIC, Therm.
TypeThermal/Magnetic
UNSPSC39121616
UNSPSC Code39120000
UPC785901700661
Upc785901700661
UPC Code785901700661
Voltage600
Voltage Rating600 V, 600 VAC/250 VDC
Warranty DescriptionContractual Warranty:18.
Width4.09, 104 mm, 104 in.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8PLQ1.4860755167SQUARE D1.4860755 @ 1
AmazonSCB011OTNOYE736.76167Square D by Schneider Electric736.76 @ 1
thumbzoomsuperbreakers.comHJA360701134.01In StockSquare D1134.0 @ 1
simplybreakers.comHJA360701139.991In StockSchneider Electric1139.99 @ 1
standardelectricsupply.com11923771202.61In StockSquare D1202.6 @ 1
thumbzoomgordonelectricsupply.comHJA360701270.016710SQUARE D1270.0 @ 1
Newark20K02021369.091In StockSQUARE D BY SCHNEIDER ELECTRIC1369.09 @ 1
thumbzoomZoroG05679111449.9916710Square D5.71449.99 @ 1
steinerelectric.com2344281594.19167Square D?1594.19 @ 1
us.rs-online.com709531931629.63167Square D1629.63 @ 1
Graybar250450231919.982413Square D (Schneider Electric)1919.9824 @ 1
thumbzoomcrescentelectric.com1200892332.3711Square D by Schneider Electric2332.37 @ 1
thumbzoomsustainablesupply.comC30464642354.0167Square D5.72354.0 @ 1
thumbzoommostelectric.comHJA360702605.9211SQUARE D/TELEMECANIQUE2605.92 @ 1
