Square D by Schneider Electric 9013FSG9J24

B00CONM0QS

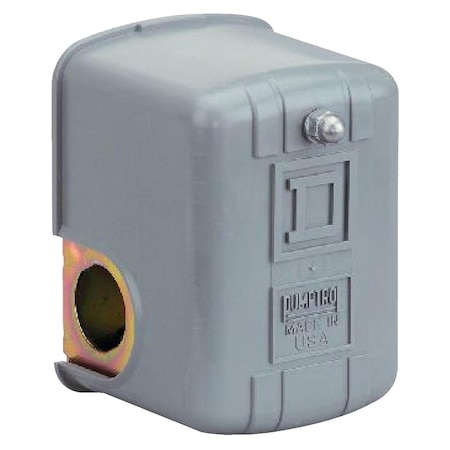

Square D by Schneider Electric 9013FSG9J24 Air-Pump Pressure Switch, NEMA 1, 40-60 psi Pressure Setting, 20-65 psi Cut-Out, 15-30 psi Adjustable Differential

Square D by Schneider Electric 9013FSG9J24 Air-Pump Pressure Switch, NEMA 1, 40-60 psi Pressure Setting, 20-65 psi Cut-Out, 15-30 psi Adjustable Differentialzoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
Adjustable Range On Ris.20-65 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
ApprovalsCSA, UL
Approximate Adjustable .15-30 psi
Burst Pressure220 psi
Cable Entry Number2 0.88 in cable entries.
California Proposition .Diisononyl phthalate (D.
Circuit TypePower Circuit
Circularity ProfileENVEOLI111210EN
ConditionNew
Contact TypeDPST
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidfresh water -22-257 ?F)
Depth3.76 in
Destruction Pressure220 psi
DifferentialAdjustable Differential.
Electrical Circuit TypePower Circuit
Electrical ConnectionScrew Terminals, Screw-.
Electrical Durability100000 cycles 10 cyc/mn
Enclosure RatingNEMA 1
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.4
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Pressure Switc.
Fluid Connection Type0.25 inch NPT external .
Gauge Proof Pressure500 psig
Gross Weight0 lbs
GTIN785901962076
Height2.8 in
HP @ 1 Phase - 120V1 1/2 hp
HP @ 1 Phase - 240V2 hp
HP @ 3 Phase - 240V3 hp
HP @ 3 Phase - 480V1 hp
Increasing Pressure20-65 psi
Ip Degree Of ProtectionIP20 conforming to IEC .
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Item Number9013FSG9J24
Local Displaywithout
Manual Switch ActionNone
ManufacturerSquare D
Manufacturer Part Number583787
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
Motor Power Kw1.5 kW 2 hp)230 V AC, 1.
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA Rating1
Net Weight1 lb(US), 1 lb
Operating Positionany position
Port Connection1/4 NPT Male
Pressure Actuatordiaphragm
Pressure Sensor Name9013FS
Pressure Sensor Size65 psi 5-45 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Water Pump
Pressure Switch Differe.15 to 30 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.30/50 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range20 to 65 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Product CertificationsUL listed file E12158 |.
Product Series9013F
Product Specific Applic.control electrically dr.
Promotion RestrictionNot eligible for promot.
Protective TreatmentNone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
Special FeaturesMercury Free; Green Pre.
StandardsNSF ANSI 61 Annex G || .
Temp. Range-33 Degrees to 257 Deg.
Terminal Block Type4 terminals
Terminals Description I.L2-T2 || L1-T1
Type of CircuitNormally Closed
Type Of Packingindividual
Value Of Setting40...60 psi
Warranty18 months
Weight2.000000
Width2.78 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco9013FSG9J24-SQD21.511In StockSquare D1.021.51 @ 1
thumbzoomindustrialrefrigerationparts.com9013FSG9J2421.921In StockSquare D2.021.92 @ 1
thumbzoomZoroG083852521.951In StockSquare D0.8321.95 @ 1
thumbzoomblackhawksupply.com9013FSG9J2428.91In StockSquare D28.9 @ 1
thumbzoommayerelectric.comSQD9013FSG9J2430.331In StockSQUARE D1.030.33 @ 1
thumbzoommostelectric.com9013FSG9J2432.4511SQUARE D/TELEMECANIQUE32.45 @ 1
thumbzoommidwestapplianceparts.com9013FSG9J24-SQ-P43.271In StockSquared43.27 @ 1
