Square D HJA36110

B009OYE5NG

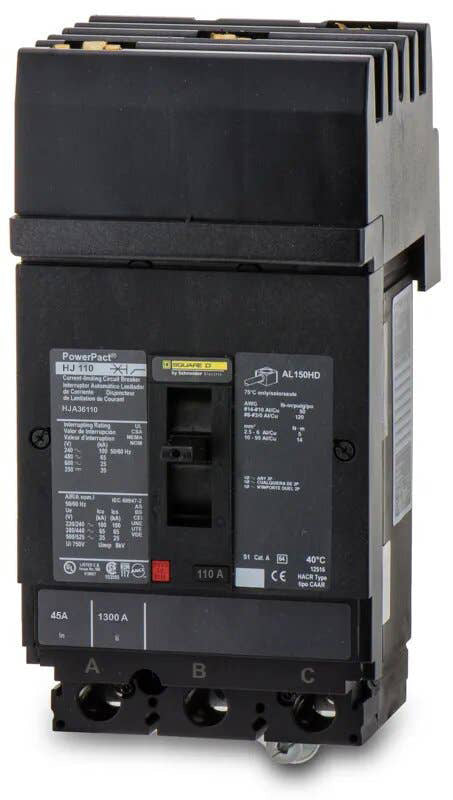

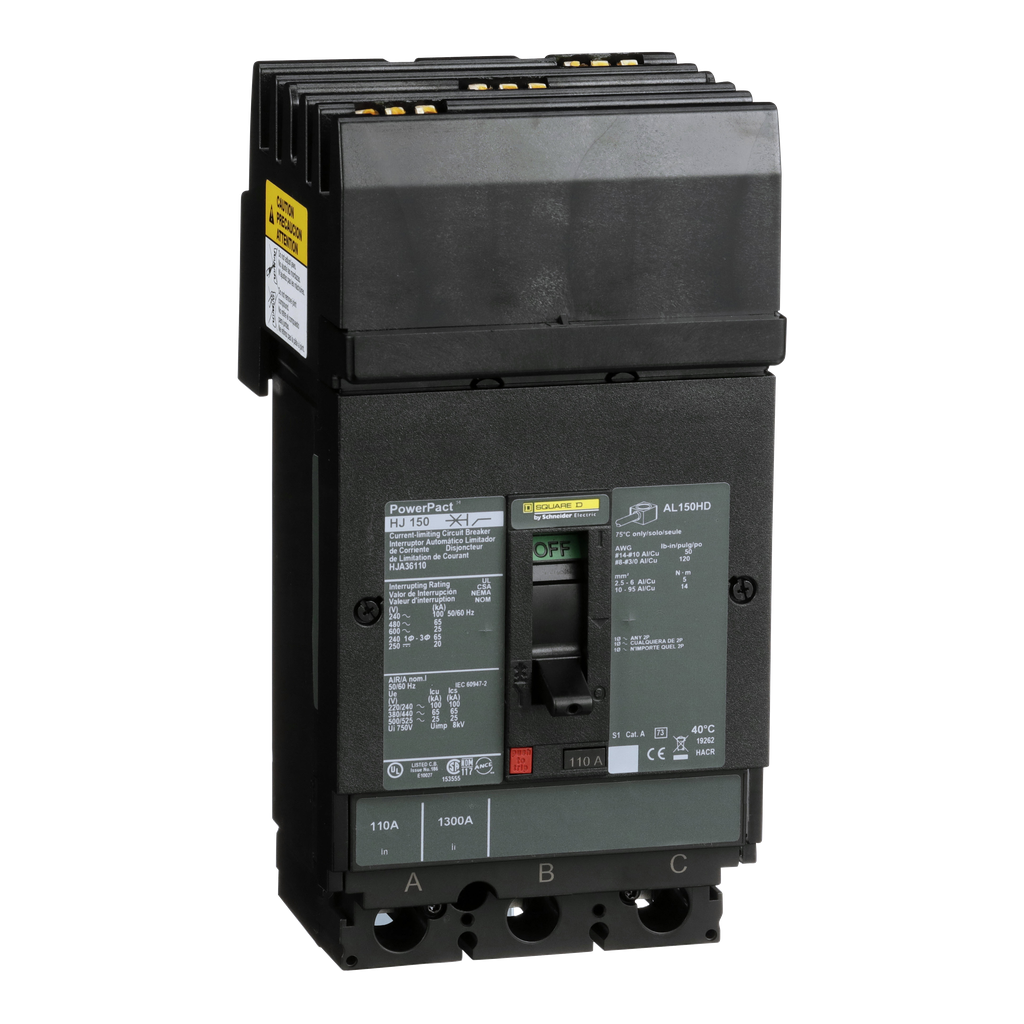

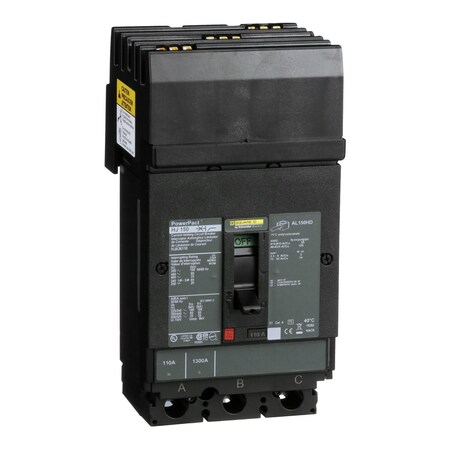

SQUARE D HJA36110 Molded Case Circuit Breaker 600V 110A

SQUARE D HJA36110 Molded Case Circuit Breaker 600V 110Azoom

Attributes

Key Value
[Ics] Rated Service Bre.100 kA 220/240 V AC 50/.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600VAC
Actuator TypeToggle
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage110
Amperage Rating110
Amps110
ApplicationHACR rated Applications.
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity100 kA 240 V AC 50/60 H.
Breaking Capacity CodeJ
California Proposition .DINP, which is known to.
Catalog NumberHJA36110
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206027EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Continuous Current Rati.80 %
Control TypeToggle
Country of OriginMX - Mexico, Mexico
Current Rating110-110A
Depth86 mm
Device Applicationdistribution
DisplayHJA36110 Circuit breake.
ECCNEAR99
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
FeaturesMercury Free; PVC Free
FrameJ
Frame SizeH
Frame TypeH
FunctionsLong Time and Instantan.
Gtin785901422372
Height163 mm, 4.5 in., 6.42
High Amp Trip Setting1700 A
Interrupt Rating100 kA at 220/240V AC, .
Interrupting Rating100kA@240VAC, 65kA@480V.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item Typecircuit breaker
Length16 mm, 4.8 IN
Line Rated Current110-110 A
Local Signallingswitched off (OFF) 1 tr.
Made in USANo
Magnetic Hold Current900 A
Magnetic Tripping Curre.1700-1700 A
ManufacturerSchneider Electric
Max. AIR Rating100 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height4.5 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting TypeI-LINE
MpnHJA36110
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles3-Pole
Number of Poles3
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase3
Phase ConnectionABC
Poles3
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.3t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHJA
Special FeaturesI-LINE
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionLine and Load Side Lug,.
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range110 A,1700 A,900 A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
UNSPSC39121616
UPC785901422372
Utilisation Categorycategory A
Voltage600VAC, 250VDC
Voltage Rating250 V DC-600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width104 mm, 104 in., 4.09
Wire GaugeAWG 14 to AWG 3/0 Alumi.
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8PLV2.9833245133SQUARE D2.9833245 @ 1
AmazonSCB009OYE5NG848.8133Square D by Schneider Electric848.8 @ 1
AmazonTPB009OYE5NG997.51331SQUARE D997.5 @ 1
thumbzoomsuperbreakers.comHJA361101863.413Square D1863.4 @ 1
standardelectricsupply.com22455042895.841In StockSquare D2895.84 @ 1
thumbzoomgordonelectricsupply.comHJA361103100.013310SQUARE D3100.0 @ 1
thumbzoommayerelectric.comSQDHJA361103211.251In StockSQUARE D4.843211.25 @ 1
thumbzoomRadwellHJA361103350.0133SCHNEIDER ELECTRIC SQUARE D3350.0 @ 1
Newark20K02063385.821In StockSQUARE D BY SCHNEIDER ELECTRIC3385.82 @ 1
thumbzoomZoroG08548413539.2113310Square D6.393539.21 @ 1
simplybreakers.comHJA361103828.991In StockSchneider Electric3828.99 @ 1
steinerelectric.com3822323891.97133Square D?3891.97 @ 1
thumbzoomcrescentelectric.com1248855694.09133Square D by Schneider Electric5694.09 @ 1
thumbzoomsustainablesupply.comC30466316031.65133Square D6.396031.65 @ 1
Graybar250450306176.3521In StockSquare D (Schneider Electric)6176.352 @ 1
