Schneider Electric HJL36100SA

B00CONGKYG

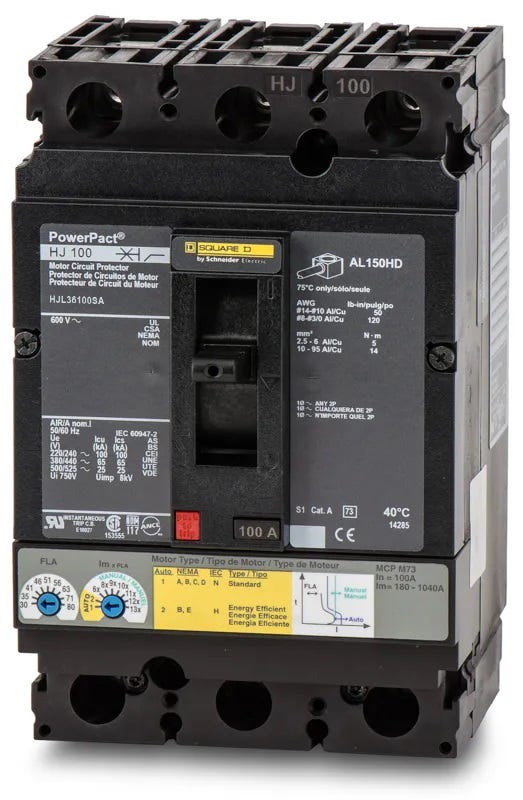

SCHNEIDER ELECTRIC 600-Volt HJL36100SA Molded Case Circuit Breaker 600V 100A

SCHNEIDER ELECTRIC 600-Volt HJL36100SA Molded Case Circuit Breaker 600V 100Azoom

Attributes

Key Value
[Ics] Rated Service Bre.65 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
Accessory / Separate Pa.shunt trip 110...130 V .
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage100
Amperage Rating100
Applicationdistribution
ApprovalCSA, CE, UL, IEC, CCC
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity100 kA 240 V AC 50/60 H.
Breaking Capacity CodeJ
California Proposition .DINP, which is known to.
Catalog NumberHJL36100SA
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1311006EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionLugs line;lugs load; AW.
Connection TypeFeed-Thru
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States, US - Uni.
Current Rating100-100A
Depth86 mm
Device Applicationdistribution
DisplayHJL36100SA Circuit brea.
ECCNEAR99
Electrical Connectionlugs line || lugs load
Environmental DisclosureENVPEP1311006EN
Eu Rohs DirectiveCompliant
FrameJ
Frame TypeHJL
FunctionsLI - Long-Time and Inst.
Gtin785901697947
Height163 mm, 6.42
Height (in)6.4
Interrupt Rating25kA
Interrupting Rating250 V DC, 600 V AC, 65 .
Ip Degree Of Protectionfront cover IP40 IEC 60.
Item Typecircuit breaker
Length16 mm, 3.39
Length (in)4.36
Length UOMInch
Line Rated Current100-100 A
Local Signallingswitched off (OFF) 1 tr.
Made in USAYes
Magnetic Hold Current900 A
Magnetic Tripping Curre.1700-1700 A
ManufacturerSchneider Electric
Mercury FreeYes
Mounting Modeunit mount lug)
Mounting Supportlug
Mounting TypeUnit
MpnHJL36100SA
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles3-Pole
Number of Poles3
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase3
Poles3
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.3t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHJL
Special FeaturesShunt trip 110...130 V .
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionLine and Load Side Lug
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range100 A,1700 A,900 A
Trip Typethermal-magnetic
Trip Unit Technologythermal-magnetic
UNSPSC39121616
Upc785901697947
UPC785901697947
Utilisation Categorycategory A
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09
Width (in)4.12
Wire GaugeAWG 14, AWG 3/0 Alumini.
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comHJL36100SA1349.9912Square D1349.99 @ 1
Newark52T38882394.851In StockSQUARE D BY SCHNEIDER ELECTRIC2394.85 @ 1
thumbzoomgordonelectricsupply.comHJL36100SA2470.01In Stock10SQUARE D2470.0 @ 1
thumbzoommayerelectric.comSQDHJL36100SA2695.451In StockSQUARE D4.842695.45 @ 1
thumbzoomcrescentelectric.com4762963023.231In StockSquare D by Schneider Electric3023.23 @ 1
Graybar253099053153.921In StockSquare D (Schneider Electric)3153.92 @ 1
