TB Woods 14MPC75S125

mpn14MPC75S125
brandname: T.B. Woods
manufacturername: T.B. Woods

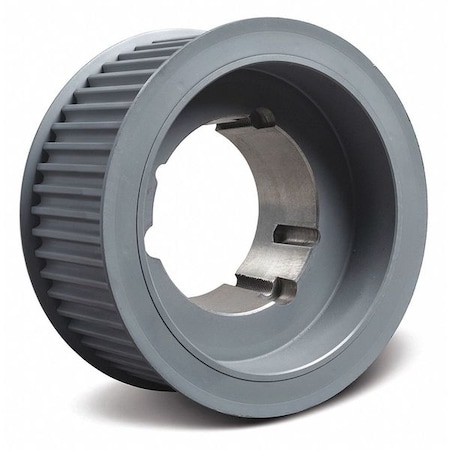

QT PowerChain II,14MPC-75S-125-5040

QT PowerChain II,14MPC-75S-125-5040

zoom

Brand: TB Woods
PartNumber: 14MPC75S125
Size: One Size
PackageQuantity: 1
Manufacturer: TB WOOD'S
Label: TB WOOD'S

Attributes

Key	Value
Belt width	125 mm
Bore type	Taper locking bushing
Bushing	5040
Bushing bore range	2 7/16 - 5
Dimension	4
Face width	5.61
Flanges	2
Groove profile	14M
Hub length	4
Hub location	1.61
I.D.	11.63
Inertia WR2 (lbs ft2)	20
Inertia WR?	623
Inside hub projection	0
Item	QT PowerChain II,14MPC-.
Material type	Cast iron
Number of grooves	75
Number of hubs	0
Number of teeth	75
O.D.	13.05
O.D. (in)	13.048
Outside hub projection	0
Pitch	14
Pitch diameter	13.16
Rim face	5.61
RPM upper limit	1920
Tooth pitch	14
Type	A1F

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1543278	958.99	1	In Stock	11	Tb Woods	105.0	958.99 @ 1
	MRO Supply	831790	968.11	1	In Stock		TB Woods		968.11 @ 1
	us.rs-online.com	73973461	1074.15	1	In Stock		TB Wood's (Altra)		1074.15 @ 1
