TE Connectivity 5227755-2

mpn5227755-2
brandname: TE Connectivity
manufacturername: TE Connectivity

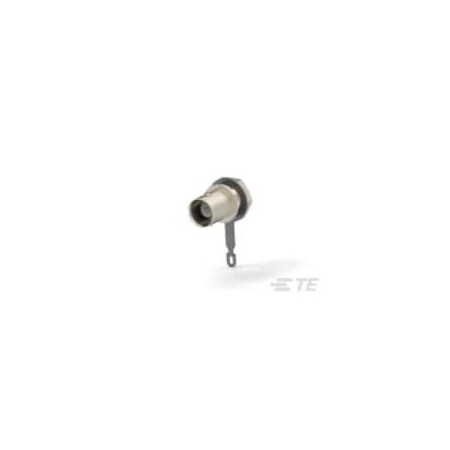

T-E Connectivity 5227755-2 (1 pc) BNC SOLDER RECEPT JACK SHORT

Brand: TE Connectivity
PartNumber: 5227755-2
PackageQuantity: 1
Manufacturer: T-E Connectivity
Label: T-E Connectivity

Attributes

Key	Value
Alternate Mfr Part Numb.	5227755-2
Alternate Part No.	571-5227755-2
Angle	Straight
Base Product Number	5227755
Body Finish	Nickel
Body Material	Zinc
Body Plating Material	Nickel
Body Style	Bulkhead
Brand	TE Connectivity
Cable Connector Orienta.	Straight
Cable Group	-
Category	Connectors, Interconnec.
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector	Wire & Cable
Connector Mounting Type	Panel
Connector Style	BNC
Connector System	Cable-to-Board
Connector Type	Jack, Female Socket
Contact Material	Phosphor Bronze
Contact Plating	Gold
Contact Termination	Solder Cup
Country of Origin (subj.	Mexico
Description	CONN BNC RCPT STR 50 OH.
Detailed Description	BNC Connector Jack, Fem.
Detent	With
Dielectric Material	Polybutylene Terephthal.
Digi-Key Part Number	A32343-ND
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency	4GHz
Frequency - Max	4 GHz
Gender	Jack
Housing Color	Silver
Housing Finish	Nickel
Impedance	50Ohm, 50 Ohms, 50
Includes	3 pcs - 1 Connector, 1 .
Ingress Protection	-
Insertion Loss	-
Insulation Resistance	5000 MOhms
Manufacturer	TE Connectivity AMP Con.
Manufacturer Part No.	5227755-2
Manufacturer Product Nu.	5227755-2
Manufacturer Standard L.	38 Weeks
Mating Cycles	500
Maximum Frequency	4 GHz
Mfr	TE Connectivity AMP Con.
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Panel Mount
Number of Coaxial Conta.	1
Number of Ports	1
Number of Positions	1
Operating Frequency	4
Operating Temperature	-65?C ~ 165?C
Operating Temperature R.	- 65 C to + 165 C, -55 .
Orientation	Straight
Package	Bulk
Packaging	Bulk
Packaging Method	Carton
Polarity	Standard, Normal
Port Configuration	Single Port
Primary Type	BNC
Product	Connectors
Product Category	RF Connectors / Coaxial.
Product Status	Active
RF Connector Center Con.	Phosphor Bronze
RF Connector Center Con.	Gold
RF Connector Coupling M.	Bayonet
RF Connector Mated Oute.	14.529?mm?[?.572?in?]
RF Connector Style	Jack
RF Contact Captivation .	Mechanical
RF Interface	BNC
RF Series	BNC
Sealable	No
Series	-
Shield Termination	Solder
Size	Standard
Special Features	Extended Insulation
Termination	Solder Cups
Termination Method to W.	Solder Terminal
Type	Bulkhead Jack
Voltage Rating	500 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
us.rs-online.com	70085876	1.23	1	1708		TE Connectivity	1.23 @ 1
Onlinecomponents.com	5227755-2	2.06	1	272		TE Connectivity / AMP Brand	2.06 @ 1
Waldom	TE CONNECTIVITY AMP BRAND 5227755-2	2.3	500	1		TE CONNECTIVITY/AMP BRAND	2.3 @ 24
TE Connectivity	5227755-2	2.4023	1	6812		TE Connectivity (TE)	2.4023 @ 1
Newark	42K7129	3.05	1	1781		AMP - TE CONNECTIVITY	3.05 @ 1
Hotenda	H835987	3.11	1	32		TE Connectivity AMP Connectors	3.11 @ 1
Zoro	G901009758	3.66	2000	27		Te Connectivity	3.66 @ 2000
Digi-Key	813452	3.72	1	5437		TE Connectivity AMP Connectors	3.72 @ 1
RS Delivers	821-8981	4.596	1	9		TE Connectivity	4.596 @ 1
swatee.com	5227755-2	4.74	1	1060		TE Connectivity	4.74 @ 1
AmazonTP	B083JP6QVZ	66.25	1	27	2	TE Connectivity / AMP	66.25 @ 1
