TE Connectivity / AMP 3-647000-4

B00FRBR43S

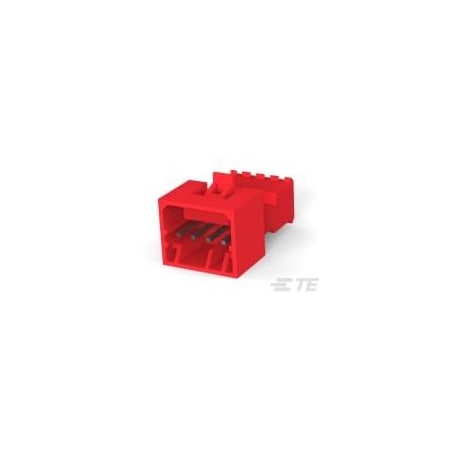

TE Connectivity/AMP Brand 3-647000-4 Connector Headers and PCB Receptacles

TE Connectivity/AMP Brand 3-647000-4 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Agency/StandardCSA, UL
Base Product Number647000
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorRed
Connection TypeConnector Assembly
ConnectorWire & Cable
Connector Mounting TypeCable Mount (Free-Hangi.
Connector StylePlug
Connector SystemWire-to-Wire
Connector TypePlug, Connector Assembly
Contact Current Rating .5
Contact FinishTin
Contact Finish Thickness80.0?in (2.03?m)
Contact LayoutIn-line
Contact Plating MaterialTin
Contact RetentionWith
Contact Retention TypeLocking Lance
Contact TypeMale Pin, Tab
Contact Underplating Ma.Nickel
Country of Origin (subj.China
CSA File NumberLR 7189
CSA RatingCertified
DescriptionCONN PLUG 4POS IDC 22AW.
Detailed Description4 Position Rectangular .
Digi-Key Part NumberA113574-ND
Fastening TypeLatch Holder
FeaturesClosed End
Height12.54?mm?[?.494?in?]
Housing ColorRed
Housing MaterialNylon 6/6
Insertion ForceStandard
Length12.7?mm?[?.5?in?]
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.3-647000-4
Manufacturer Standard L.21 Weeks
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWith
Mating Retention TypeLatch
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line),.
Number of Cavities4
Number of Positions4
Number of Rows1
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage250
PackageBulk
Packaging MethodBag/Box
Packaging Quantity200
Panel GasketNo
Panel MountNo
Panel Mount FeatureWithout
Part StatusActive
Pitch0.100" (2.54mm)
Product StatusActive
Product StyleAssembly
Product TypeConnector
Row Spacing-
SealableNo
SeriesMTA-100
ShapeRectangular
ShieldedNo
Termination Method to W.Insulation Displacement.
UL File NumberE28476
UL Flammability RatingUL 94V-2
UL RatingRecognized
Width21.4?mm?[?.843?in?]
Wire Gauge22 AWG
Wire Size.3 ? .4, 22
Wire TypeDiscrete or Ribbon Cable
Wire/Cable TypeStranded

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomExcessParts.Net3-647000-40.26198TE CONNECTIVITY0.26 @ 1
WaldomTE CONNECTIVITY AMP BRAND 3-647000-40.61902805TE CONNECTIVITY/AMP BRAND0.61 @ 90
thumbzoomNewark74K24880.75711AMP - TE CONNECTIVITY0.757 @ 1
Onlinecomponents.com3-647000-40.88123703TE Connectivity / AMP Brand0.88 @ 1
TE Connectivity3-647000-41.1660711511TE Connectivity (TE)1.16607 @ 1
thumbzoomZoroG4009283521.18784Te Connectivity1.18 @ 7
thumbzoomDigi-Key18636561.26117466TE Connectivity AMP Connectors1.26 @ 1
AmazonTPB00FRBR43S5.991842TE Connectivity / AMP Brand5.99 @ 1
