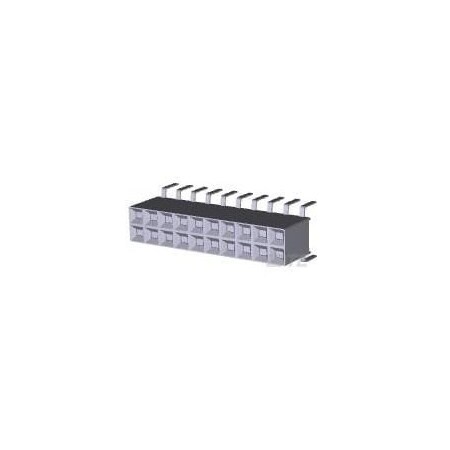

TE Connectivity 5-534267-2

B00KSQ06JQ

TE Connectivity Part Number 5-534267-2

TE Connectivity Part Number 5-534267-2zoom

Attributes

Key Value
Alternate Part No.571-5-534267-2
Applications-
BrandTE Connectivity / AMP
Connector TypeReceptacle, Bottom or T.
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Length - Post0.125" (3.18mm)
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeFemale Socket
Country of Origin (subj.China
Current Rating2 A
Current Rating (Amps)-
Fastening TypePush-Pull
Features-
Housing MaterialPolyester
Ingress Protection-
Insulation ColorBlack
Insulation Height0.265" (6.73mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerTE Connectivity
Manufacturer Part No.5-534267-2
Mated Stacking Heights-
Material Flammability R.-
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Positions20
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Operating Temperature R.- 65 C to + 105 C
PackagingTube
Part StatusActive
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product TypeHeaders - Socket
Row Spacing - Mating0.100" (2.54mm)
SeriesAMPMODU MOD IV
StyleBoard to Board
TerminationSolder
Termination StyleThrough Hole
TradenameAMPMODU
TypePCB Receptacle
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5-534267-22.45446813TE CONNECTIVITY/AMP BRAND2.45 @ 22
Onlinecomponents.com5-534267-22.5211126TE Connectivity / AMP Brand2.52 @ 10
Newark18R93682.91110010AMP - TE CONNECTIVITY2.91 @ 1000
us.rs-online.com720475303.55110010TE Connectivity3.55 @ 1100
thumbzoomZoroG7010437473.7855010Te Connectivity3.78 @ 550
thumbzoomswatee.com5-534267-24.551411TE Connectivity4.55 @ 10
AmazonSCB07KW81B2C47.56110TE Connectivity / AMP47.56 @ 10
