TIMKEN SCJT 5/8

mpnSCJT 5/8
brandname: Timken
manufacturername: Timken

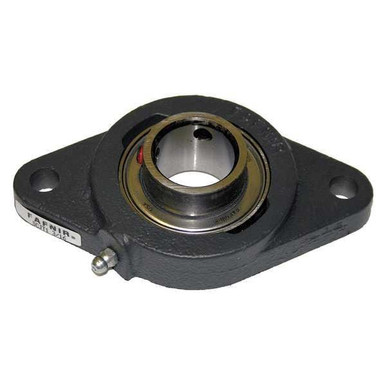

Flange Bearing, 2-Bolt, Ball, 5/8" Bore

Brand: TIMKEN
PartNumber: SCJT 5/8
PackageQuantity: 1
Manufacturer: TIMKEN
Label: TIMKEN

Attributes

Key	Value
Bearing Housing Materia.	Cast Iron
Bearing Insert Material	52100 Chrome Steel
Bearing Insert Type	Ball
Bearing Lubrication	Mobil Polyrex EM or NLG.
Bearing Material Grade	52100
Bolt Center-to-Center L.	3 in
Bolt Hole Center-to-Cen.	3 in
Bolt Size	3/8 in
Bolt Spacing	0 Inch \| 0 Millimeter
Bore Dia.	5/8 in
Bore Diameter	5/8 in
Bore Type	Cylindrical
Brand	TIMKEN
Cartridge Pilot Diameter	0 Inch \| 0 Millimeter
Category - BDI	31171501
Closure	Double Sealed
Color	Black
Country of Origin (subj.	Multiple
Current Stock	15
Description:	Ball Flange Unit
Dimension A	45/64 in
Dimension B	15/16 in
Dimension E	1 in
Dimension F	31/32 in
Dimension H	3 7/8 in
Dimension J	3 in
Dimension L	2 3/8 in
Dimension N	25/64 in
Dynamic Load Capacity	2,360 lb
EAN	M06110
Expansion / Non-expansi.	25/64 Inch
Finish	Uncoated, Powder Coated
Flange Mounting Type	2-Bolt
Flange Thickness	0.437 in
Harmonized Tariff Code	Bearing
Housing Configuration	No Pilot
Housing Material	Cast Iron, Non-expansion
Housing Material Finish	Powder Coated
Housing Style	Ball Bearing
Housing Type	Rhombus
Inch - Metric	Single Row \| Normal Dut.
Included Bearing	GYA010RRB
Inner Ring Width	0.937 in
Insert Part Number	Double Land Riding Rubb.
International Shipping	No
Item	2 Bolt Flange Bearing
Keyword String	SCJT 5/8
Length Thru Bore	0.625 Inch \| 15.875 Mil.
Load Capacity	2400 lb Dynamic/1100 lb.
Locking Device	Set Screw
Locking Type	Set Screw
Long Description	3 Inch \| 76.2 Millimeter
Lubricant Material	NLGI #2 Equivalent
Lubrication Openings	One Zirc Fitting
Manufacturer	TIMKEN CO
Manufacturer Item Number	2 Bolt Flange Block; 5/.
Manufacturer Name	N/A
Manufacturer URL	0.75
Maximum Speed	7370 rpm, 8,800 RPM
Maximum Temperature	200 Degrees F
MFG Part #:	SCJT 5/8
Minimum Buy Quantity	0.34
Minimum Temperature	-65 Degrees F
Mount Hole Center-to-Ce.	3 in
Mount Hole Size	0.394 in
Mounting Bolt Size	3/8 in
Mounting Bolts	Yes
Mounting Method	2 Bolt Flange Block
Mpn	SCJT 5/8
Nominal Bolt Circle Dia.	0.938 Inch \| 23.825 Mil.
Noun	Flanged
Number of Mount Holes	2
Number of Mounting Holes	Set Screw
Other Features	Flange Block
Overall Depth	1 in
Overall Height	2-3/8 in, 3 7/8 in
Overall Length	2 3/8 in
Overall Length/Diameter	3-7/8 in
Overall Width	1 in
Pilot Configuration	Inch
Product Group - BDI	2
Relubricatable	GYA010RRB
Rolling Element	Cast Iron
Rolling Element Rows	1
Seal Type	Molded Shroud; Contact
Seals	1 Piece Solid
Series	SCJT
Shaft Locking Type	Set Screws
SKU	ZO-G8204244
Static Load Capacity	1,060 lb
Static Radial Load Capa.	1,056.654 lbf
SubCategory	Power Transmission
Supplier:	TIMKEN CO
System of Measurement	Inch
Temp. Range	-65 Degrees to 200 Deg.
Temperature Rating	-30 to 275 deg F
Type	Normal Duty Standard
UNSPSC	8483.20.40.40
UPC	087796056541
UPC:	087796056541
Weight / Kilogram	0087796056541
Weight / LBS	3 Inch \| 76 Millimeter

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
BDI Express	SCJT 5/8	43.06615077	1	4		TIMKEN	0.748	43.06615077 @ 1
MRO Supply	5069489	47.41	1	In Stock	14	Timken	0.82	47.41 @ 1
Zoro	G8204244	65.0	1	28		Timken	0.88	65.0 @ 1
motionindustries.com	00591005	74.03	1	In Stock		Timken (Fafnir)		74.03 @ 1
kscdirect.com	TIM SCJT 5/8	78.78	1	In Stock		TIMKEN CO		78.78 @ 1
simsupply.com	ZO-G8204244	82.78	1	15		Timken		82.78 @ 1
cbtcompany.com	SCJT 5/8	87.53	1	In Stock		Timken		87.53 @ 1
