Walter Tools CCGT09T301-FN2 WNN10

B08XP21YC7

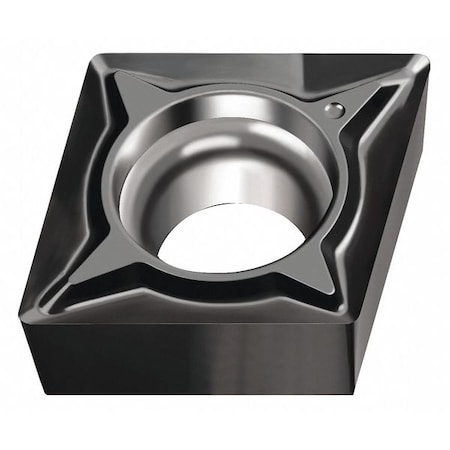

Diamond Turning Insert,CCGT,Carbide

Diamond Turning Insert,CCGT,Carbidezoom

Attributes

Key Value
ANSI CodeCCGT3(2.5)0.2-FN2 WNN10
ANSI NumberCCGT3(2.5)0.2-FN2 WNN10
Cast Iron (K) Compatibi.No
Chip-BreakerYes
Chip-Breaker CodeFN2
Clearance Angle7 Degrees
CoatingUncoated
Corner Radius.2
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length9.67mm
Depth of Cut0.10 to 1.50mm
Finish - MachiningTiAlN
For Use WithToolholders, Boring Bars
GradeWNN10
Hardened (H) Compatibil.No
Included Angle80 Degrees
Inscribed Circle3
Insert ApplicationFinishing
Insert CodeCCGT32.5.2
Insert Holding Type40 Degrees to 60 Degre.
Insert MaterialCarbide
Insert ShapeDiamond
Insert Size32.50.2
Insert StyleCCGT
Insert Thickness0.1560"
ISO NumberCCGT09T301-FN2 WNN10
ItemDiamond Turning Insert
Manufacturer GradeWNN10
MaterialCarbide
Material - MachiningCarbide
Measurement SystemFractional Inch
Mounting Hole Dia.0.173"
Mounting StyleScrew
No. of Edges2
Non Ferrous (N) Compati.Yes
Nose Radius0.004"
Number of Cutting Edges2
Primary Material Applic.Aluminum, Brass, Bronze.
Primary Material Applic.N
RakePositive
Relief Angle7 Degrees
ShapeRhombic
Stainless (M) Compatibi.Yes
Steel (P) CompatibilityYes
Super Alloy (S) Compati.Yes
Thickness2.5
Workpiece CompatibilityNonferrous (N), Stainle.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG487102319.01010Walter Valenite0.0919.0 @ 10
