WEG 00518OS1CCDOL184T

B08V5C5BFP

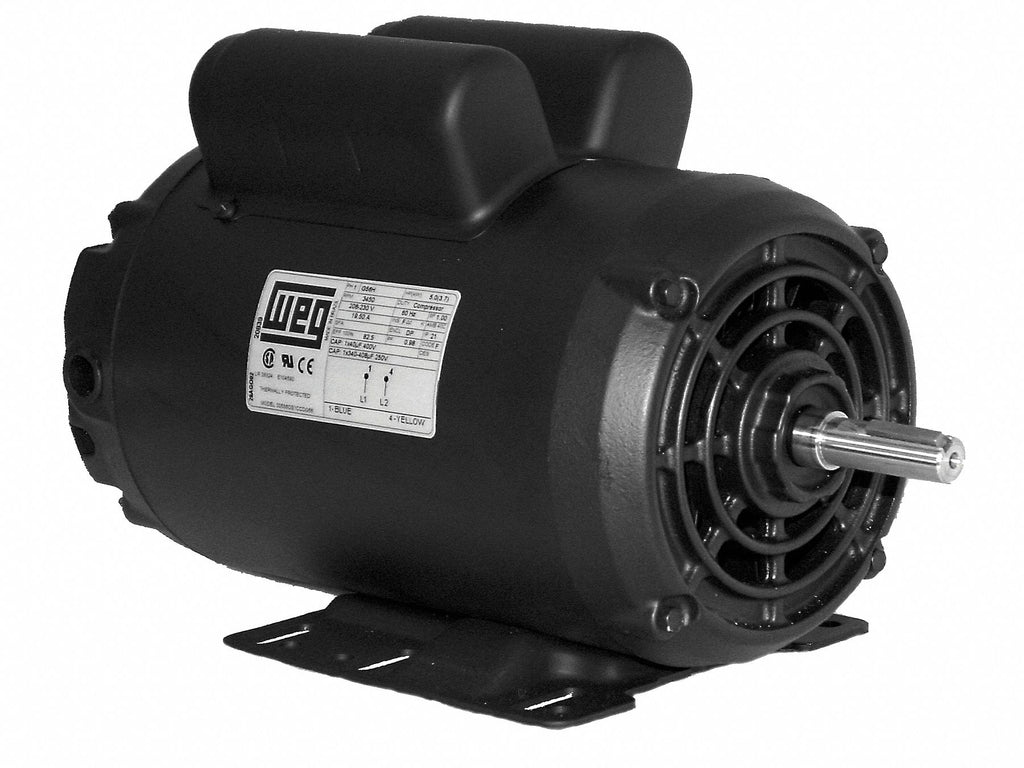

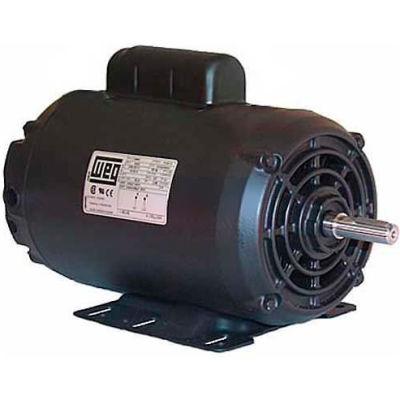

Weg 5 HP Air Compressor Motor, Capacitor-Start/Run, 1745 Nameplate RPM, 208-230 Voltage, Frame 184T - 00518OS1CCDOL184T

Weg 5 HP Air Compressor Motor, Capacitor-Start/Run, 1745 Nameplate RPM, 208-230 Voltage, Frame 184T - 00518OS1CCDOL184Tzoom

Attributes

Key Value
Amperage Rating23.5 to 21.5 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BrandWEG
Capacitor IncludedYes
ClassificationCompressor Duty
CompositionCast Iron
ConditionNew
ConstructionCast Iron
Country of OriginVaries
Current Stock38
Degree of ProtectionIP55
Description:MOTOR 5HP 4P 184T WFA1
Dimension C14.875 in
Dimensions14-7/8 in L
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency %82.5 %
EnclosureODP, Open, Drip Proof, .
Enclosure TypeOpen Drip-Proof, Open/D.
Estimated Weight98.00
Family SeriesWEG Electric Motors
FL Amps21.5
FL Efficiency82.5
FlangesWithout
Frame184T
Frame RemarksFooted, Compressor Duty
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps23.0-20.7, 21.5 FLA
Full Load Efficiency82.5
Gross Weight0 lbs
Hertz60, 60 Hz
Horsepower5 hp
HP5
Hz60
IncludesCapacitor
Ins. ClassF
Insulation ClassClass F
International ShippingNo
Is_MotorYes
ItemCommercial Duty Air Com.
Item ConditionFactory New
Item Number00518OS1CCDOL184T
Item?13L301
Kilowatts3.7 kW
Length Less Shaft12 1/8 in, 12-1/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00518OS1CCDOL184T
Manufacturers Part Numb.00518OS1CCDOL184T
MaterialCast Iron, HAWA
Max. Ambient Temp.40 ?C
MFG Part #:00518OS1CCDOL184T
Mfr. Model?00518OS1CCDOL184T
Model11206171
Motor ApplicationAir Compressor
Motor BearingsBall
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFoot, Rear/Foot
Motor RPM 60 Hertz1800 rpm
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionManual
MountingFoot Mount, Foot-mounte.
Mounting LocationRigid
Mounting TypeFoot Mount, Footed
Mpn00518OS1CCDOL184T
Nameplate RPM1,750
NEMA Frame184T
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency80 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating25 HP
Overall Length14-7/8 in, 14 7/8 in
Part Number00518OS1CCDOL184T
Phase1, Single, 1 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,800 RPM, 1800 rpm, 18.
RPM Range1,701-1,800, 1701-1800 .
Service Factor1.15
Shaft Dia.1 1/8 in, 1-1/8 in
Shaft Length2-3/4 in, 2 3/4 in
Shaft Size1-1/8 in Dia x 2-3/4 in.
SKUZO-G4267216
Speed1745 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsNEMA MG-1
SubCategoryMotors/Ac Motors
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
TypeCompressor Duty Motors
UNSPSC26101602
UPC:7890355757925
Voltage208-230, 208-230 V, 208.
Voltage (AC)208 VAC
Voltage Compatibility115/208-230V AC, 208-23.
Volts208/230
Weight115 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB007PCZJZC395.951In Stock1WEG395.95 @ 1
thumbzoomelectricmotorwholesale.com00518OS1CCDOL184T450.01In StockWEG93.2450.0 @ 1
thumbzoomcompressor-source.com00518OS1CCDOL184T539.9513WEG539.95 @ 1
thumbzoomWalker Industrial00518OS1CCDOL184T540.751In Stock17WEG540.75 @ 1
thumbzoomZoroG4267216540.75139Weg105.0540.75 @ 1
thumbzoomMRO Supply1315089569.411In StockWEG569.41 @ 1
thumbzoommotorsandcontrol.com00518OS1CCDOL184T571.261In StockWEG Electric98.0571.26 @ 1
thumbzoomGalco00518OS1CCDOL184T-WEG592.191In StockWEG Electric592.19 @ 1
thumbzoomDealers Electric00518OS1CCDOL184T592.481In StockWeg98.0592.48 @ 1
kscdirect.comWEG 00518OS1CCDOL184T613.711In StockWEG ELECTRIC CORP613.71 @ 1
thumbzoomindustrialrefrigerationparts.com00518OS1CCDOL184T630.791In StockWEG630.79 @ 1
thumbzoomRadwell00518OS1CCDOL184T660.01In StockWEG660.0 @ 1
thumbzoomvfds.com00518OS1CCDOL184T721.01In StockWEG721.0 @ 1
thumbzoomGlobal IndustrialWBB880827800.01In StockWEG800.0 @ 1
thumbzoomPurvis00518OS1CCDOL184T800.321In StockWEG800.32 @ 1
thumbzoomsimsupply.comZO-G4267216807.761In StockWeg807.76 @ 1
Grainger13L301855.641In StockWEG115.0855.64 @ 1
thumbzoomNational Supply NetworkB880827950.791In StockWeg Electric Motors950.79 @ 1
thumbzoomsustainablesupply.comC1542587952.661In StockWEG105.0952.66 @ 1
thumbzoomRaptor SuppliesAA4ZLF1174.81531051In StockWEG1174.8153105 @ 1
