WEG 00718OS1CCD215T

B08V5G71ML

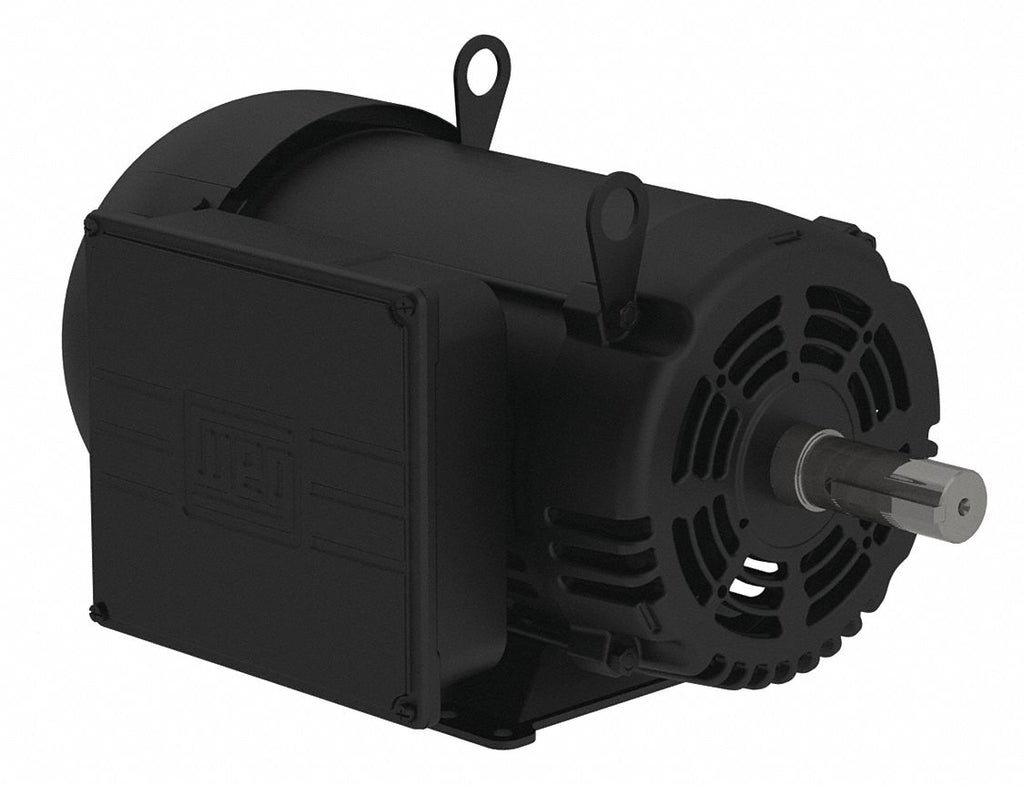

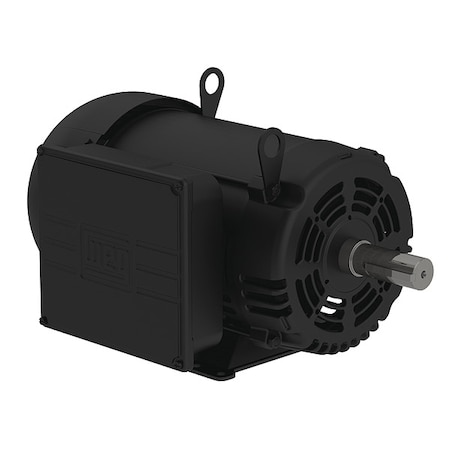

Weg 7-1/2 HP Air Compressor Motor, Capacitor-Start/Run, 1745 Nameplate RPM, 208-230 Voltage, Frame 213/5T - 00718OS1CCD215T

Weg 7-1/2 HP Air Compressor Motor, Capacitor-Start/Run, 1745 Nameplate RPM, 208-230 Voltage, Frame 213/5T - 00718OS1CCD215Tzoom

Attributes

Key Value
Amperage Rating31.3 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BrandWEG
Capacitor IncludedYes
ClassificationCompressor Duty
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Country of Origin (subj.Multiple
Current Stock17
Degree of ProtectionIP21
Description:MOTOR 7.5HP 4P 213/5T W.
Dimensions19.66 in L
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
EfficiencyLeft position
EnclosureODP, Open, F-1
Enclosure TypeOpen Drip-Proof
Estimated Weight132.00
Family SeriesWEG Electric Motors
FL Amps31.3
FL Efficiency84.5
Frame215T, 213/5T
Frame RemarksFooted, Compressor Duty
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps33.8-32.2
Gross Weight0 lbs
Hertz60
Horsepower7-1/2 hp, 7.5 hp
HP7 1/2, 7.5
Hz60
IncludesCapacitor
Ins. ClassF
Insulation ClassClass F
International ShippingNo
ItemAir Compressor Motor
Item ConditionFactory New
Item Number00718OS1CCD215T
Length Less Shaft16 5/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00718OS1CCD215T
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C, 40 Degre.
MFG Part #:00718OS1CCD215T
Model11060535
Motor ApplicationAir Compressor
Motor BearingsBall
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFoot, Rear/Foot
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCCWSE
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeFoot Mount, Footed
Mpn00718OS1CCD215T
Nameplate RPM1,760
NEMA Frame215T
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency81.5 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating7.5 hp
Overall Length19 11/16 in
Part Number00718OS1CCD215T
Phase1, Single, 1 ph
Product TypeGeneral Purpose
RotationCCWSE
RPM1,800 RPM, 1800
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Shaft Size1-3/8 in Dia x 3-3/8 in.
SKUZO-G4269072
Speed1800 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsUL Recognized, CSA Cert.
SubCategoryMotors/Ac Motors
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Temperature Rating40 deg C
Terminal BoxWithout
UPC00776115167548
UPC:7890355447345
Voltage208-230, 208-230V AC, 2.
Voltage (AC)208 VAC
Voltage Compatibility115/208-230V AC, 208-23.
Volts208/230
Weight121 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Global IndustrialWBB880761426.951In Stock18WEG426.95 @ 1
thumbzoomelectricmotorwholesale.com00718OS1CCD215T559.01In StockWEG120.0559.0 @ 1
AmazonTPB07DC4YYSW699.01In Stock2Weg Electric Motors699.0 @ 1
thumbzoomcompressor-source.com00718OS1CCD215T699.951In StockWEG699.95 @ 1
thumbzoomWalker Industrial00718OS1CCD215T720.751In Stock17WEG720.75 @ 1
thumbzoomMRO Supply1315095758.951In StockWEG758.95 @ 1
thumbzoommotorsandcontrol.com00718OS1CCD215T761.421In StockWEG Electric132.0761.42 @ 1
thumbzoomGalco00718OS1CCD215T-WEG789.311In StockWEG Electric789.31 @ 1
thumbzoomDealers Electric00718OS1CCD215T789.691In StockWeg132.0789.69 @ 1
kscdirect.comWEG 00718OS1CCD215T818.01In StockWEG ELECTRIC CORP818.0 @ 1
thumbzoomindustrialrefrigerationparts.com00718OS1CCD215T828.931In StockWEG828.93 @ 1
thumbzoomRadwell00718OS1CCD215T880.01In StockWEG880.0 @ 1
thumbzoomZoroG4269072922.15124Weg131.0922.15 @ 1
thumbzoomvfds.com00718OS1CCD215T961.01In StockWEG961.0 @ 1
grainger.caWWG13L3031042.344512721In StockWEG131.01042.34451272 @ 1
thumbzoomPurvis00718OS1CCD215T1066.721In StockWEG1066.72 @ 1
thumbzoomsustainablesupply.comC15425891245.391In StockWEG131.01245.39 @ 1
thumbzoomsimsupply.comZO-G42690721307.291In StockWeg1307.29 @ 1
thumbzoomNational Supply NetworkB8807611310.61In StockWeg Electric Motors1310.6 @ 1
thumbzoomRaptor SuppliesAA4ZLH1535.80874851In StockWEG1535.8087485 @ 1
