- mpn609
- brandname: De-Sta-Co
- manufacturername: De-Sta-Co

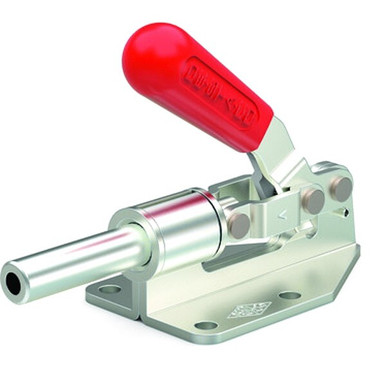

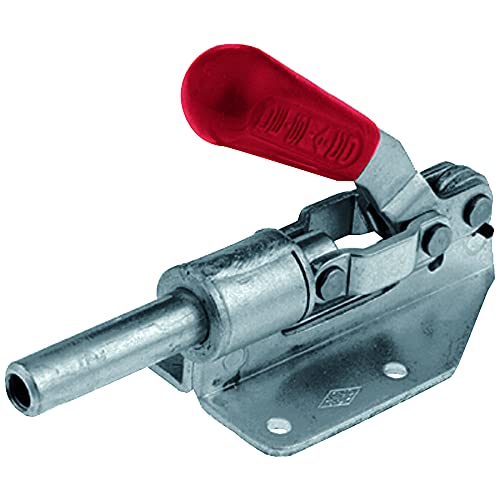

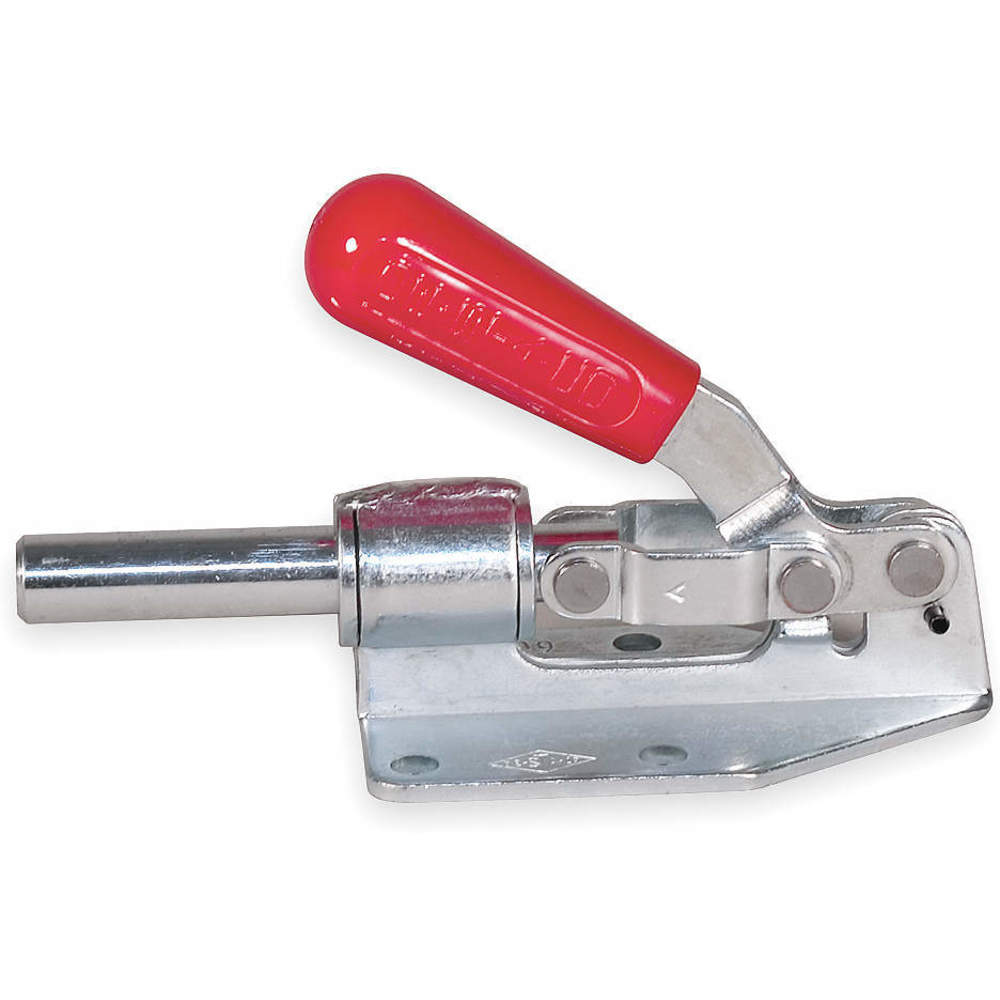

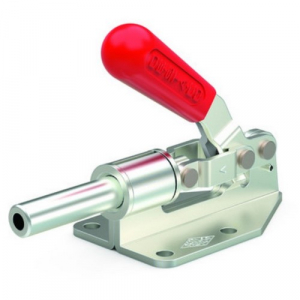

DESTACO 609 Manual Base Mount Push Pull Toggle Clamps; Holding Capacity 1334.5 N | 300 lbf, Flanged Base, Plunger Travel 31.8 mm
- Brand: Destaco
- PartNumber: 609
- Manufacturer: Destaco
- Label: Destaco
Attributes
| Key | Value |
|---|
| Accommodates Workpiece . | No |
| Application | Assembly and Test, Tens. |
| Arm Length | 1.88 in |
| Available | Yes |
| Base Length | 91.4, 3.600 |
| Base Mounting Style | Flange |
| Base Width | 55.6, 2.190 |
| Body Material | Steel |
| Brand | Destaco, De-Sta-Co |
| Current Stock | 197 |
| Ef:Af Exerting Force: A. | 36:1/47:1 |
| Exerted Force : Applied. | 47:1 |
| Exerted Force : Applied. | 36:1 |
| Fastener Thread Size | 5/16 in |
| Handle Movement Action | Forward Action |
| Handle Orientation | Horizontal |
| Height to Plunger Center | 24.6 |
| Height Under Arm | 0.97 in |
| Holding Capacity | 1334.5, 300, 400 lbs. |
| Holding Capacity - Maxi. | 300 lbf |
| Imperial or Metric Prod. | Imperial |
| Includes | Ergonomic Grip |
| Includes Locking Handle | No |
| Includes Spindle | No |
| International Shipping | No |
| Item | Straight Line Clamp |
| Item Weight | 0.90 lbs per EA |
| Lead Time | Expected to ship in 1-2. |
| Locking Position | Extended, Retracted |
| Maximum Holding Capacit. | 300 |
| Model Number | 609 |
| Mount Type | Flanged Base |
| Mounting Holes Center t. | 1.62 in |
| Mounting Holes Center t. | 1.38 in |
| Mpn | 609 |
| Overall Depth | 2.19 in |
| Overall Height | 82.6, 3.250, 2-5/8" |
| Overall Length | 139.2, 5-1/2", 5.480, 5. |
| Plunger | Round |
| Plunger Diameter | 11.2, 0.440 |
| Plunger Height | 0.97 in |
| Plunger Height (in) | 0.970 |
| Plunger Shape | Round |
| Plunger Thread | 5/16-18, 5/16"-18 |
| Plunger Thread Type | Internal Thread |
| Plunger Travel | 1-1/4", 31.8 |
| Plunger Travel (in) | 1.25 |
| Plunger Travel1 | 1.25 in |
| Preferred Market | Global |
| Product Family | Manual Clamping |
| Product Function | Clamping |
| Product Group | Straight-line Action Cl. |
| Product Series Descript. | Straight Line Action Cl. |
| Product Type | Standard |
| Recommended Spindle Man. | 207203 |
| SKU | ZO-G3212264 |
| Spindle (Recommended) | 207203 |
| Spindle Included? | No |
| Standard Material | Steel |
| SubCategory | Machining |
| Tip Diameter | 1/2 in |
| Toggle Lock Plus | No |
| Weight (lb) | 0.88 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | kinequip.com | 609 | 24.64 | 1 | 10 | | Destaco | | 24.64 @ 1 |
 | freertool.com | DE-STA-CO-609 | 26.67 | 1 | In Stock | | DESTACO | 0.88 | 26.67 @ 1 |
| reidsupply.com | TC-609 | 28.43 | 1 | 120 | | Destaco | | 28.43 @ 1 |
 | KBC Tools | 1-910-56090 | 32.51 | 1 | 24 | | DESTACO | 0.9 | 32.51 @ 1 |
 | simsupply.com | ZO-G3212264 | 33.06 | 1 | 197 | | De-Sta-Co | | 33.06 @ 1 |
 | primebuy.com | 609 | 33.07 | 1 | In Stock | | Destaco | | 33.07 @ 1 |
| grainger.ca | DSC609 | 33.36530182 | 1 | In Stock | | DE-STA-CO | 0.85 | 33.36530182 @ 1 |
 | bscsource.com | 06966477 | 33.39 | 1 | In Stock | | De-Sta-Co | | 33.39 @ 1 |
 | National Supply Network | 6966477 | 40.24 | 1 | In Stock | | De-Sta-Co | | 40.24 @ 1 |
 | Raptor Supplies | AC8PKY | 75.2535225 | 1 | In Stock | | DESTACO | | 75.2535225 @ 1 |
