- mpn543-781
- brandname: Mitutoyo
- manufacturername: Mitutoyo

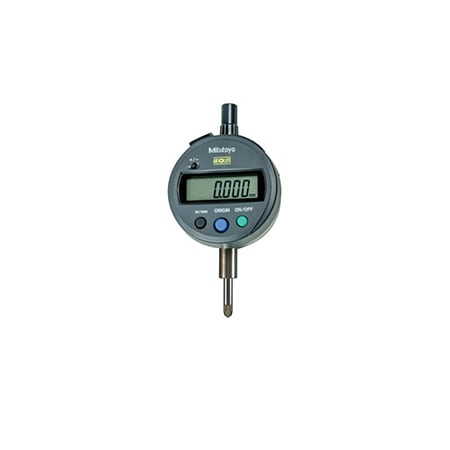

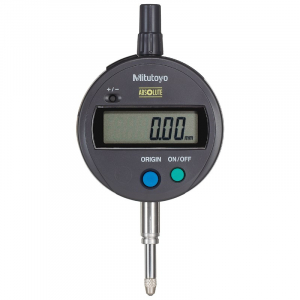

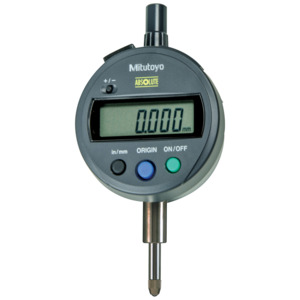

Mitutoyo 543-781 Digimatic Indicator ID-S
- Brand: Mitutoyo
- PartNumber: 543-781
- Model: 543-781
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Mitutoyo
- Label: Mitutoyo
Attributes
| Key | Value |
|---|
| Accuracy | ? 0.02 mm, ?.02mm, +/-0. |
| Application | Standard Type |
| Availability | Call for Availability |
| Back Type | Lug Back, Lug-On-Center |
| Battery | SR44 (1 pc.) 938882 |
| Battery life | Approx. 20,000 hours un. |
| Battery life(Time) | Approximately 20000 |
| Battery Size | SR44 |
| Battery Type | SR44 |
| Brand | Mitutoyo |
| Compatible Data Output . | 905338 |
| Contact Point Dia. | 0.375 in |
| Descriptions | Lug Back, IP42 |
| Dial Diameter | 59mm |
| Dial Size | 66 mm W x 83.2 mm H |
| Dimension Type | Inch/Metric |
| Display | LCD |
| Display Type | LCD |
| Included Certification | Certificate of Inspecti. |
| ISO/JIS type | Yes |
| Item | Digimatic Indicator |
| Item Weight | 0.50 lbs per EA |
| Length Standard | Absolute electrostatic . |
| Long Form Calibration C. | No |
| Manufacturer | Mitutoyo America Corpor. |
| Max Range | 12.7 mm |
| Max Response Speed | Unlimited |
| Max. Measuring Force | 1.5 N |
| Maximum Measurement - I. | 0.5 in |
| Measured force(N) | 1.5 or Less |
| Measurement Type | Metric |
| Measuring Force | 1.5 or lessN, 1.5N or l. |
| Mfr. Model # | 543-781 |
| Min Range | 0 mm |
| Minimum Measurement - I. | 0 in |
| Model Number | 543-781 |
| Non-Magnetic | No |
| Number of Indicators | 1 |
| Range | 0-12.7mm, 0 in to 0.5 in |
| Resolution | .01mm, 0.01 mm, 0.0005 . |
| Return error(?m) | 20 or Less |
| Scale interval minimal . | 0.01 |
| Series | Series 543 |
| Ship Weight (lbs.) | 1 |
| SPC Output | Yes |
| Standards | C0920, DIN40050 Part 1,. |
| Stem Dia. | 0.375 in |
| Stem Diameter | 8mm, M2.5 x .45 Thread |
| Stem diameter | 8 mm |
| Stem Thread Size | #4-48 UNF |
| Thread type | M2.5 X 0.45 |
| Unit | EA |
| Units | Metric |
| Variable Resolution | No |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonSC | B00JDHNZ2G | 162.74 | 1 | In Stock | | Mitutoyo | | 162.74 @ 1 |
| Transcat | 543-781 | 192.96 | 1 | In Stock | | MITUTOYO | | 192.96 @ 1 |
| Guardian | MITUTOYO543-781 | 201.0 | 1 | In Stock | | Mitutoyo | | 201.0 @ 1 |
| Newark | 68W9744 | 201.0 | 1 | In Stock | | MITUTOYO | | 201.0 @ 1 |
 | jensentools.com | 10140112 | 201.0 | 1 | In Stock | | Mitutoyo | | 201.0 @ 1 |
 | primebuy.com | 543-781 | 201.1 | 1 | In Stock | | Mitutoyo | | 201.1 @ 1 |
 | Zoro | G7781431 | 203.99 | 1 | In Stock | | Mitutoyo | 0.5 | 203.99 @ 1 |
 | KBC Tools | 1-808-543781 | 209.0 | 1 | In Stock | | MITUTOYO | 0.5 | 209.0 @ 1 |
 | grovesindustrial.com | MTI 543-781 | 218.17 | 1 | In Stock | | Mitutoyo | 1.0 | 218.17 @ 1 |
 | Misumi USA | 543-781 | 222.52 | 1 | In Stock | 72 | MITUTOYO | | 222.52 @ 1 |
 | bscsource.com | 543781 | 229.99 | 1 | In Stock | | Mitutoyo | | 229.99 @ 1 |
