- mpnLCC4-38DW-L
- brandname: Panduit
- manufacturername: Panduit

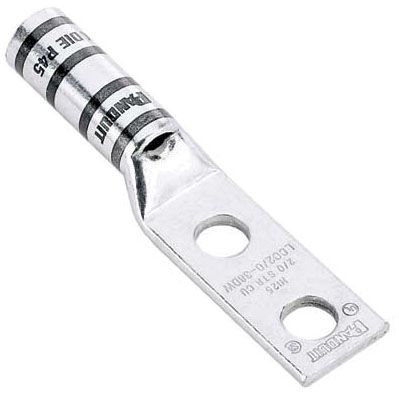

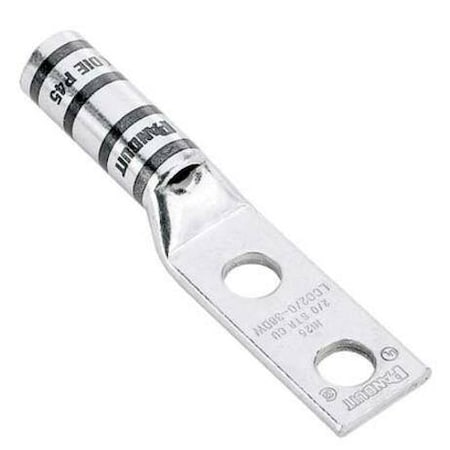

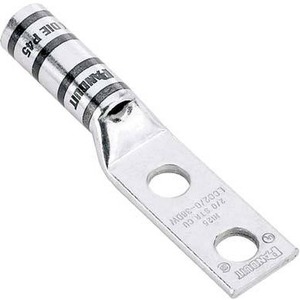

Panduit LCC4-38DW-L Code Conductor Lug, Two Hole, Long Barrel With Window, #4 - 3 AWG STR, #2, AWG SOL Copper Conductor Size, 3/8" Stud Size, Gray Color Code, 1.00" Stud Hole Spacing, 1-1/8" Wire Strip Length, 0.08" Tongue Thickness, 0.62" Tongue Width, 1.05" Neck Length, 3.09" Overall Length
- Brand: Panduit
- PartNumber: LCC4-38DW-L
- Model: LCC4-38DW-L
- Color: Gray
- Size: 3/8
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| amperage rating | Panduit?? |
| Application | Tin-Plated |
| Approvals | CSA, UL |
| Base Product Number | LCC4 |
| Brand | Panduit, Pan-Lug?, Pand. |
| Brand Name | Panduit |
| Cable Size | 4 to 3 AWG STR, 2 AWG S. |
| Carton | 50 |
| Catalog Number | LCC4-38DW-L |
| Category | Connectors, Interconnec. |
| Category Description | Comp & Mech Lugs and Bu. |
| Classification | Comp & Mech Lugs and Bu. |
| Color | Gray |
| Color Code | Gray |
| Color Family | Gray |
| Conductor Material | Copper |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Description | 2HL Cu LNG BRL Lug |
| Diameter - Barrel ID | 0.280" (7.11mm) |
| Diameter - Barrel OD | 0.380" (9.65mm) |
| Diameter - Ring ID | 0.410" (10.41mm) |
| Die Color | Gray |
| ECCN | EAR99 |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| extra long description | PAN LCC4-38DW-L Pan-Lug. |
| Family Series | Panduit Terminals, Pan-. |
| Features | Corrosion Resistant, - |
| Finish | Tin-Plated |
| For Stud Size | 3/8 in |
| for use with | Stranded Copper Conduct. |
| Gross Weight | 2.24 lbs |
| GTIN | 00074983797851 |
| Insulated/Non-Insulated | Non-Insulated |
| Insulation | Non-Insulated |
| Insulation Color | Gray (Code) |
| Item | Lug Compression Connect. |
| Item Number | LCC4-38DW-L |
| Item Type | Copper Compression Conn. |
| Length | 3.09", 3.1 |
| Length - Overall | 3.090" (78.49mm) |
| Limited Warranty | 1 Year |
| Long Description | Long Barrel Lug, #4 AWG. |
| Lug Wire Size | 4-3 AWG |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCC4-38DW-L |
| Manufacturer Website Ad. | http://www.panduit.com |
| Manufacturers Part Numb. | LCC438DWL |
| Material | Copper, Copper - Conduc. |
| Material/Composition | Copper |
| Max Conductor Range | 2 AWG |
| Maximum Conductor Size | #3 AWG (Stranded);#2 AW. |
| Maximum Operating Tempe. | +90 ?C |
| Maximum Voltage Rating | 35 kV |
| media | Yes |
| Mfr | Panduit Corp |
| Min Conductor Range | 4 AWG |
| Minimum Conductor Size | #4 AWG (Stranded) |
| Mounting | 1.13 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 2 |
| Overall Length | 3.09 in |
| Package | Bulk |
| package quantity | 50 PK |
| Packaged Quantity | 50 |
| Product Name | Terminal Connector |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| Product Type | Long Barrel Lug, Termin. |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Short Description | Long Barrel Lug, Non-In. |
| Size | #4 ? #3 AWG Code STR, #. |
| Special Features | Long Barrel, Consult ca. |
| Standards Met | CSA Certified C22.2 No.. |
| Stud Hole Spacing | 1 in. |
| Stud Size | 3/8 in, 44628, 42.95 |
| Stud/Tab Size | 3/8 Stud |
| sub brand | Type LCC |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.080" (2.03mm) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Type | Compression Lug, Long B. |
| UNSPSC | 39121405 - Cable or wir. |
| UPC | 074983797851 |
| Weight | 1 lb/EA |
| Weight per each | 1 |
| Width | 0.62" |
| Width - Outer Edges | 0.620" (15.75mm) |
| Wire Gauge | 2-4 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Elliott Electric | LCC438DWL | 4.8709 | 1 | In Stock | | Panduit | 1.0 | 4.8709 @ 1 |
 | cbtcompany.com | LCC4-38DW-L | 5.21 | 1 | In Stock | | PANDUIT | | 5.21 @ 1 |
 | French Gerleman | PANDLCC438DWL | 6.08 | 1 | In Stock | | Panduit | | 6.08 @ 1 |
 | alldataresource.com | LCC4-38DW-L | 8.05 | 1 | In Stock | | Panduit | | 8.05 @ 1 |
| Digi-Key | 4565616 | 9.4 | 1 | 5 | | Panduit Corp | | 9.4 @ 1 |
| Onlinecomponents.com | LCC4-38DW-L | 9.55 | 1 | In Stock | | Panduit | | 9.55 @ 1 |
 | Newark | 52AH0903 | 10.01 | 1 | 2 | | PANDUIT | | 10.01 @ 1 |
 | Zoro | G0776050 | 10.56 | 1 | In Stock | 21 | Panduit | 2.25 | 10.56 @ 1 |
 | Galco | LCC4-38DW-L-PNDT | 11.59 | 50 | In Stock | | Panduit | 2.24 | 11.59 @ 50 |
 | Platt.com | 0691619 | 12.33 | 1 | In Stock | | Panduit | | 12.33 @ 1 |
 | crescentelectric.com | 133816 | 13.19 | 1 | In Stock | | Panduit | | 13.19 @ 1 |
| Airline Hydraulics | PANDUIT LCC4-38DW-L | 13.96 | 1 | In Stock | | Panduit Corp | | 13.96 @ 1 |
 | PCNation | 6LG615 | 411.55 | 1 | In Stock | | PANDUIT | 3.0 | 411.55 @ 1 |
 | gordonelectricsupply.com | LCC4-38DW-L | 610.0 | 1 | In Stock | 12 | PANDUIT | | 610.0 @ 1 |
 | turtle.com | PAN LCC4-38DW-L | 1365.25 | 1 | In Stock | | Panduit | | 1365.25 @ 1 |
| Graybar | 25072195 | 1513.0304 | 1 | In Stock | | Panduit | | 1513.0304 @ 1 |
