PRV AUDIO 6MB200V2

B07K8QT5GM

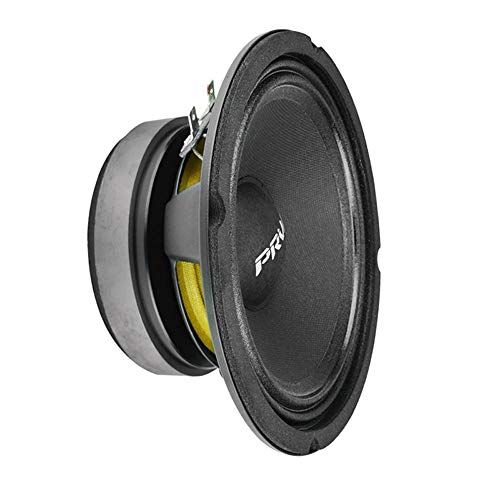

PRV AUDIO 6MB200 v2 6.5 Inch Speakers Midbass Woofer 8 Ohm, 100 Watts RMS, 200 Watts Program Power, 93.5 dB 1.5 in Voice Coil for Small Custom Enclosures Pro Car Audio System (Single)

PRV AUDIO 6MB200 v2 6.5 Inch Speakers Midbass Woofer 8 Ohm, 100 Watts RMS, 200 Watts Program Power, 93.5 dB 1.5 in Voice Coil for Small Custom Enclosures Pro Car Audio System (Single)zoom

Attributes

Key Value
# Mounting Holes8
Baffle Cutout Diameter5.63"
Basket / Frame MaterialSteel
BL Product (BL)7.05T?m
BrandPRV Audio
Compliance Equivalent V.0.15ft?
DC Resistance (Re)6.7?
Depth2.6"
Diaphragm Mass Inc. Air.11.57g
Electromagnetic Q (Qes)1.2
Frequency Response125 to 6,500Hz
Impedance8?
Maximum Linear Excursio.4.8mm
Mechanical Compliance o.0.144mm/N
Mechanical Q (Qms)20.81
Model6MB200 V2
Nominal Diameter6"
Overall Outside Diameter6.53"
Part Number294-3057
Power Handling (MAX)200 Watts
Power Handling (RMS)100 Watts
Resonant Frequency (Fs)123.28Hz
Sealed F3109.4Hz
Sealed Volume0.4ft?
Sensitivity93.5dB 2.83V/1m
Surface Area of Cone (S.154cm?
Total Q (Qts)1.13
Unit of MeasureEach
UPC602938022019
Voice Coil Diameter1.5"
Voice Coil FormerKapton? / Polyimide
Voice Coil Inductance (.0.25mH
Voice Coil Wire MaterialCopper
Weight3.7
