Schneider Electric ATS48C21Y

B00CONDNJG

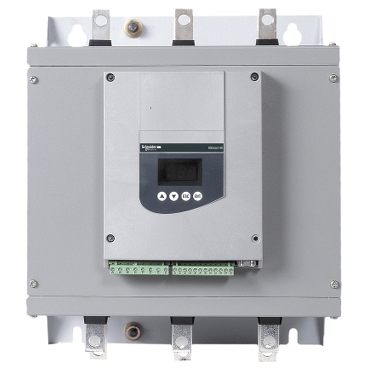

SCHNEIDER ELECTRIC ATS48C21Y Soft Start 208-690V AC210a Ats48

SCHNEIDER ELECTRIC ATS48C21Y Soft Start 208-690V AC210a Ats48zoom

Attributes

Key Value
Ambient air temperature.40?60 ?C (with current .
Ambient air temperature.-25?70 ?C
Analogue output typeCurrent output AO: 0-20.
ApplicationAsynchronous motors, He.
ApprovalsCCC, CSA, IEC 60947-4-2.
BrandSchneider Electric
BypassYes
Catalog NumberATS48C21Y
Communication data linkSerial
Communication PortModbus
communication port prot.Modbus
ConnectionIn the motor supply line
connector type1 RJ45
Control Voltage110 to 230V AC
Country of OriginID - Indonesia, Indones.
Country of Origin (subj.Multiple
Current Rating210 A
Depth265 mm, 10.43 in
device connectionIn the motor supply line
device short nameATS48
Discrete input logicPositive logic Stop, Ru.
Discrete input number5
Discrete input typePTC, 750 Ohm at 25 ?C
Discrete output number2
Discrete output type(LO1) logic output 0 V .
Display3 Seven -Segment display
ECCNEAR99
Electromagnetic compati.Conducted and radiated .
Enclosure RatingIP20, NEMA 1
Family SeriesSquare D Soft Starters
Frequency50/60 Hz
function availableExternal bypass (option.
Function TypeStart or Stop
Gross Weight46.595 lbs
GTIN03389110982404
Height380 mm, 14.96 in
HP @ 3 Phase - 208V60 hp
HP @ 3 Phase - 230V75, 75 hp
HP @ 3 Phase - 240V75 hp
HP @ 3 Phase - 460V150 hp, 150
HP @ 3 Phase - 480V150 hp, 150
HP @ 3 Phase - 575V200 hp
IncludesExclusive motor Torque .
Input Voltage208 to 690V AC
Inputs/Outputs4 Logic Inputs, 1 PTC P.
IP Rating20
ItemSoft Start
Item NumberATS48C21Y
Item TypeSoft starter;ATS48;1 RJ.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number116721
MarkingCE
Max Current180 A
Minimum switching curre.10 mA at 6 V DC for rel.
Motor power hp125 hp at 460 V for sev.
Motor power kW110 kW at 400 V for sta.
Net weight18.2 kg
Net Weight40.1238 lbs
Nominal Load Voltage208 V, 240 V, 380 V, 41.
Number of Units in Pack.1
Operating altitude<= 1000 m without derat.
Operating positionVertical +/- 10 degree
Output Current210 A
Output Power125 hp @ 3 Phase, 460V .
Output Voltage208 to 690V AC
Overall Depth10.43 in
Overall Height14.96 in
Overall Width12.60 in, 12.6 in
Package 1 Height43.000 cm
Package 1 Length51.000 cm
Package 1 Weight23.000 kg
Package 1 Width46.000 cm
PhaseThree
Physical interfaceRS485 multidrop
Power Supply208...690 V - 15...10 ,.
power supply frequency50?60 Hz ? 5?5 %
product certificationsDNV
Product destinationAsynchronous motors
Product or component ty.Soft starter
Product specific applic.Heavy duty industry and.
Product TypeSoft Start
Protection typePhase failure: line
Ramp Time1 to 60 sec.
Range of productAltistart 48
Relative humidity0?95 % without condensa.
SeriesAltistart ATS 48 Series.
Size10.43
Special FeaturesExternal bypass (option.
StandardEN/IEC 60947-4-2
StandardsC-tick, CCC, CSA Certif.
Start TypeTorque Control Start
Starting Torque0% to 400%
Stop Time1 to 60 sec
Sub BrandATS48
Temperature (F)14-104 ?F
Transmission rate4800, 9600 or 19200 bps
TypeHMI Control
Ue power supply voltage208?690 V ? 15?10 %
Unit Type of Package 1PCE
UNSPSC39121521
UPC785901982401
UPC Code785901982401
Use WithAsynchronous motors
Utilisation categoryAC-53A
Voltage Rating690 V, 177-759 V,50...6.
Warranty DescriptionContractual Warranty:18.
Width12.6 in, 320 mm
With Bypass / No BypassNo Bypass

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialrefrigerationparts.comATS48C21Y285.391In StockSchneider Electric285.39 @ 1
thumbzoommodiconpac.com68463139.01In StockSchneider Electric50.63139.0 @ 1
thumbzoomcappusa.com16816613572.831In StockSchneider Electric3572.83 @ 1
thumbzoomNex InstrumentATS48C21Y3606.01In StockSchneiderElectric3606.0 @ 1
thumbzoomblackhawksupply.comATS48C21Y3676.051In StockSquare D3676.05 @ 1
thumbzoomgordonelectricsupply.comATS48C21Y3945.01In Stock10SQUARE D3945.0 @ 1
thumbzoomGalcoATS48C21Y-SQD3953.9511Square D46.5953953.95 @ 1
thumbzoommostelectric.comATS48C21Y4066.611In StockSQUARE D/TELEMECANIQUE4066.61 @ 1
AmazonSCB0028YKH0E4080.251In StockSchneider Electric4080.25 @ 1
thumbzoomZoroG35558514344.391In Stock26Schneider Electric49.684344.39 @ 1
thumbzoomsustainablesupply.comC29267684379.41In StockSchneider Electric49.684379.4 @ 1
us.rs-online.com703337134640.171In StockSchneider Electric4640.17 @ 1
AmazonTPB007ID25J64846.511In Stock15Schneider Electric4846.51 @ 1
thumbzoomcrescentelectric.com1500135075.2811Schneider Electric5075.28 @ 1
Graybar220538135136.7681In StockSquare D (Schneider Electric)5136.768 @ 1
thumbzoomRaptor SuppliesAG7GFC6067.75800151In StockSCHNEIDER ELECTRIC6067.7580015 @ 1
grainger.caSQDATS48C21Y6475.583067521In StockSCHNEIDER ELECTRIC49.686475.58306752 @ 1
