SOLA-HD SDN20-24-100C

B00JV3IRCK

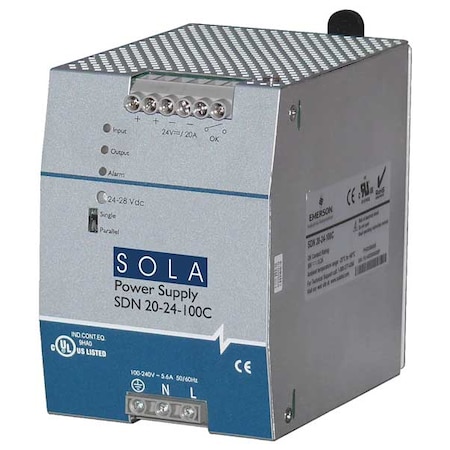

Sola/Hevi-Duty SDN20-24-100C DC Power Supply, 24 VDC, 20 Amp, 60 Hz

Sola/Hevi-Duty SDN20-24-100C DC Power Supply, 24 VDC, 20 Amp, 60 Hzzoom

Attributes

Key Value
AC Voltage - Input85 ~ 264 VAC
Amps20
ApplicationFor use in industrial a.
ApplicationsHazardous Locations, In.
Approval AgencyCE, cULus, cURus, EAC
ATEX DirectiveEx II 3 G, Ex ec nC IIC.
Base Product NumberSDN20
BrandSolaHD
Cable Size16 - 10 AWG Solid
Case MaterialMetal Case
Catalog NumberSDN20-24-100C
CategoryPower Supplies - Extern.
ConfigurationEnclosed
Country of OriginPhilippines
Cross Reference ProductsAutoDirect PS24300D|Aut.
Current - Output (Max)20A
DC Voltage - Input (Max)275V
DC Voltage - Input (Min)90V
Depth4.98 in
DescriptionAC/DC DIN RAIL SUPPLY 2.
Digi-Key Part Number2106-SDN20-24-100C-ND
Efficiency92%
Environmental Conditions90 RH Humidity Range
FeaturesAdjustable Output, IP20.
Frequency47-63 Hz
Frequency Rating47-63
Height4.85 in, 2.5, 4.88" (12.
Hertz : 1-Phase: 43 - 6.50/60 Hz
Hold Up TimeGreater Than 20 msec
Hz60 Hz
IECEx CertifiedEx ec nC IIC Gc
In. Voltage100 VAC ; 110 VAC ; 115.
Input TypeAC or DC
Input Voltage85 to 264 V AC, 115 to .
Input Voltage Range1-Phase: 100-240 Vac; 3.
Input Voltage Range : 1.380-480 Vac
ItemPower Supply, Dc Power .
Item TypeGL Series Single & Mult.
Length9
Made in USANo
ManufacturerSolaHD
Manufacturer Product Nu.SDN20-24-100C
Manufacturer Standard L.12 Weeks
MaterialMetal Housing
Maximum Operating Tempe.60 C
MfrSolaHD
Minimum Load Required-
Minimum Operating Tempe.-25 C
MountingDIN TS35/7.5 or TS35/15.
Mounting TypeDIN Rail Mount
Number of Outputs1
Number of PhasesSingle and Three
Operating Temp. Range-25 Degrees to 60 Degr.
Operating Temperature-40?C to +70?C, -40?C ~.
OperationPFC
Out. Voltage24 VDC
Output Amps20 A, 20
Output Current20 A
Output NoiseLess than 100 mV, Less .
Output Power120-960 W, 480 W
Output Voltage24V DC, 24 VDC
Output Voltage Range12 V (12-15 Vdc Adj.) o.
PackageBulk
Peak Amps22 A, 22
Phase1
Phase - Electrical1, Single
Power (Watts)480W
Power Rating480 W, 480W
Primary TypeAC-DC
Product HeaderSDN Series Compact DIN .
Product StatusActive
SeriesSDN-C Series, SDN-C
Size / Dimension4.98" L x 3.42" W x 4.8.
Special FeaturesIndustry standard footp.
StandardNon-Medical: EN60950, U.
StandardsCE, cRUus E137632 E2347.
Status Indicator3 status LEDs (Input, O.
StyleSwitching
Temp. Range-40 to 70?C
TypeIndustrial
UL Recognized Component.Class I, Division 2, Gr.
UPC783472001965
Voltage - Output 124V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Voltage - Output 5-
Voltage - Output 6-
Volts AC Range115/230, 85-264
Volts DC24
Volts DC Range90-375
Wattage38
Width3.42 in, 5, 0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00HK6ZLDI570.831In Stock5Sola/Hevi-Duty570.83 @ 1
thumbzoomsustainablesupply.comC1204298617.531In StockSola3.71617.53 @ 1
Onlinecomponents.comSDN2024100C650.6312Sola/Hevi-Duty650.63 @ 1
thumbzoomCarlton Bates Company78347200196664.9611SOLAHD664.96 @ 1
thumbzoomMRO Supply1011867699.521In StockSolaHD699.52 @ 1
thumbzoomZoroG2040001699.991121Solahd3.71699.99 @ 1
Hawk ElectronicsSDN2024100C735.01In StockSola HD735.0 @ 1
standardelectricsupply.com2188551740.061In StockSola/Hevi-Duty740.06 @ 1
thumbzoomWalker IndustrialSDN2024100C776.741In Stock17SolaHD776.74 @ 1
thumbzoomDigi-Key10071862794.68141SolaHD794.68 @ 1
thumbzoomNewark10R6981826.62174SOLAHD826.62 @ 1
thumbzoommayerelectric.comSOLSDN2024100C851.471In StockSOLA HEVI-DUTY851.47 @ 1
thumbzoomgordonelectricsupply.comSDN20-24-100C885.01In Stock380SOLA-HD885.0 @ 1
thumbzoomelectricalparts.comSDN2024100C899.13612Sola Hevi-Duty899.136 @ 1
thumbzoomPlatt.com0782964903.1617Sola Hevi-Duty903.16 @ 1
RS Delivers891-3317919.10419SolaHD919.104 @ 1
grainger.caWWG5DJN0985.709870541In StockSOLAHD3.75985.70987054 @ 1
us.rs-online.com702115301025.43144SolaHD1025.43 @ 1
kirbyrisk.com23071791044.2715Solahd1044.27 @ 1
thumbzoomUnited Electric7625091141.81In StockSolaHD1141.8 @ 1
thumbzoomRaptor SuppliesAE3HVB1219.71043351In StockSOLA/HEVI-DUTY1219.7104335 @ 1
thumbzoomcrescentelectric.com1609961847.8414SolaHD1847.84 @ 1
