Square D HJA36045

B009OYDSPW

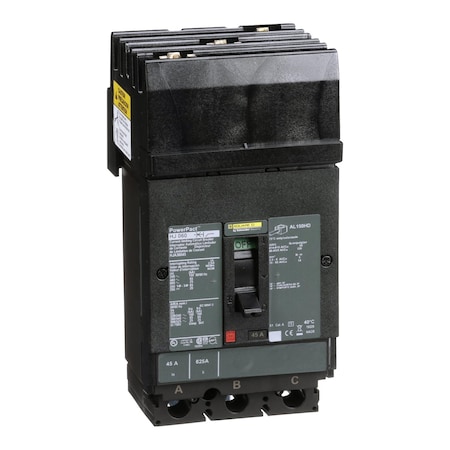

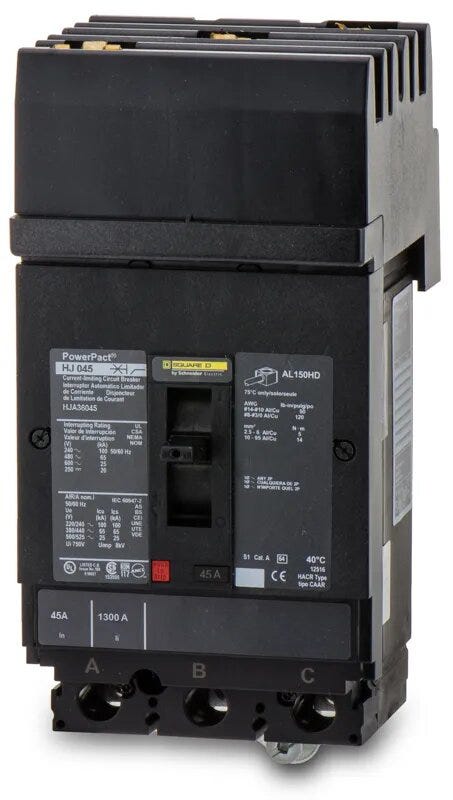

SQUARE D HJA36045 Molded Case Circuit Breaker 600V 45A

SQUARE D HJA36045 Molded Case Circuit Breaker 600V 45Azoom

Attributes

Key Value
AC Voltage Rating600VAC
Actuator TypeToggle
Amperage45
Amperage Rating45
Amps45
ApplicationHACR rated Applications.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Catalog NumberHJA36045
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
Color FamilyBlack
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Country of Origin00 - Unknown, Mexico
Current Rating45-45A, 45 A
Depth86 mm
DisplayHJA36045 Circuit breake.
ECCNEAR99
Family NamePowerPact H Family
FeaturesMercury Free; PVC Free
FrameJ
Frame SizeH
Frame TypeH Frame, H, H-Frame
FunctionsLong Time and Instantan.
Gtin785901506935
Height163 mm, 4.5 in., 6.42
High Amp Trip Setting850 A
Interrupt Rating100 kA at 220/240V AC, .
Interrupting Rating100kA@240VAC, 65kA@480V.
ItemMolded Case Circuit Bre.
Item TypeCIRCUIT BREAKER
Length16 mm, 4.8 IN
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating100 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
Mounting TypeI-LINE
MpnHJA36045
No. of Poles3-Pole
Number of Poles3
Operating Temperature40 A Degrees C
Phase3
Phase ConnectionABC
Poles3
ProtectionThermal Magnetic
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesHJA, PowerPact H-Frame .
Special FeaturesI-LINE
StandardCSA-IEC-UL LISTED-CE, U.
StandardsCE, UL, CSA, NEMA, NOM,.
Sub BrandPOWERPACT
Terminal ConnectionLine and Load Side Lug,.
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range400 A,45 A,850 A
Trip TypeTHERMAL-MAGNETIC, Therm.
TypeThermal/Magnetic
UNSPSC39121616
UPC785901506935
UPC Code785901506935
Voltage600VAC, 250VDC
Voltage Rating250 V DC-600 V AC, 600 V
Warranty DescriptionContractual Warranty:18.
Width104 mm, 104 in., 4.09
Wire GaugeAWG 14 to AWG 3/0 Alumi.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8PLN1.4860755167SQUARE D1.4860755 @ 1
simplybreakers.comHJA36045899.991In StockSchneider Electric899.99 @ 1
thumbzoomsuperbreakers.comHJA360451002.411Square D1002.4 @ 1
thumbzoomRadwellHJA360451250.012SCHNEIDER ELECTRIC SQUARE D1250.0 @ 1
thumbzoomgordonelectricsupply.comHJA360451286.316710SQUARE D1286.3 @ 1
standardelectricsupply.com23932621286.31In StockSquare D1286.3 @ 1
thumbzoomNewark20K01991286.311In StockSQUARE D BY SCHNEIDER ELECTRIC1286.31 @ 1
thumbzoomZoroG05678871350.6216710Square D4.01350.62 @ 1
steinerelectric.com3815521424.39167Square D?1424.39 @ 1
us.rs-online.com709531861456.05167Square D1456.05 @ 1
thumbzoomcrescentelectric.com520712083.93167Square D by Schneider Electric2083.93 @ 1
thumbzoomsustainablesupply.comC30464352208.85167Square D4.02208.85 @ 1
Graybar250450182226.561In StockSquare D (Schneider Electric)2226.56 @ 1
