AIGNEP USA 60020-12-1/2

mpn60020-12-1/2
brandname: AIGNEP USA
manufacturername: AIGNEP USA

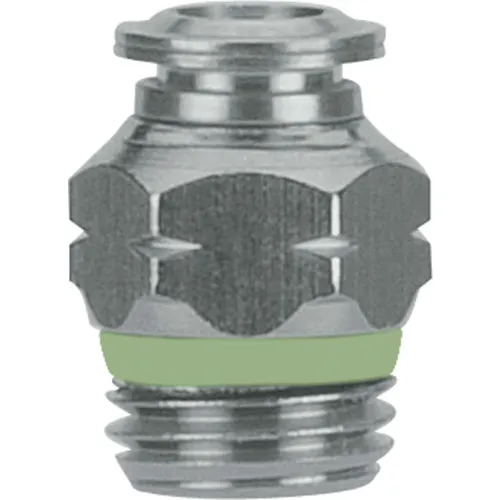

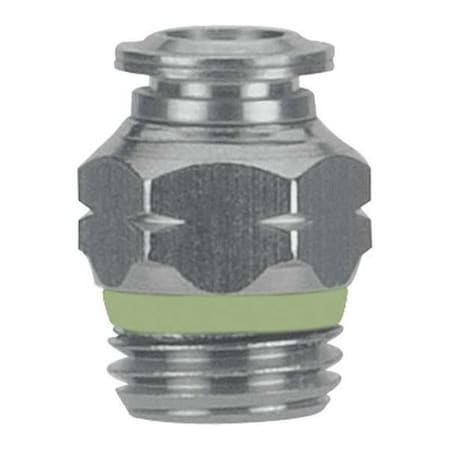

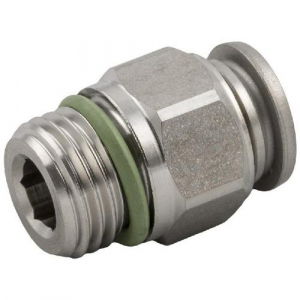

AIGNEP USA 60020-12-1/2 Push-in Fittings, Straight Male Connector, Stainless Steel, 12 mm Tube x 1/2" BSPP Thread

Brand: AIGNEP USA
PartNumber: 60020-12-1/2
Model: 60020-12-1/2
Color: Stainless Steel
Size: 12 millimeters
PackageQuantity: 1
Binding: Misc.
Manufacturer: AIGNEP USA
Label: AIGNEP USA

Attributes

Key	Value
Application	Air
Basic Material	Stainless Steel
Body	Stainless Steel
Body Color	Silver
Body Material	Stainless Steel
Brand Name	AIGNEP
Brand Part Number	60020-12-1/2
Color	Silver
Compatible Tube Material	Copper, Nylon, Polyethy.
Compliance	EN331, REACH, ROHS
Connection (A)	12mm Tube
Connection (B)	1/2" BSPP Male
Connection Type	Tube x BSPP
Country of Origin (subj.	Italy
End Connection Type	Push-to-Connect, Thread.
Fitting Body Material	316L Stainless Steel
Fitting Material	Stainless Steel
Fitting Pipe Size	1/2 in
Fitting Shape	Adapter
Fitting Side A Connecti.	Push-to-Connect
Fitting Side A Tube Out.	12 mm
Fitting Side B Connecti.	Universal
Fitting Side B Pipe Size	1/2 in
Fitting Thread Size	1/2-14
Fittings Sub-Category	Connectors
For Tube OD	12mm, 12 mm
For Tube Outside Diamet.	12 mm
Gasket Material	PTFE/FKM
Gripping Ring Material	316L Stainless Steel
Hex Size	55/64 in
Includes Pre-Applied Th.	Yes
Item	Male Connector
Material	Stainless Steel
Material Grade	316L
Max. Pressure	250 psi
Maximum Operating Press.	290 psi
Maximum Operating Tempe.	392 Degrees F
Media	Compressed Air Fluid fo.
Minimum Operating Tempe.	5 Degrees F
O-Ring Material	Viton
Pipe Size	1/2 in BSPP, 1/2"
Pipe Thread Material	Stainless Steel
Pipe Thread Type	BSPP Male
Pressure Rating	Vacuum-290 PSI
Release Ring Material	PTFE/FKM
Ring Release Color	Silver
Ring Release Material	Stainless Steel
Shape	Straight
Style	Male Straight
System of Measurement	Imperial/Metric
Temp. Range	5 Degrees to 437 Degre.
Temperature Range	5 ? F - 392? F
Thread Seal	FKM
Thread Sealant Type	FKM
Tube Size	12mm
Tubing Compatibility	Nylon, Polyethylene, Po.
Working Pressure	290 psi

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
fixsupply.com	ZUSA-TF-PTC-SS-36	29.69	1	In Stock		AIGNEP		29.69 @ 1
primebuy.com	60020-12-1/2	35.62	1	In Stock		Aignep		35.62 @ 1
Zoro	G5096080	38.25	1	1		Aignep Usa	0.03	38.25 @ 1
Global Industrial	WBB1222581	40.95	1	In Stock	15	Aignep USA		40.95 @ 1
Amazon	B01GV0U6Q0	71.47	1	In Stock		AIGNEP USA		71.47 @ 1
