- mpnECP3584T-5
- brandname: Baldor
- manufacturername: Baldor

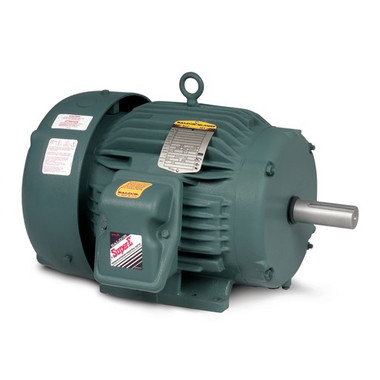

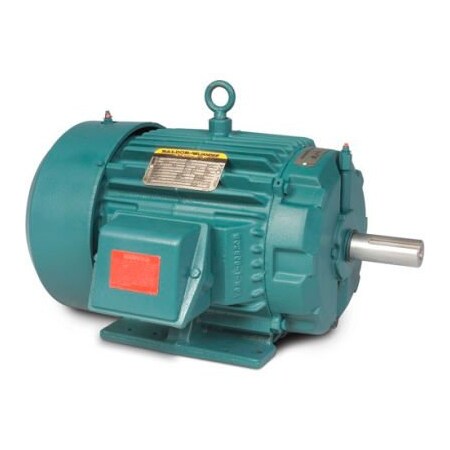

Baldor ECP3584T-5 1.5HP 1740RPM 3PH 60HZ 143T 0528M TEFC F
- Brand: Baldor Electric Motors
- PartNumber: ECP3584T-5
Attributes
| Key | Value |
|---|
| Amps | 1.7 |
| Bearing Type | Re-Greasable |
| Bearings | Ball |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Efficiency % | 88.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Material | Iron |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 71.00 |
| Family Series | Baldor Motors, CP Series |
| FL Amps | 1.7 |
| FL Efficiency | 88.5 |
| Frame | 145T |
| Gross Weight | 63 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes, No |
| Item Number | ECP3584T-5 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 05F008W830G1 |
| Manufacturer Part Number | ECP3584T-5 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Foot Mount, Rigid |
| NEMA Frame | 145T |
| Net Weight | 63 lbs |
| Nominal Voltage | 575 VAC, 600 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 12.88 ", 12.88" |
| Part Number | ECP3584T-5 |
| Phase | 3 |
| Product Series | CP |
| Product Type | Severe Duty & IEEE 841,. |
| Rotation | Reversible |
| RPM | 1,800 RPM, 1760, 1700 -. |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875" |
| Ship Weight | 71 lbs. |
| Speed (RPM) | 1760 |
| Voltage | 575V, 575 |
| Voltage (AC) | 575 VAC |
| Volts | 575 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B0042GCM86 | 907.98 | 1 | In Stock | 10 | Baldor | | 907.98 @ 1 |
 | emotorpro.com | ECP3584T-5 | 994.69 | 1 | In Stock | | Baldor | 71.0 | 994.69 @ 1 |
| factorysupplyoutlet.com | WK62ZM | 1097.88 | 1 | In Stock | | Baldor-Reliance | | 1097.88 @ 1 |
 | Walker Industrial | ECP3584T-5 | 1100.63 | 1 | In Stock | | Baldor | | 1100.63 @ 1 |
 | galesburgelectric.com | ECP3584T-5 | 1100.63 | 1 | In Stock | | Baldor | | 1100.63 @ 1 |
 | Galco | ECP3584T-5-BLDR | 1100.63 | 1 | In Stock | | Baldor | 63.0 | 1100.63 @ 1 |
 | motorsandcontrol.com | ECP3584T-5 | 1146.48 | 1 | In Stock | | Baldor Reliance | 71.0 | 1146.48 @ 1 |
| motionindustries.com | 00544277 | 1588.98 | 1 | In Stock | | Baldor-Reliance | | 1588.98 @ 1 |
 | pumpproducts.com | ECP3584T-5 | 1958.0 | 1 | In Stock | | Baldor | | 1958.0 @ 1 |
 | Zoro | G604935392 | 2287.99 | 1 | 1 | | Baldor-Reliance | | 2287.99 @ 1 |
