Baldor Electric EM3581T

B08VDVDYR4

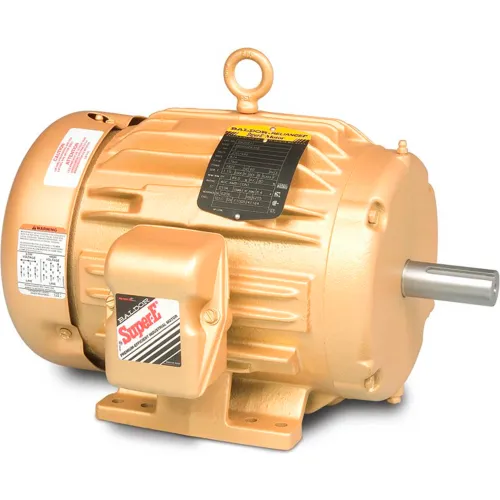

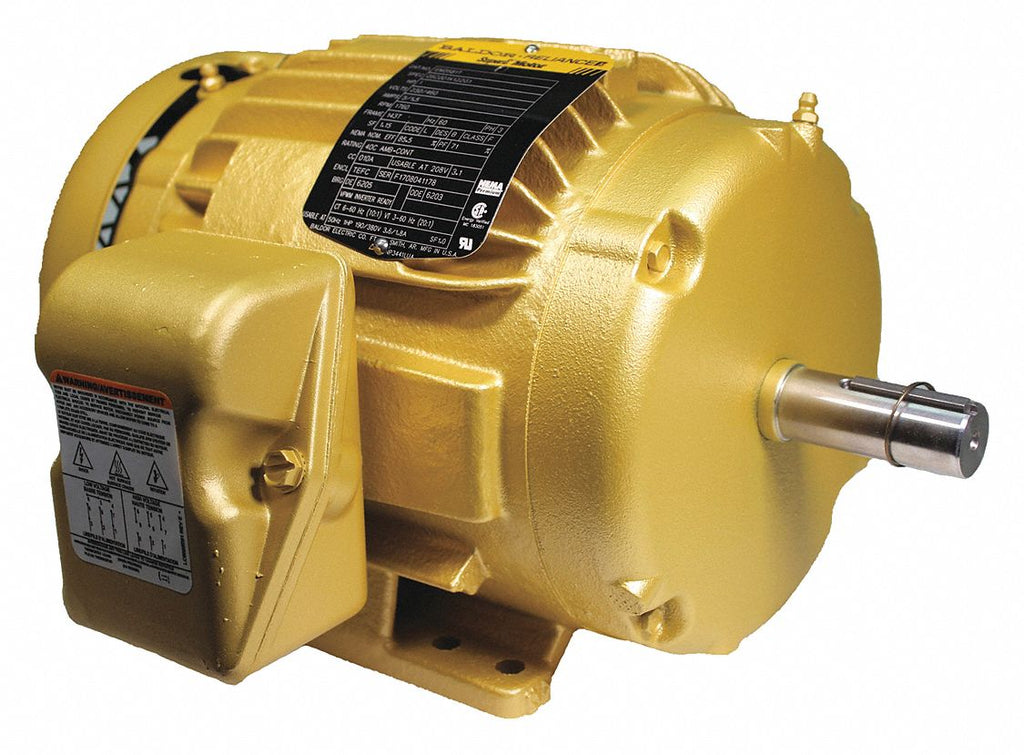

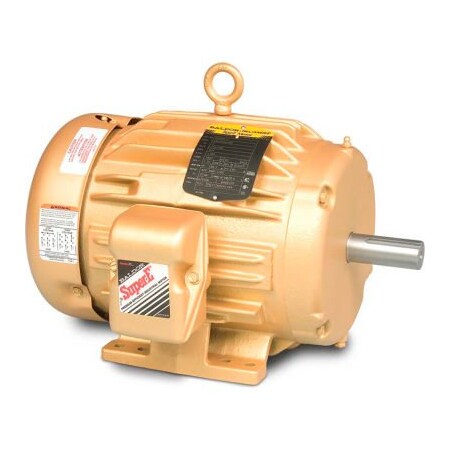

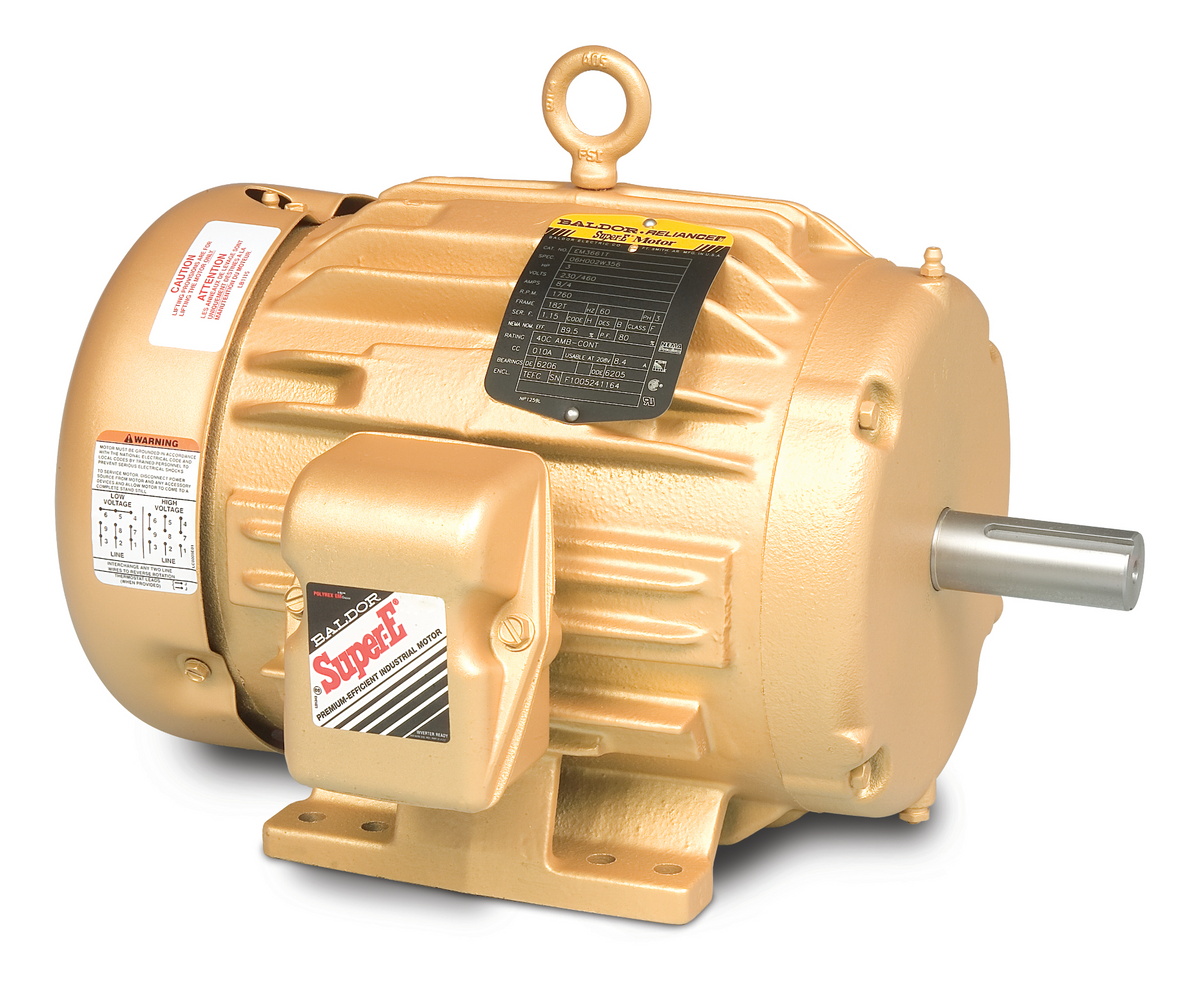

Baldor Electric 1 HP General Purpose Motor, 3-Phase, 1760 Nameplate RPM, Voltage 208-230/460, Frame 143T - EM3581T

Baldor Electric 1 HP General Purpose Motor, 3-Phase, 1760 Nameplate RPM, Voltage 208-230/460, Frame 143T - EM3581Tzoom

Attributes

Key Value
Amps3.1/3/1.5
ApplicationGeneral Purpose
Baldor Type0523M
BaseRG
Bearing TypeBall
BearingsBall
BrandBaldor-Reliance
Catalog NumberEM3581T
ColorGold
CompositionCast Iron
ConstructionCast Iron
DE Bearing6205
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency85.5%
Efficiency %85.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialIron
Enclosure TypeTEFC
Estimated Weight51.00
Family SeriesBaldor Motors, M Series
FL Amps3.1-3/1.5
FL Efficiency85.5
Frame143T
Frame Size143T
Full Load Amps3/1.5
Full Load Efficiency87.5
Gross Weight56 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassF
International ShippingNo
Inverter DutyYes, No
Item NumberEM3581T
Lead TimeExpected to ship in 1-2.
Locked Rotor CodeN
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #05C001X508G1
Manufacturer Part NumberEM3581T
Maximum Ambient Tempera.40? C
MountingF1, Rigid, Foot Mount
Mounting TypeFoot Mount, Rigid
MpnEM3581T
NEMA Design CodeB
NEMA Frame143T
Net Weight56 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
ODE Bearing6203
Overall Length12.53 ", 12.53"
Overload ProtectionNone
Part NumberEM3581T
Phase3, 3 Phase
Power Factor71
Product SeriesM
Product TypeGeneral Purpose, Three .
Rating40C AMB-CONT
RotationReversible
RPM1,800 RPM, 1760, 1700 -.
SeriesSuper-E Series
Service Factor1.15
Shaft Diameter0.875"
Ship Weight51 lbs.
SKUZO-G8313444
Specification Number05C001W706E7
Speed (RPM)1760
SubCategoryMotors/Ac Motors
UPC781568138922
UPC Code781568138922
Usable at 208 Volts3.28
Voltage208V, 230V, 460V, 230/4.
Voltage (AC)208-230 VAC, 460 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comEM3581T642.751In StockBaldor642.75 @ 1
thumbzoomwilliamsautomation.comEM3581T700.01In StockBALDOR700.0 @ 1
steinerelectric.comPDW~1476803805.01In StockBaldor-Reliance805.0 @ 1
thumbzoomPurvisEM3581T845.441In StockBaldor-Reliance845.44 @ 1
thumbzoomgalesburgelectric.comEM3581T847.761In StockBaldor847.76 @ 1
thumbzoomemotorpro.comEM3581T854.851In StockBaldor51.0854.85 @ 1
factorysupplyoutlet.comIL98ZW936.431In StockBaldor-Reliance936.43 @ 1
thumbzoomWalker IndustrialEM3581T945.891In StockBaldor945.89 @ 1
thumbzoomGalcoEM3581T-BLDR945.891In StockBaldor56.0945.89 @ 1
motorsandcontrol.comEM3581T985.31In StockBaldor Reliance51.0985.3 @ 1
thumbzoomGlobal IndustrialWBB3898481019.01In StockBaldor-Reliance1019.0 @ 1
standardelectricsupply.com22738601058.831In StockBaldor Electric1058.83 @ 1
thumbzoomsustainablesupply.comC14908711091.511In StockBaldor Electric49.01091.51 @ 1
thumbzoompumpproducts.comEM3581T1120.171In StockBaldor1120.17 @ 1
cbtcompany.comEM3581T1120.881In StockBaldor Reliance1120.88 @ 1
thumbzoomsimsupply.comZO-G83134441126.641In StockBaldor-Reliance1126.64 @ 1
us.rs-online.com719441821182.3512Baldor-Reliance1182.35 @ 1
thumbzoommotionindustries.com005465481364.761In StockBaldor-Reliance1364.76 @ 1
thumbzoomZoroG9049308441674.871In StockBaldor-Reliance1674.87 @ 1
thumbzoomRaptor SuppliesAJ6UAY1713.82495051In StockBALDOR MOTOR1713.8249505 @ 1
