Baldor Electric ZDVSNCP3584T

B07FN6XJ9L

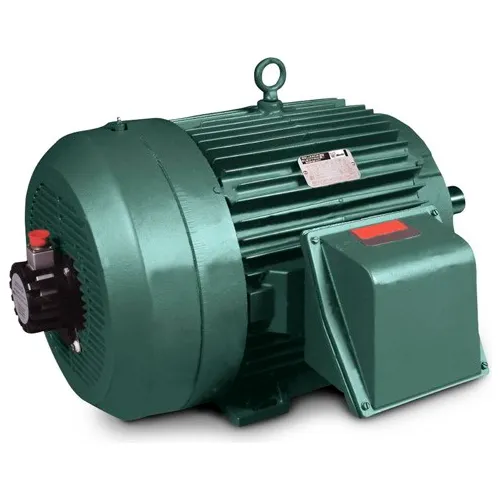

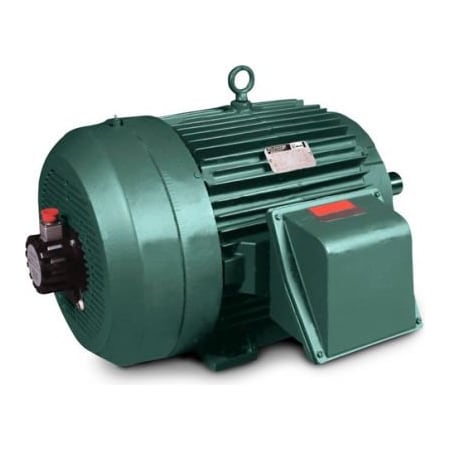

Baldor Electric, ZDVSNCP3584T, 1.5HP, 1755RPM, 3PH, 460V;230V, 145TC Frame, C-Face Flange, Foot Mount, TENV, Vector Duty Motor

Baldor Electric, ZDVSNCP3584T, 1.5HP, 1755RPM, 3PH, 460V;230V, 145TC Frame, C-Face Flange, Foot Mount, TENV, Vector Duty Motorzoom

Attributes

Key Value
Amps4.2/2.1
ApplicationSevere Duty
BearingsBall
Comments60 Hz
CompositionCast Iron
ConstructionCast Iron
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency86.5%
Efficiency %86.5 %
EnclosureTotally Enclosed Non-Ve.
Enclosure MaterialIron
Enclosure TypeTENV (Totally Enclosed .
Estimated Weight65.00
Family NameVariable Speed AC Family
Family SeriesBaldor Motors
FL Amps4.2/2.1
FL Efficiency86.5
Frame145TC
Frame Type145TC
Frequency60 Hz
Gross Weight65 lbs
Hertz60
Horsepower1-1/2 hp
Horsepower Rating1.5 HP
HP1.5, 1-1/2
Hz60
Insulation ClassH
Inverter DutyYes
Item NumberZDVSNCP3584T
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #05F205X130Z1
Manufacturer Part NumberZDVSNCP3584T
Maximum Ambient Tempera.40? C
MountingFoot Mount, C-Face/Rigid
Mounting TypeFoot Mount, Footed / Fl.
NEMA Frame145TC
Net Weight65 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Speeds1
Overall Length14.61"
Package Quantity1
Part NumberZDVSNCP3584T
Phase3, 3 Phase
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1755 RPM, 1,755 RPM, 17.
SeriesVS Master Series
Service Factor1, 1.00
Shaft Diameter0.875"
Ship Weight72 lbs.
Special FeaturesEncoder ; Inverter Read.
Speed (RPM)1755
Supply Voltage230/460 VAC
UPC Code781568471616
Voltage230V, 460V
Voltage (AC)230 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker IndustrialZDVSNCP3584T3455.411In StockBaldor3455.41 @ 1
thumbzoomGalcoZDVSNCP3584T-BLDR3455.411In StockBaldor65.03455.41 @ 1
thumbzoomGlobal IndustrialWBB3919383457.01In StockBaldor-Reliance3457.0 @ 1
thumbzoommotorsandcontrol.comZDVSNCP3584T3599.381In StockBaldor Reliance65.03599.38 @ 1
factorysupplyoutlet.comSJ54FS3722.521In StockBaldor-Reliance3722.52 @ 1
thumbzoomemotorpro.comZDVSNCP3584T3727.631In StockBaldor72.03727.63 @ 1
thumbzoomapexindustrialautomation.comZDVSNCP3584T3987.0212Baldor-Reliance3987.02 @ 1
us.rs-online.com719345863993.041In StockBaldor-Reliance3993.04 @ 1
motionindustries.com039331475383.221In StockBaldor-Reliance5383.22 @ 1
thumbzoomZoroG8049343555399.9911Baldor-Reliance5399.99 @ 1
thumbzoompumpproducts.comZDVSNCP3584T6035.331In StockBaldor6035.33 @ 1
