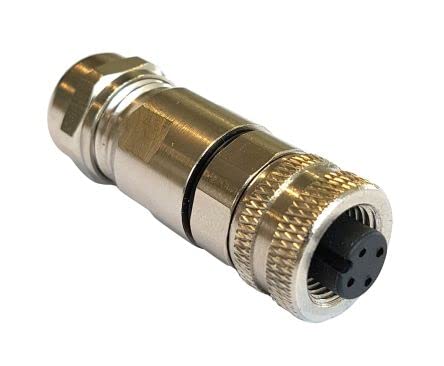

Bulgin Limited Sensor Conn, M12, Plug, 8Pos, Cable - PXMBNI12FBF08ASCPG9
- Brand: Bulgin Limited
- PartNumber: PXMBNI12FBF08ASCPG9
- Model: PXMBNI12FBF08ASCPG9
- Manufacturer: Bulgin Limited
- Label: Bulgin Limited
Attributes
| Key | Value |
|---|
| Applications | Industrial, Instrumenta. |
| Backshell Material, Pla. | Brass, Nickel |
| Base Product Number | PXMBNI |
| Body Material | Brass Nickel Plated |
| Cable Opening | 0.181" ~ 0.315" (4.60mm. |
| Category | Connectors, Interconnec. |
| Coding | A |
| Color | Silver |
| Connector | plug |
| Connector Type | Plug, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thicknes. | - |
| Contact Material | Phosphor Bronze |
| Contact Type | Socket |
| Current Rating | 2 A |
| Current Rating (Amps) | 2A |
| Description | CONN PLUG FMALE 8POS SO. |
| Detailed Description | 8 Position Circular Con. |
| Digi-Key Part Number | 708-2169-ND |
| Electrical mounting | soldering |
| Family Name | Buccaneer M Series Fami. |
| Fastening Type | Threaded |
| Features | Backshell, Coupling Nut |
| Ingress Protection | IP67 - Dust Tight, Wate. |
| Insert Material | - |
| IP Rating | IP67 |
| IP rating | IP67 |
| Kind of connector | female |
| Locking system | internal thread, |
| Manufacturer | Bulgin |
| Manufacturer Product Nu. | PXMBNI12FBF08ASCPG9 |
| Manufacturer Standard L. | 23 Weeks |
| Material Flammability R. | - |
| Maximum current | 2A |
| Mechanical mounting | for cable |
| Mfr | Bulgin |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line),. |
| Number of Contacts | 8 |
| Number of pins | 8 |
| Number of Positions | 8 |
| Operating Temperature | -25?C ~ 80?C, -25 C to . |
| Orientation | A |
| Package | Bulk |
| Polarisation | A code - DeviceNet / CA. |
| Primary Material | Metal |
| Product Status | Active |
| Rated voltage | 30V |
| Series | Buccaneer? M12, Buccane. |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-8 |
| Shell Size, MIL | - |
| Shielding | - |
| Termination | Solder Cup |
| Thread Size | M12 x 1 |
| Type of connector | M12 |
| Voltage Rating | 30 V, 30V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 37AC2385 | 7.95 | 1 | 1 | | BULGIN LIMITED | | 7.95 @ 1 |
 | Digi-Key | 6716343 | 44.47 | 1 | 78 | | Bulgin | | 44.47 @ 1 |
| us.rs-online.com | 71078263 | 45.29 | 1 | 5 | | Bulgin | | 45.29 @ 1 |
| RS Delivers | 144-6829 | 48.264 | 1 | 23 | | Bulgin | | 48.264 @ 1 |
 | TME | MBNI12FBF08ASCPG9 | 72.65 | 1 | 25 | | BULGIN | | 72.65 @ 1 |
