A. O. Smith ARB2036SL

mpnARB2036SL
brandname: Century
manufacturername: Century

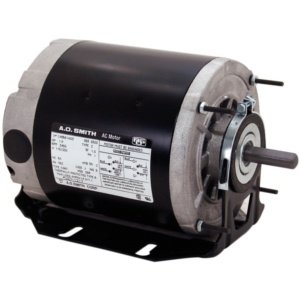

A.O. Smith ARB2036SL 1/3 HP 115/208-230 Volt 1140 RPM Split Phase Motor ARB2036SL

Brand: A. O. Smith
PartNumber: ARB2036SL
Manufacturer: A.O. Smith
Label: A.O. Smith

Attributes

Key	Value
Amps	6/3/3
Application	Belt Drive, Centrifugal.
ARB2036SL is listed in .	Dayton 2K742, Dayton 4U.
Bearings	Ball
Body Dia.	6-1/2"
Bolt Circle Dia.	5-13/16"
Brand	Century
Capacitor Required	None
Category	Electric Motor
Current Stock	3
Duty	Continuous Air Over
Duty Cycle	Continuous
Enclosure	TEAO
Enclosure Type	TEAO (Totally Enclosed .
Frame	56
Frame Remarks	Resilient Base
Full Load Amps	6.0/3.0-3.0
HP	0.33, 1/3
Hz	60
Includes	Resilient Base
Ins. Class	B
Insulation Class	B
International Shipping	No
Item	Direct Drive Blower Mot.
Item Condition	FACTORY NEW
Length Less Shaft	9-9/16"
Manufacturer	Century
Material	HAWA
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Ball
Motor Design	Split-Phase
Motor Diameter	6-1/2"
Motor Enclosure Design	Totally Enclosed Air-Ov.
Motor Mounting Position	All Angle
Motor Mounting Type	Cradle Base
Motor Service Factor	1.00
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Direct Drive Fan/Blower
Motor Thermal Protection	None
mounting	Resilient Base
Mounting	Cradle/Stud
Mounting Stud Location	Shaft End
Mounting Stud Pattern	4-1/8" x 4-1/8"
Mpn	ARB2036SL
Nameplate RPM	1,140
No. of Speeds	3
Number of Speeds	1
Phase	1
Product Type	Split Phase
Resilient Ring Dia.	2-1/2"
Ring to Ring Center	9-1/16"
Rotation	Reversible
RPM	1140, 1100 - 1200, 1200
RPM Range	1,000 - 1,380
Service Factor (SF)	1.00
Shaft Dia.	5/8"
Shaft Diameter	5/8" Keyed
Shaft Length	1-7/8"
Ship Weight	28 lbs.
SKU	CU-3455593435
Standards	UL Recognized, CSA Cert.
Stud Size	#10-32 x 3/4"
SubCategory	Motors/Ac Motors
Thermal Protection	None
Voltage	115/208-230
Voltage Compatibility	115, 120, 208, 230, 240.
Volts	115/208/230, 115/208-230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
grainger.ca	AOSARB2036SL	26.27466582	1	In Stock		CENTURY	27.6	26.27466582 @ 1
Grainger	4UY45	279.5	1	6	0	CENTURY		279.5 @ 1
MRO Supply	5811598	310.61	1	In Stock		Century		310.61 @ 1
simsupply.com	CU-3455593435	323.15	1	In Stock		Century		323.15 @ 1
Dealers Electric	ARB2036SL	331.32	1	In Stock		Century	28.0	331.32 @ 1
sustainablesupply.com	C1561831	361.57	1	In Stock		Century	27.6	361.57 @ 1
emotorpro.com	ARB2036SL	366.7	1	In Stock		Century	28.0	366.7 @ 1
midwestapplianceparts.com	ARB2036SL-AO-P	377.57	1	In Stock		AO Smith		377.57 @ 1
National Supply Network	B2776657	388.94	1	In Stock		AO SMITH		388.94 @ 1
