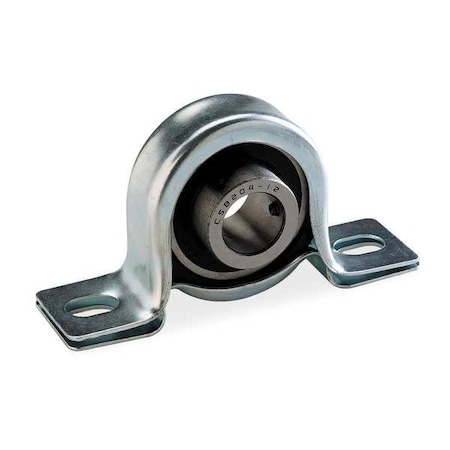

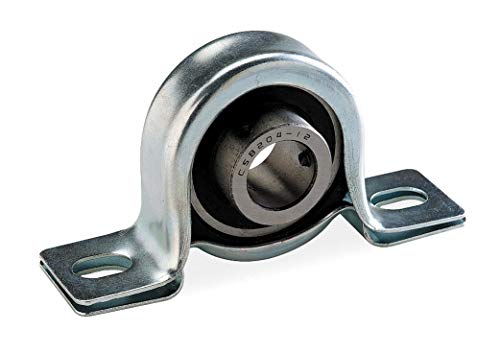

Pillow Block Bearing, Ball, 1/2" Bore
- Brand: Dayton
- PartNumber: 2X897
- Model: 2X897
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Base Height | 0.11 in |
| Bearing Housing Materia. | Pressed Steel |
| Bearing Insert Material | 52100 Chrome Steel, All. |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Material Grade | 52100 |
| Bolt Size | 7/16 in |
| Bore Dia. | 1/2 in |
| Bore Diameter | 1/2 in |
| Bore Type | Cylindrical |
| Brand | Dayton |
| Center Height | 15/16 in, 0.937 in |
| Closure | Double Sealed |
| Current Stock | 397 |
| Dimension A | 15/16 in |
| Dimension B | 1 7/8 in |
| Dimension C | 4 3/16 in |
| Dimension D | 4 3/16 in |
| Dimension E | 3 3/16 in |
| Dimension F | 7/64 in |
| Dimension G | 1 3/16 in |
| Dimension H | 7/64 in |
| Dimension J | 7/16 in |
| Dimension L | 1 3/16 in |
| Dynamic Radial Load Cap. | 1,075 lbf |
| Features | Pre-Lubricated and Made. |
| Housing Material | Steel |
| Includes | (2) Set Screws |
| International Shipping | No |
| Item | Pillow Block Bearing |
| Lead Time | Expected to ship in 1-2. |
| Lubricant Material | NGLI #2 Equivalent |
| Maximum Misalignment An. | 2 Degrees |
| Maximum Speed | 6,000 RPM |
| Maximum Temperature | 200 Degrees F |
| Minimum Temperature | -30 Degrees F |
| Mount Hole Center-to-Ce. | 3.19 in, 3 3/16 in |
| Mount Type | Bolt-Through |
| Mounting Bolt Size | 7/16 in |
| Mpn | 2X897 |
| Number of Mount Holes | 2 |
| Overall Height | 1.875 in, 2 5/8 in |
| Overall Length | 4 7/16 in, 4.187 in |
| Overall Width | 1 11/16 in, 1.187 in |
| Resistance Properties | Non-Conductive |
| Seal Material | Buna-N |
| Shaft Locking Type | Set Screws |
| SKU | ZO-G1135145 |
| Static Radial Load Capa. | 2,152 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| UPC | 044861015735 |
