- mpn4JMV6
- brandname: Dayton
- manufacturername: Dayton

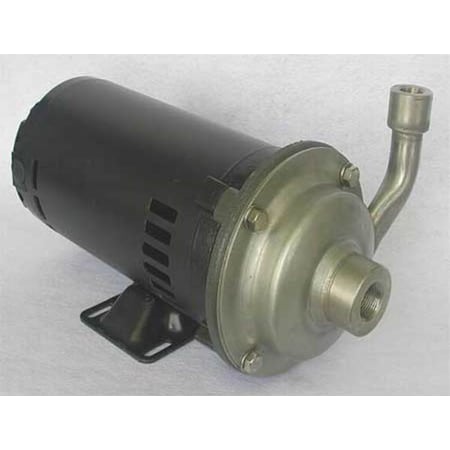

Dayton 4JMV6 Pump, 3/4 HP, 230/460V, 2.4/1.2 Amp
- Brand: Dayton
- PartNumber: 4JMV6
- Model: 4JMV6
- PackageQuantity: 1
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Agency Compliance | CUS |
| Amps | 3.0/1.5 |
| Application | Liquids Transfer, Circu. |
| Bearing Type | Ball |
| Best Efficiency GPM @ H. | 30 gpm @ 41 ft, 30 gpm . |
| Best Efficiency Range G. | 20 to 48 gpm @ 48 to 15. |
| Brand | Dayton |
| Cord Length | Not Applicable |
| Current Stock | 3 |
| Discharge Pipe Size | 3/4 in |
| Drain Plug | No |
| Duty | Continuous |
| GPM of Water @ 10 Ft. o. | 52 |
| GPM of Water @ 15 Ft. o. | 48 |
| GPM of Water @ 20 Ft. o. | 47 |
| GPM of Water @ 25 Ft. o. | 44 |
| GPM of Water @ 30 Ft. o. | 38 |
| GPM of Water @ 40 Ft. o. | 29 |
| GPM of Water @ 5 Ft. of. | 58 |
| GPM of Water @ 50 Ft. o. | 18 |
| GPM of Water @ 60 Ft. o. | 3 |
| Height | 7 7/8 in, 7-7/8" |
| Housing Material | 304 Stainless Steel |
| HP | 3/4 hp, 3/4 |
| Hz | 60 |
| Impeller Material | 304 SS |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet | 1-1/4" NPT, 1-1/4 in NPT |
| Inlet Pressure | 121 PSI |
| Intake Pipe Size | 1 1/4 in |
| International Shipping | No |
| Item | Centrifugal Pump, Chemi. |
| Length | 13 5/16 in, 13-5/16" |
| Length (Straight Wirewa. | 13 5/16 in |
| Manufacturers Warranty . | 1 yr., 1 yr |
| Max. Case Pressure | 150 PSI |
| Max. Dia. Solids | 1/8", 1/8 in |
| Max. Fluid Viscosity | 31 SSU |
| Max. GPM @ Head | 58 gpm @ 5 ft., 58 gpm . |
| Max. Head | 62 ft., 62 ft |
| Max. Liquid Temp. | 200 Degrees F |
| Max. Specific Gravity | 1.0 |
| Min. GPM @ Head | 3 gpm @ 60 ft. |
| Motor Enclosure | ODP |
| Motor RPM | 3,450 |
| Motor Type | 3-Phase |
| Mpn | 4JMV6 |
| NEMA/IEC Frame | 56J |
| Outlet | 3/4" NPT, 3/4 in NPT |
| Overall Height | 7.9 in |
| Overall Length | 13.3 in |
| Overall Width | 6.6 in |
| Phase | 3 |
| Port Rotation | 90 Degrees Increments |
| Screw Material | Stainless Steel |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter | 7/16 in |
| SKU | ZO-G3432457 |
| Solid Diameter (Maximum) | 0.13 in |
| SubCategory | Pumps |
| UPC | 190735326619 |
| Voltage | 230/460 |
| Wetted Materials | Carbon, Ceramic, 304 St. |
| Width | 6 9/16 in, 6-9/16" |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3432457 | 646.96 | 1 | 7 | | Dayton | 29.9 | 646.96 @ 1 |
 | simsupply.com | ZO-G3432457 | 750.53 | 1 | 3 | | Dayton | | 750.53 @ 1 |
| grainger.ca | GGM4JMV6 | 790.74386282 | 1 | In Stock | | DAYTON | 29.9 | 790.74386282 @ 1 |
 | sustainablesupply.com | C2675401 | 830.5 | 1 | In Stock | | Dayton | 29.9 | 830.5 @ 1 |
 | Raptor Supplies | AD8EQL | 1063.0579635 | 1 | In Stock | | DAYTON | | 1063.0579635 @ 1 |
