Eemax ED024480T3 EE

mpnED024480T3 EE
brandname: EEMAX
manufacturername: EEMAX

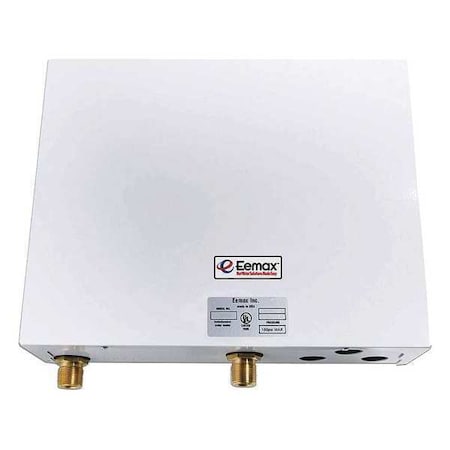

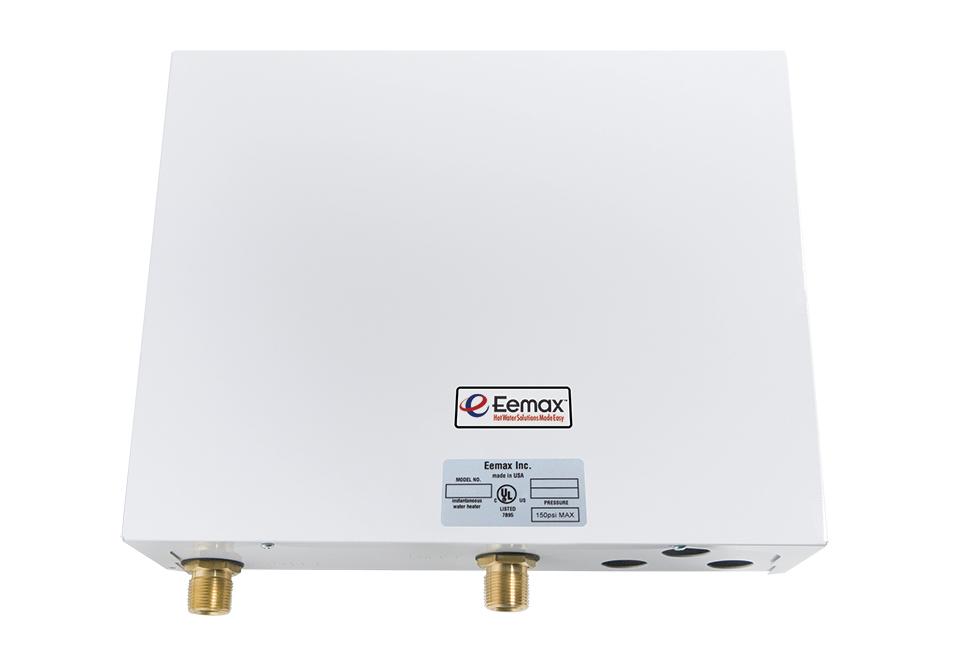

Eemax ED024480T3 EE 24KW 480V Delta Thermostatic Control Emergency Eye Wash

Brand: Eemax
PartNumber: ED024480T3 EE
Model: ED024480T3 EE
PackageQuantity: 1
Binding: Tools & Home Improvement

Attributes

Key	Value
AMP	29
ANSI	ANSI 372, ANSI Z358.1
Application	Commercial, Industrial,.
BTU	81891
Cabinet Material	Metal
Certifications	UL, LEAD-FREE
Certifications and List.	UL Listed
Collection	Three Phase? Delta
Color Finish Category	Whites
Color Finish Name	White
Condensing	No
Connection Location	Plumbing Bottom, Electr.
CSA Certified	CSA C22.2 No. 64, CSA C.
Depth	4-1/2 in
Elements	Replaceable Nickel Chro.
End Connection 1	Compression
End Connections	Compression
Energy Star Compliant	No
Finish Family	White
Flow Range	0.07 to 5 gpm
Flow Rate	5 gpm
For Use With	Emergency Eyewash
Grade	General Purpose
Heat Exchanger/Element	Other
Height	12-1/8 in
Includes	Compression Fittings
Indoor Outdoor	Indoor
Indoor/Outdoor	Indoor
Inlet Pipe Size	1/2 in
Input Connection	1/2" Compression
Installation Type	Wall Mount
Item	Tankless Water Heater
Material	Nickel
Maximum Temperature	90
Min. Flow Activation	0.70 gpm
Mount	Vertical
NSF	NSF 372
NSF Certified	Yes
Number of Elements	3
Origin	Domestic
Outlet Pipe Size	1/2 in
Output Connection	1/2" Compression
Overall Depth	5"
Overall Height	15"
Overall Width	13"
Pack Size	1
Phase	3, Three Phase
Power Source	Electric
Pressure - High	150
Pressure - Low	35
Product Depth (in.)	4.25
Product Height (in.)	12.25
Product Width (in.)	18.19
Promotion Restriction	Not eligible for promot.
Size (in.)	18.19 x 12.25
Standards	UL
Supply Pipe Connection .	1/2 in
Tank Size	Tankless
Temp. Rise @ 2.5 GPM	66 Degrees F
Temperature Range	100 to 140 Deg F
Type	EED024480T3EE
UL Listed	UL 499
UNSPSC	40101826
Voltage	480VAC
Volts	480V
Water Connection Locati.	Bottom
Water Heater Type	On-demand
Wattage	24,000
Watts	24 kW
Weight	15 lb
Width	18-1/4 in
Wire Gauge (AWG)	10 ga
Wire Size	10 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G4023680	1792.43	1	In Stock		Eemax	16.0	1792.43 @ 1
ferguson.com	4393771	1922.99	1	In Stock		Eemax	15.0	1922.99 @ 1
citysupplygroup.com	ED024480T3 EE	1938.51	1	In Stock		Eemax		1938.51 @ 1
DK Hardware	ED024480T3 EE	2151.87	1	In Stock		Eemax Inc.		2151.87 @ 1
Grainger	48XL09	3644.0	1	In Stock	15	EEMAX		3644.0 @ 1
