FAIRCHILD (ON SEMICONDUCTOR) FDMC7660DC

B07814GQ87

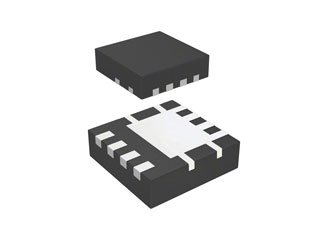

Fairchild (ON Semiconductor) FDMC7660DC N-Channel 30 V 40 A 2.2 mOhm Surface Mount Dual Cool PowerTrench Mosfet - 3000 Item(s)

Fairchild (ON Semiconductor) FDMC7660DC N-Channel 30 V 40 A 2.2 mOhm Surface Mount Dual Cool PowerTrench Mosfet - 3000 Item(s)zoom

Attributes

Key Value
Base Product NumberFDMC7660
CasePQFN8
CategoryDiscrete Semiconductor .
Current - Continuous Dr.30A (Ta), 40A (Tc)
Drain current40A
Drain to Source Voltage.30 V
Drain-source voltage30V
Drive Voltage (Max Rds .4.5V, 10V
FET Feature-
FET TypeN-Channel
Gate charge76nC
Gate Charge (Qg) (Max) .76 nC @ 10 V
Gate-source voltage?20V
Input Capacitance (Ciss.5170 pF @ 15 V
Kind of channelenhanced
Kind of packagereel,
Manufactureronsemi
Mfronsemi
MountingSMD
Mounting TypeSurface Mount
On-state resistance3.3m?
Operating Temperature-55?C ~ 150?C (TJ)
PackageTape & Reel (TR)
Package / Case8-PowerTDFN
Polarisationunipolar
Power dissipation78W
Power Dissipation (Max)3W (Ta), 78W (Tc)
Product StatusActive
Pulsed drain current200A
Rds On (Max) @ Id, Vgs2.2mOhm @ 22A, 10V
SeriesDual Cool?, PowerTrench?
Supplier Device PackageDual Cool ? 33
TechnologyMOSFET (Metal Oxide)
Type of transistorN-MOSFET
Vgs (Max)?20V
Vgs(th) (Max) @ Id2.5V @ 250?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH18141240.850513000Fairchild Semiconductor0.8505 @ 3000
Digi-Key24448330.861313000onsemi0.8613 @ 3000
thumbzoomNewark92R55350.91730003000ONSEMI0.917 @ 3000
Future Electronics90131801.0830003000ON Semiconductor1.08 @ 3000
TMEFDMC7660DC1.2513000ONSEMI1.25 @ 3000
RadwellFDMC7660DC2.6813000FAIRCHILD SEMICONDUCTOR2.68 @ 3000
