Fenner Drives T301065

B01AC3N8VC

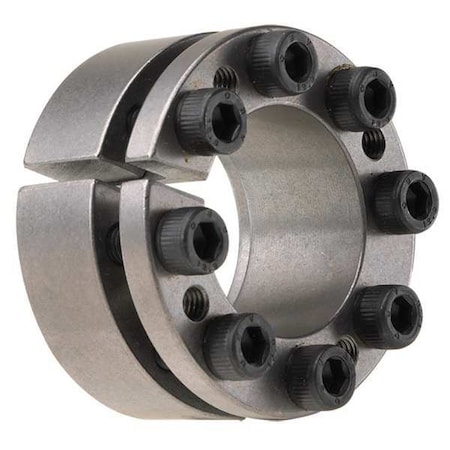

Fenner Drives T301065 B-Loc Shrink Disc, 65 mm ID, 95 mm OD, 9 Locking Screws, Size M8 x 25

Fenner Drives T301065 B-Loc Shrink Disc, 65 mm ID, 95 mm OD, 9 Locking Screws, Size M8 x 25zoom

Attributes

Key Value
Axial MovementApproximately 0.8 mm
Bolt SizeM8 x 25
Bore Diameter65 mm
Bore tolerance95.05
CompliancyRoHS
Component Bore Diameter95mm
Description:B-LOC B103 65mm x 95mm .
FinishOil Dipped
For Bore Diameter65 mm
For Shaft Dia. - Bushin.65 mm
Hub Contact Pressure170 N/sq-mm
Hub Contact Pressure (P.24,656.460000000003
Hub Diameter176 mm
Hub Pressure170
Installation torque34 Nm
Internal/ ExternalInternal
ItemKeyless Bushing
Keyless Bushing SeriesB103
Keyless Bushing TypeMulti-Screw Locking Ass.
Locking Bolt Quantity9
ManufacturerFENNER DRIVES
MaterialSteel
Material - BushingsSteel
MFG Part #:T301065
Outside Dia.95 mm
Outside Dia. (mm)95
Outside Diameter95 mm
Overall Length34.5 mm
Overall Length (mm)34.5
Overall Width34.5 mm
Releasing/ LockingLocking
Screw SizeM8x25
Screw sizeM8 x 25
Screw Thread SizeM8 x 25
Self-CenteringYes
SeriesB103
Shaft Dia. (mm)65
Shaft Dia. Tolerance+0/-.05mm
Shaft diameter65 mm
Shaft Tolerance64.95
Supplier:FENNER DRIVES
TaperSingle
Thrust121914
Torque Transmission3962 Nm
Transmissible Thrust121914 N
Transmissible Thrust (L.27,430.65
Transmissible Torque3962 N-m, 2,922 ft-lb
TypeB-LOC Series B103
UPC:662345058803
Withstand Temp. (Deg. F)Dependent on Application

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG710717746.29125Fenner Drives0.846.29 @ 25
thumbzoomMRO Supply81810183.68225Fenner Drives83.68 @ 25
thumbzoomsustainablesupply.comC163281295.15125Fenner Drives0.895.15 @ 25
kscdirect.comFEN T301065110.26125FENNER DRIVES110.26 @ 25
thumbzoomRaptor SuppliesAD4UGN142.842024125FENNER DRIVES142.842024 @ 25
