FLIR DM166

B076H6XQBT

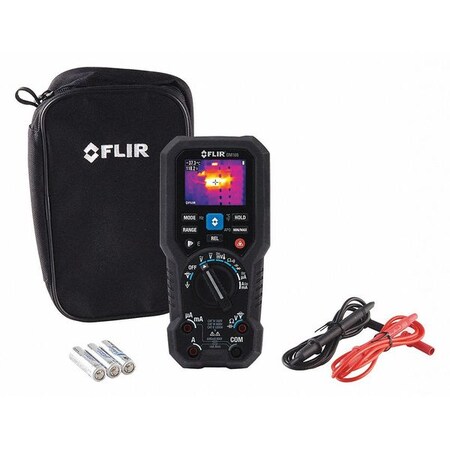

FLIR DM166 Thermal Imaging TRMS Multimeter with IGM, Black

FLIR DM166 Thermal Imaging TRMS Multimeter with IGM, Blackzoom

Attributes

Key Value
AC Current Measurement .Not Applicable
AC ResponseTRMS
AC Response CalculationTRMS
AC Voltage600 V
AC Voltage Measurement .Not Applicable
Audible ContinuityYes
Auto Power OffYes
Auto RangingYes
Bar GraphYes
Bar Graph IncludedYes
Basic AC Current Accura.+/-1.5%
Basic AC Voltage Accura.+/-1%
Basic DC Accuracy+/-0.5%
Basic DC Current Accura.+/-1.5%
Basic DC Voltage Accura.+/-0.50%
Batteries IncludedYes
Battery AccessYes
Battery ChemistryAlkaline
Battery SizeAA
Battery TypeAA Alkaline
Battery Voltage1.5V
Bluetooth CompatibleNo
Calibration Certificate.No
Capacitance Measurement.+/-2%
Capacitance Measurement.Not Applicable
Capacitance Range1 pF to 40 mF
Computer Interface Conn.None
ConditionNew
Current Leakage TestingNo
Data HoldYes
Data LoggingNo
DC Current Measurement .Not Applicable
DC Voltage600 V
DC Voltage Measurement .Not Applicable
Depth7.5 in
Diode TestYes
DisplayTFT LCD
Display TypeTFT LCD
DustproofYes
Dustproof - New_BROADDustproof
Duty CycleNo
FEATURES HOLD_MERCHTFT LCD Yes Yes
Frequency Measurement A.+/-1%
Frequency Measurement R.Not Applicable
Fuse AccessYes
Includes(3) Batteries, Soft Cas.
Instrument Counts6000, 6,000
Instrument Frequency Co.1 Hz to 50 kHz
Instrument Safety RatingCAT IV 300 V, CAT III 6.
InterfaceNone
Intrinsically SafeNo
Intrinsically Safe - AD.Dustproof
IP RatingIP40
ItemDigital Multimeter
ManufacturerFlir
Manufacturers Warranty .10 yr
Max. AC Amps10
Max. AC Volts600
Max. DC Amps10
Max. DC Volts600
Max. Ohms60 megohm
Maximum AC Current Meas.10 A
Maximum AC Voltage Meas.600 V
Maximum Capacitance Mea.40 mF
Maximum DC Current Meas.10 A
Maximum DC Voltage Meas.600 V
Maximum Frequency Measu.50 kHz
Maximum Operating Tempe.122 Degrees F
Maximum Resistance Meas.60 megaohm
Maximum Storage Tempera.140 Degrees F
Maximum Temperature Mea.752 Degrees F
MERCH HOLD - DMM Featur.No No Yes No Yes No No .
MERCH HOLD ACCURACY+/-0.50% +/-1% +/-1.5%.
Min-Max-Avg Button Incl.Yes
Min./Max. MemoryYes
Minimum AC Current Meas.0 A
Minimum AC Voltage Meas.0 V
Minimum Capacitance Mea.1 pF
Minimum DC Current Meas.0 A
Minimum DC Voltage Meas.0 V
Minimum Frequency Measu.1 Hz
Minimum Operating Tempe.14 Degrees F
Minimum Storage Tempera.-4 Degrees F
Minimum Temperature Mea.-40 Degrees F
Minimum/Maximum MemoryYes
Multimeter FeaturesDustproof, Thermal Imag.
Multimeter Features_COM.Thermal Imaging ; Dustp.
Multimeter Features_Fil.Thermal Imaging ; Dustp.
Multimeter StyleFull Size - Advanced Fe.
NIST Certification ByNot Certified
NIST Certification By M.Not Certified
Overall Height1.9 in
Overall Width3.4 in
Parameters MeasuredAC Current, AC Voltage,.
Peak HoldNo
Promotion RestrictionNot eligible for promot.
Removable ScreenNo
Resistance Measurement .+/-1.5%
Resistance Measurement .Not Applicable
Resolution3.75
Safety Rating_BACKGROUNDDM166 CAT III 600V, DM1.
Safety Rating_SUBHEADCAT III 600V; CAT IV 30.
SeriesFLIR (R) DM166
Special FeaturesIdentify Energized and .
StandardsCE, cULus
Temp. Range-40 Degrees to 752 Deg.
Temperature Measurement.+/-3%
Temperature Measurement.Not Applicable
Thermal ImagingYes
Thermal Imaging - New_B.Thermal Imaging
Thermal Imaging_ADDITIO.Dustproof
TypeHandheld
WaterproofNo
Waterproof or Dustproof.Dustproof
Weight15.1 oz
