Hayward TC1400S

B008HOTAOI

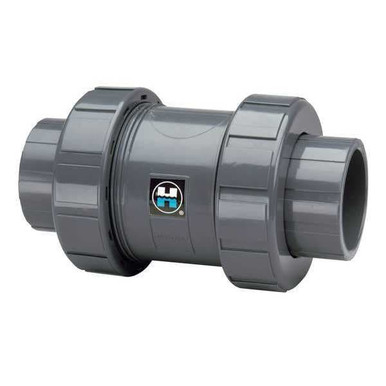

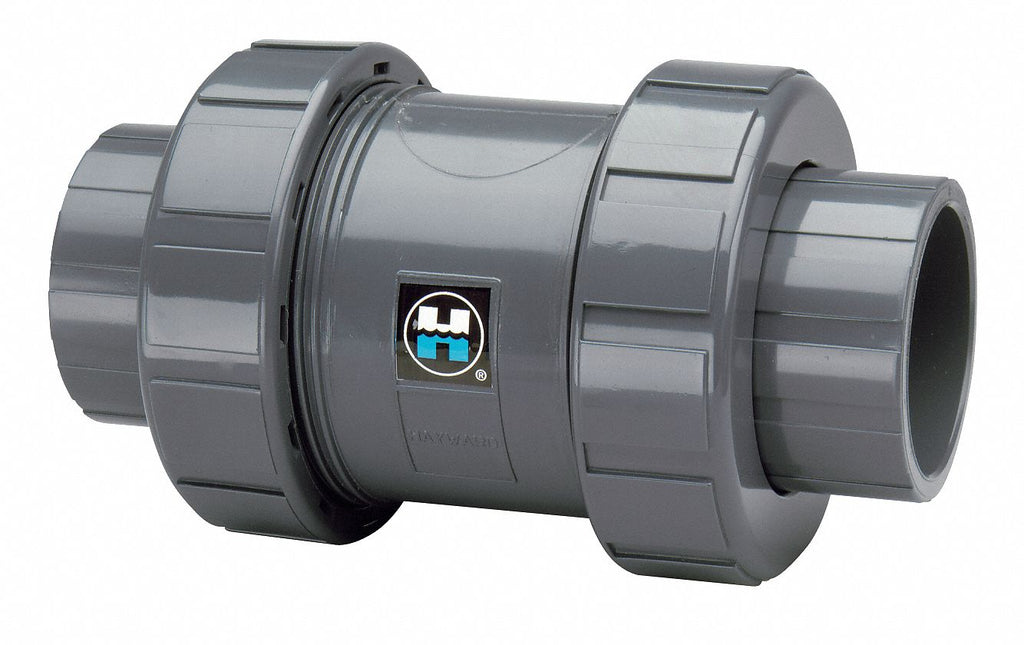

Hayward TC1400S Series TC True Union Ball Check Valve, Socket End, PVC with FPM Seals, 4" Size

Hayward TC1400S Series TC True Union Ball Check Valve, Socket End, PVC with FPM Seals, 4" Sizezoom

Attributes

Key Value
Application - ValvesProcess Piping
Ball MaterialPVC
Body MaterialPVC
Body Material - ValvesPVC
BrandHayward
Catalog Page NumberP-464
ColorDark Gray
ConnectionSocket x Socket
Connection TypeSocket x Socket, socket
Connection Type - Check.Socket x Socket
Country of OriginUSA
Country of Origin (subj.United States
Cracking Pressure3 psi, 3.0 psi
Cracking Pressure - Che.3.000 psi
Description:4" PVC True Union Ball .
End Stylesocket
Flow275 gpm
Flow - Valves275 gpm
Flow DesignSingle
Flow Rate275 gpm
Full Flow - ValvesYes
Inlet to Outlet Length12.94 in
International ShippingNo
ItemCheck Valve
Item - Check ValvesCheck Valve
Item Number18514
Length13 in, 12.94"
Length (Straight Wirewa.13 in
ManufacturerHAYWARD INDUSTRIAL PROD.
Manufacturer Part #TC1400S
MaterialPVC
Material of ConstructionPVC
Max. Pressure150 psi @ 70 Degrees F
Max. Steam Pressure - V.Not Rated
Max. Temp.140 Degrees F
Max. Temp. - Valves140 Degrees F, 140 Deg.
Max. Water Pressure - V.150 psi @ 70 Degrees F
Mechanism and Body Desi.Inline True Union
MFG Part #:TC1400S
Min. Temp. - Valves40 Degrees F, 40 Degre.
Mounting OrientationVertical
Mounting Orientation - .Vertical
Mounting PositionVertical (Flow Up)
MpnTC1400S
Nominal Size4 in
Overall Height8-9/16", 8 9/16 in
Pipe or Tube Size4 in
Pipe or Tube Size - Che.4 in
Pipe Size4"
Port TypeFull
Pressure Rating150 psi
SealFPM
Seal MaterialViton
Seal Material - Check V.Viton
Seat MaterialViton
Seat Material - Check V.Viton
SeriesTC Series
Size4"
SKUZO-G1100111
Softgoods MaterialFKM
StandardsNSF 61
Sub-CategoryPVC
SubCategoryPlumbing
Supplier:HAYWARD INDUSTRIAL PROD.
Temperature Rating140 deg F
TypeTrue Union
UPC610377166669
UPC:610377166669
Weight17.05 lbs
Width8.56", 8 9/16 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1100111558.99115Hayward17.7558.99 @ 1
thumbzoomsustainablesupply.comC2783579654.431In StockHayward17.7654.43 @ 1
grainger.caWWG5AAR4663.952812681In StockHAYWARD17.7663.95281268 @ 1
thumbzoomsimsupply.comZO-G1100111693.71In StockHayward693.7 @ 1
thumbzoomblackhawksupply.comTC1400S798.91In StockHayward798.9 @ 1
thumbzoomRaptor SuppliesAE2ZGA818.0119351In StockHAYWARD818.011935 @ 1
thumbzoomusplastic.com18514827.671In StockHayward17.05827.67 @ 1
kscdirect.comHAY TC1400S1452.561In StockHAYWARD INDUSTRIAL PRODUCTS1452.56 @ 1
