Hubbell GFP5305

B00NFKWFDC

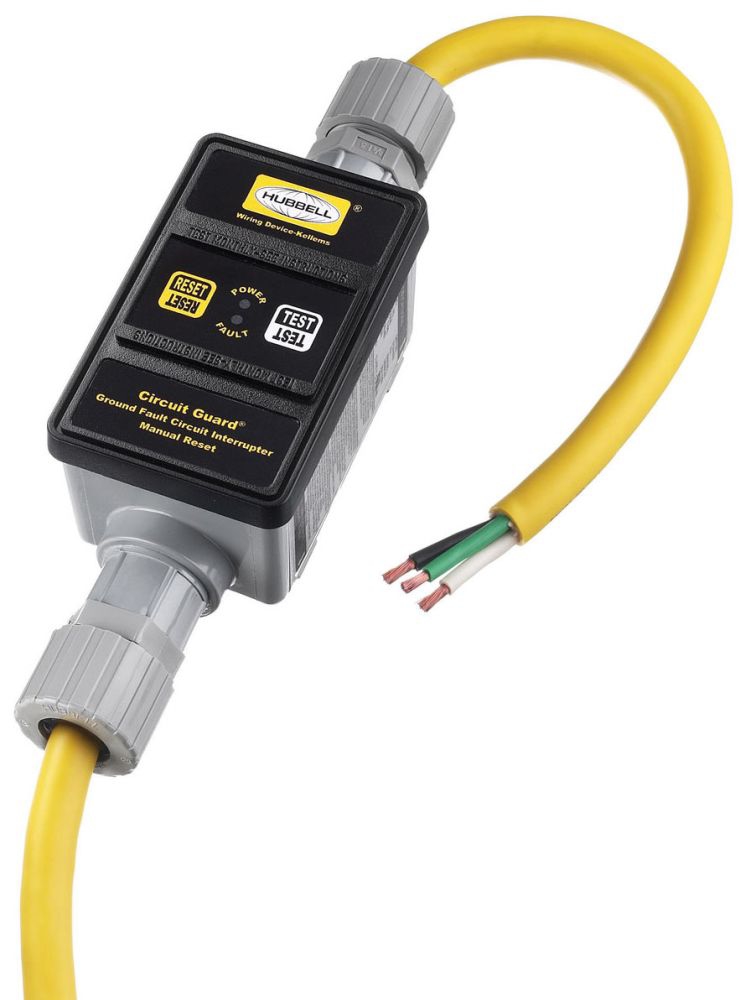

Hubbell GFP5305 Port GFCI, Manual Set, 30 amp, 3 Phase, 250V, 6'

Hubbell GFP5305 Port GFCI, Manual Set, 30 amp, 3 Phase, 250V, 6zoom

Attributes

Key Value
Amperage30 A
Amperage Rating30
Amps30
ApprovalsCSA, UL
BrandHubbell Wiring Device -.
Catalog NumberGFP5305
ColorBlack
Comments3 Phase
Conductor Size#10 AWG
Conductor size#10 AWG
Conductor typeCopper
ConnectivityPlug-In
ConstructionFabricated
Cord Gauge10/3 AWG
Cord Length6 ft, 6 '
Cord TypeSEOOW
Current / amperage rati.30 A
Current Rating30 A
Current rating30 A
Enclosure RatingNema 4X
EU RoHS indicatorNo
Family SeriesHubbell Cordsets, Circu.
Gross Weight4.5 lbs
Industry Standard(s)cCSA
InputWire Leads
ItemIndustrial Grade
Item NumberGFP5305
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberGFP5305
Material insulationElastomer
Material jacketPVC
Max. Amps30 A
NEMA Receptacle Configu.Bare Wire
Net Weight4.5 lbs
Number of conductors4
Number of Outlets0
Number of Poles3
Number of Wires4
O.D.0.335
OutputWire Leads
Outside Diameter0.335
Plug ConfigurationBare Wire
Plug Cord Length12 in
Portable GFCI Plug Cord.12"
Portable GFCI Receptacl.6 ft.
Product SeriesCircuit Guard
Range of Lengths5 to 10 ft.
Receptacle ConfigurationBare Wire
Receptacle Cord Length6 ft
ResetManual
Reset TypeManual
Self-TestingNo
StrandsMulti
StyleManual Set
Temperature rating-35 Degrees C to 66 Deg.
TypePortable, Straight Blade
UPC783585521268
Voltage250V AC, 250 VAC, 3 Pha.
Voltage Rating3 Phase 250 VAC, 3 Phas.
Voltage rating descript.3 Phase 250 VAC
Wire Size10 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comGFP5305378.4713Hubbell378.47 @ 3
thumbzoomZoroG1253725505.9913Hubbell Wiring Device-Kellems4.75505.99 @ 3
thumbzoomsustainablesupply.comC1165247620.3813Hubbell4.75620.38 @ 3
Grainger1DJH8635.0130HUBBELL WIRING DEVICE-KELLEMS635.0 @ 3
thumbzoomMRO Supply1018108656.013Hubbell Wiring656.0 @ 3
thumbzoomgordonelectricsupply.comGFP5305691.6513HUBBELL691.65 @ 3
thumbzoomGalcoGFP5305-HBBL702.8613Hubbell4.5702.86 @ 3
thumbzoomcrescentelectric.com475436841.0313Hubbell Wiring Device - Kellems841.03 @ 3
steinerelectric.com576322898.2613Hubbell Wiring Device-Kellems898.26 @ 3
Newark01J4138900.3613HUBBELL WIRING DEVICES900.36 @ 3
thumbzoomRaptor SuppliesAA9JFW1136.97066613HUBBELL WIRING DEVICE-KELLEMS1136.970666 @ 3
