Igus GFI-0607-04

B01N807R5T

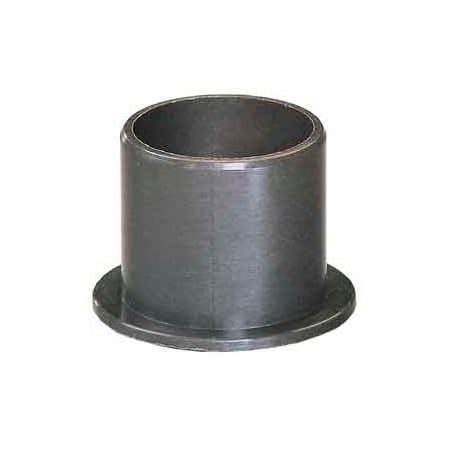

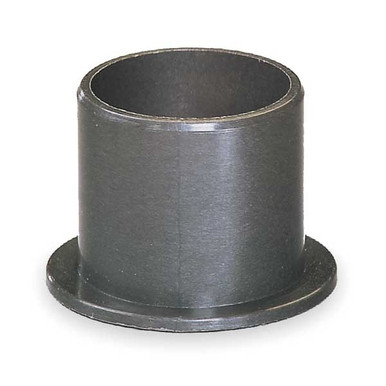

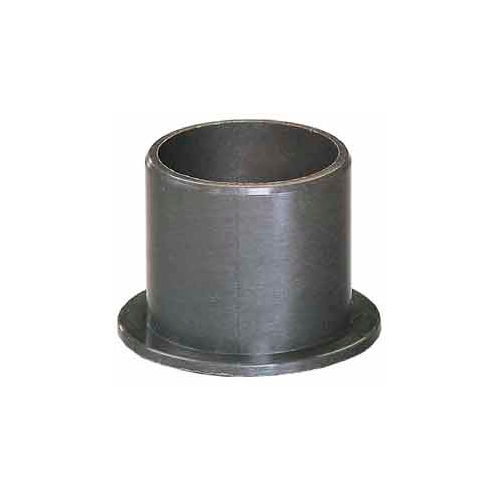

Flanged Bearing, 3/8 Idx1/6 In L, Pk5

Flanged Bearing, 3/8 Idx1/6 In L, Pk5zoom

Attributes

Key Value
ApplicationAgriculture Equipment, .
Bevel Length0.019 in
Bore Diameter3/8 in
Bore Diameter Tolerance+0.000 to +0.015 mm
BrandIgus
ColorMatte Gray
ColourMatte Gray
Country of Origin (subj.Germany
Current Stock42
Flange Dia. (In.)11/16 in
Flange Diameter0.687 in
Flange Thickness0.046 in
Flange Thickness (In.)3/64 in
Flange TypeFlanged
For EnvironmentVacuum
For Housing Bore Range0.4684 to 0.4691 in
For Shaft Size0.3731 to 0.374 in
Inside Dia.3/8 in
Inside Diameter3/8 in
International ShippingNo
ItemFlanged Sleeve Bearing
Length1/4 in
Length (Straight Wirewa.1/4 in
Load DirectionRadial
LubricationNo Lube System
Lubrication MethodEmbedded
Lubrication TypeSelf Lubricating
MaterialPolymer
Material GroupPlastic
Max. Pv12,000
Maximum PV12,000 lb/sq in-fpm
Maximum Temperature428 Degrees F
Minimum Temperature-40 Degrees F
MpnGFI-0607-04
Number of Pieces-
Outside Dia.15/32 in
Outside Diameter15/32 in
Overall Length1/4 in
Plain Bearing MaterialPolymer
Resistance PropertiesDust and Dirt Resistant.
SKUZO-G0313853
StandardsASTM C177, DIN 53452, D.
SubCategoryPower Transmission
System of MeasurementInch
Temp. Range (F)-40 Degrees to 266 Deg.
Temperature Range-40 Degrees F to 428 .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB4347811.926115igus1.9261 @ 5
thumbzoomZoroG1049496842.591055Igus2.59 @ 10
thumbzoomNational Supply Network025603323.18855Igus3.188 @ 5
thumbzoomsustainablesupply.comC16737546.5915igus0.026.59 @ 5
grainger.caGUS2MTL710.633057915IGUS0.0210.6330579 @ 5
thumbzoomRaptor SuppliesAC2TPQ13.173556515IGUS13.1735565 @ 5
thumbzoomsimsupply.comZO-G031385315.63142Igus15.63 @ 5
