Johnson Controls A19AAF-4C

B00COOUH2G

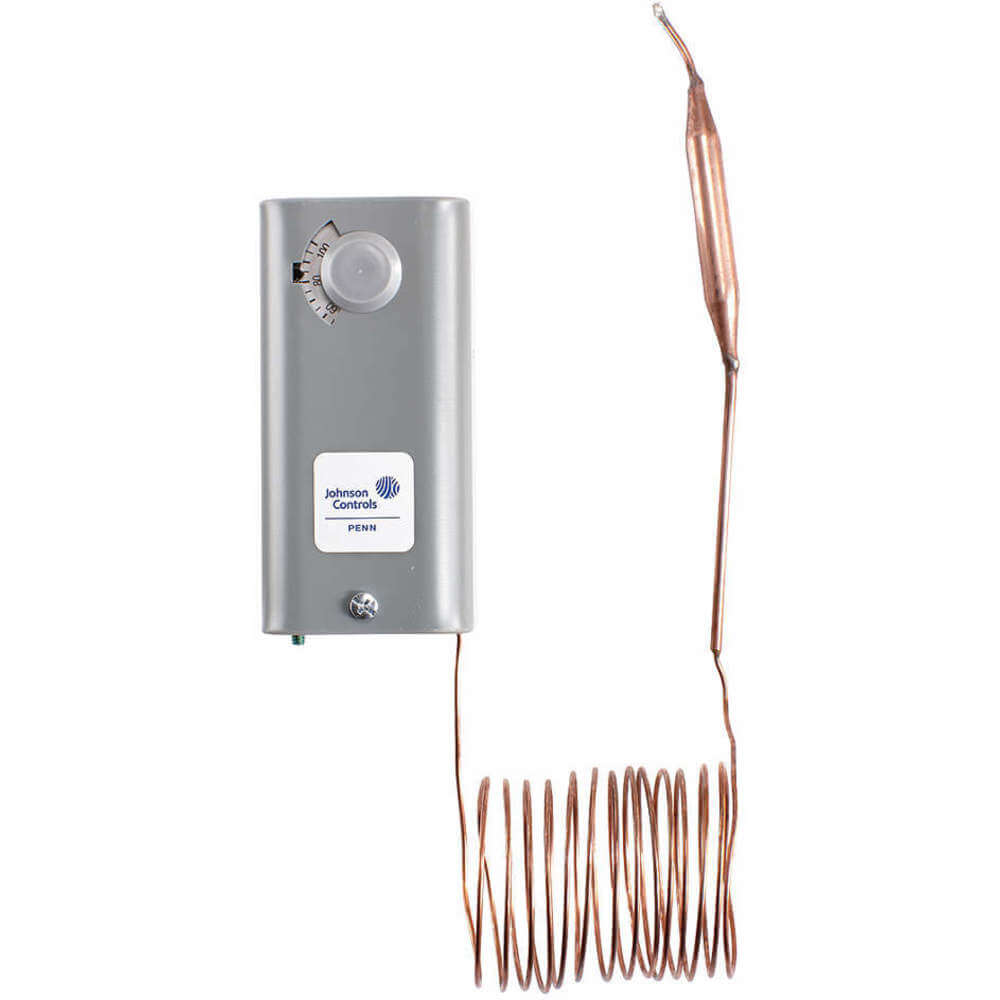

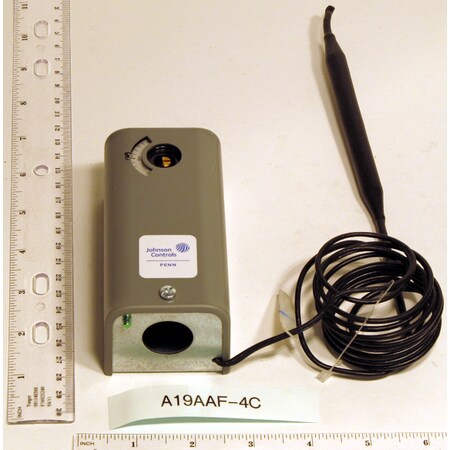

Johnson Controls - A19AAF-4C - Line Volt Mechanical Tstat for Heating and Cooling, 120 to 277VAC

Johnson Controls - A19AAF-4C - Line Volt Mechanical Tstat for Heating and Cooling, 120 to 277VACzoom

Attributes

Key Value
ApplicationHeat or Cool
Bulb Diameter1/2 in
Bulb Length5 3/4 in
Capillary Length72 in
Capillary Length/Bulb D.6 ft Capillary, 5 3/4 i.
Changeover TypeManual
ColorGray
Compatible System TypeCooling Towers
Contact Rating120V AC, 240V AC
Contact Rating Resistiv.10 A
Contact Rating Resistiv.10 A
Contact Rating Resistiv.10 A
Control TypeScrewdriver
Country of Origin (subj.United States, Mexico
Depth1 13/16 in
Differential1.5 Degrees F
Differential TypeFixed
Enclosure ColorGray
Enclosure ColourGray
Enclosure MaterialSteel
Enclosure NEMA RatingNEMA 1
Enclosure TypeGalvanized/Steel
Family SeriesJohnson Controls Miscel.
Full Load Amps @ 120V AC6 A
Full Load Amps @ 120VAC15 A
Full Load Amps @ 240V AC3 A
Full Load Amps @ 240VAC3 A
Gross Weight0 lbs
Height4 13/32 in
Inductive Amps @ 120V6 A
Inductive Amps @ 208V3.4 A
Inductive Amps @ 240V3 A
ItemLine Volt Mechanical Ts.
Item NumberA19AAF-4C
Key FeaturesThe Rubber-Coated Bulb .
Locked Rotor Amps @ 120V36 A
Locked Rotor Amps @ 240V18 A
ManufacturerJohnson Controls
Manufacturer Part NumberA19AAF-4C
Maximum Control Tempera.90 Degrees F
Maximum Operating Tempe.170 Degrees F
Minimum Control Tempera.40 Degrees F
Minimum Operating Tempe.-35 Degrees F
Mounting TypeFlat Surface, Surface M.
Net Weight0 lbs
Number of Poles1
Number of Relay Inputs0
Number of Relay Outputs0
Number of Switches1
Overall Depth1 3/4 in
Overall Height4 1/2 in
Overall Width2 1/4 in
Pilot Duty Contacts (VA)125 VA
Pilot Duty Rating125 VA @ 24 to 277V AC
Remote Sensing Bulb Inc.Yes
Remote Sensing Capabili.Yes
Resistive Amps @ 208V AC10 A
Resistive Amps @ 208VAC10 A
Sensing Bulb Dia.3/8 in
Sensing Bulb Length5 3/4 in
Sensor LocationRemote
Sensor TypeBulb, Hydraulic Capilla.
StandardsUL E6688; CSA LR948/481.
Switch ActionOpen/Close on Rise
Switch TypeSPDT
Switch Type/ActionSPDT, Open/Close on Rise
Temperature Control Ran.40 Degrees to 90 Degre.
Temperature Differential1.5 Degrees F
Temperature ScaleFahrenheit/Celsius
Thermostat Control Range40 Degrees to 90 Degre.
Thermostat Heating/Cool.Heating/Cooling
Thermostat ItemLine Voltage Mechanical.
Thermostat ProgrammableNo
Thermostat Switch TypeSPDT
Thermostat TypeIndoor Single-Stage Con.
Thermostat Voltage120 to 277V AC
Voltage120 to 277V AC
Width2 5/32 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Global IndustrialWBB476350117.951In StockJohnson Controls117.95 @ 1
alliedcontrols.comA19AAF-4C144.91In StockJohnson Controls144.9 @ 1
thumbzoomblackhawksupply.comA19AAF-4C146.411In StockJohnson Controls146.41 @ 1
thumbzoomVoomi SupplyA19AAF-4C159.481In StockJohnson Controls159.48 @ 1
thumbzoomGalcoA19AAF-4C-JHSN172.561In StockJohnson Controls172.56 @ 1
thumbzoomZoroG7024833178.061In Stock26Johnson Controls178.06 @ 1
KeleA19AAF-4C204.261In StockJohnson Controls204.26 @ 1
thumbzoomNational Supply NetworkB476350217.751In StockJohnson Controls Inc217.75 @ 1
grainger.caJHCA19AAF4C259.497419181In StockJOHNSON CONTROLS1.05259.49741918 @ 1
thumbzoomRaptor SuppliesAG9MLE323.0258851In StockJOHNSON CONTROLS323.025885 @ 1
