Leeson 112626.00

B00EP2SK9W

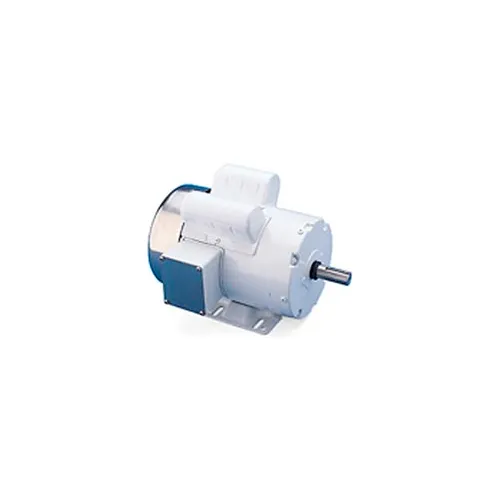

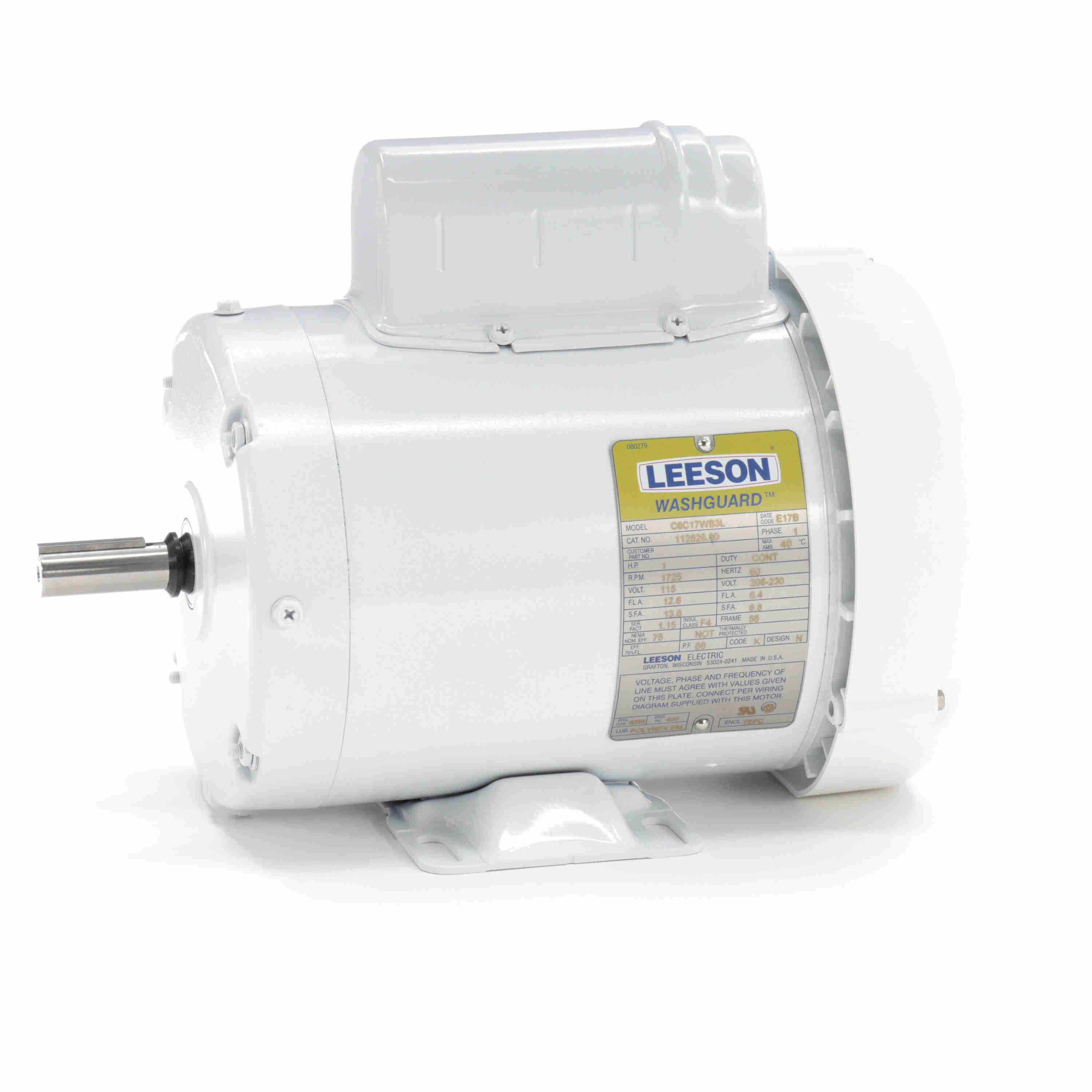

Leeson 112626.00 White Epoxy Painted Washguard Motor, 1 Phase, 56 Frame, Rigid Mounting, 1HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 112626.00 White Epoxy Painted Washguard Motor, 1 Phase, 56 Frame, Rigid Mounting, 1HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating12.8/6.4 A
Amps12.8/6.4
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall, 11.81
BearingsBall
Body Dia.7.4 in
BrandLeeson
CategoryElectric Motor
Class/GroupC6C17WB3
CompositionSteel
Conduit BoxCast Aluminum with Buna.
ConstructionRolled Steel
Current Stock3
Description:1HP..1725RPM.56.TEFC./V.
Dimensions11-3/4 in L
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency75, 75.0%
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight33.00
Family SeriesLeeson Motors, Washguar.
FL Amps12.8/6.4
FL Efficiency75
Frame56
Frame MaterialRolled Steel
Frame RemarksWashdown
Frequency60
Frequency Rating60 Hz
Full Load Amps6.4
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassClass F, F
International ShippingNo
Inverter RatedNo
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number112626.00
KW0.75
Lead TimeExpected to ship in 1-2.
Length Less Shaft9 13/16 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number112626.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:112626.00
Model NumberC6C17WB3
Motor ApplicationWashdown
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Shell Length6.25"
Motor Thermal ProtectionNone
mountingRigid Base
MountingFoot Mount, Rigid Base
Mounting TypeFoot Mount, Rigid, Rigi.
Mpn112626.00
Nameplate RPM1,725
NEMA DesignN
NEMA Frame56
Net Weight33 lbs
Nominal Voltage120 VAC, 208 VAC, 240 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length11.81 ", 11.75", 11 3/4.
Overload ProtectionNone
Part Number112626.00
Phase1, Single, 1 ph
Product SeriesWashguard
Product TypeWashdown Duty, Capacito.
RotationSelective CCW, Reversib.
RPM1,800 RPM, 1700 - 1800,.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88, 1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight36 lbs.
SKUZO-G4242117
Special FeaturesCapacitor Start Motors
Speed (RPM)1725
StandardsBISSC, CE, CSA, UL
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
UPC691720011027
UPC:691720011027
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com112626403.01In StockLEESON403.0 @ 1
AmazonTPB01MF5H5BI539.031In Stock5Leeson / Regal Beloit539.03 @ 1
thumbzoomMRO Supply2525642559.21In StockLeeson559.2 @ 1
thumbzoomZoroG4242117586.99116Leeson32.45586.99 @ 1
thumbzoomemotorpro.com112626.00594.931In StockLeeson36.0594.93 @ 1
thumbzoomGlobal IndustrialWBB228133639.01In StockLeeson639.0 @ 1
thumbzoomDealers Electric112626.00643.571In StockLeeson36.0643.57 @ 1
thumbzoomsimsupply.comZO-G4242117684.0713Leeson684.07 @ 1
thumbzoommotorsandcontrol.comLE-112626.00688.3118Leeson Electric33.0688.3 @ 1
us.rs-online.com73397286693.711In StockLeeson693.71 @ 1
thumbzoomGalco112626.00-LEES693.711In StockLeeson33.0693.71 @ 1
kscdirect.comLEE 112626.00721.31In StockLEESON ELECTRIC CORPORATION721.3 @ 1
thumbzoomWalker Industrial112626-00823.381In Stock17Leeson823.38 @ 1
thumbzoomRaptor SuppliesAJ2QHY1148.11064551In StockLEESON1148.1106455 @ 1
thumbzoompumpproducts.com112626.001183.341In StockLeeson1183.34 @ 1
