- mpn8300-PLR
- brandname: Leviton
- manufacturername: Leviton

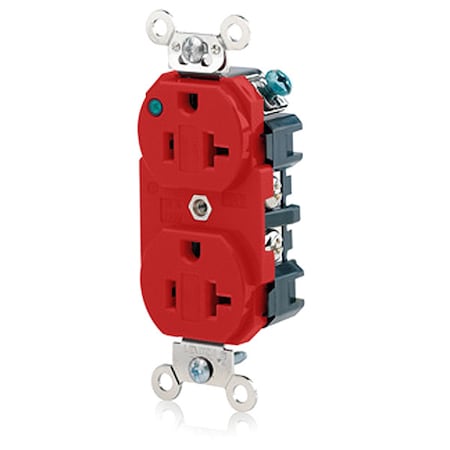

Leviton 8300-PLR 20-Amp, 125 Volt, Duplex Receptacle, Hospital Grade, Straight Blade, Self Grounding, Power Indication, Red
- Brand: Leviton
- PartNumber: 8300-PLR
- Model: 8300-PLR
- Color: Image
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Leviton
- Label: Leviton
Attributes
| Key | Value |
|---|
| (2P) Double Pole | Pole |
| -40?C | Start Temp. (Min) |
| 07847710908 | UPC |
| 10-Year Limited | Warranty |
| 125 Volt | Voltage (V) |
| 20 Amp | Amperage |
| 20A | Amp Rating |
| 3 | Wire Number |
| 5-20R | NEMA |
| 60?C | Start Temp. (Max) |
| 8300-PLR | Stock Code |
| Additional Electrical P. | Standard Protection |
| Additional Electrical P. | Standard Protection |
| Amperage Rating | 20A, 20 A |
| Amperage Rating: | 20 A |
| Amps - Plugs and Recept. | 20 A |
| Application Environment | Extra Heavy-Duty Hospit. |
| Category | Electrical Receptacles |
| Color | Red |
| Color - Plugs and Recep. | Red |
| Color Family | Red |
| Color: | Red |
| Connection Orientation | Straight |
| Connection: | Back and Side Wired |
| Contact Material | Nickel-Plated Brass |
| Country of Origin | MX - Mexico, MX |
| Country of Origin (subj. | Mexico |
| Cover Type | No Cover |
| Current Rating | 20 A |
| Description | Smooth Face |
| Description: | HG PILOT LIGHT DUPLEX R. |
| Dielectric Strength: | 2000 (Min.) V |
| Dimensions | 46 in H x 1.53 in W x 1. |
| ECCN | EAR99 |
| Environmental Condition. | Flammability (Rated V-2. |
| Face Plate Height | 2.78 in |
| Face Plate Width | 1.53 in |
| For additional options . | Notes |
| GFCI | No |
| Grade | Hospital Grade Fed. Spe. |
| Grounding | Grounded |
| Hazardous Location Spec. | Not Applicable |
| Horsepower | 1 hp |
| Horsepower Rating | 1 hp |
| Housing Color | Red |
| Housing Material | Nylon |
| HP | 1 hp |
| Includes Mounting Hardw. | Yes |
| Item | Receptacle |
| Item - Plugs and Recept. | Duplex Receptacle Outlet |
| Key Resistance Properti. | Standard Resistance |
| Leviton | Brand |
| Manufacturer | Leviton Manufacturing, . |
| Material | Thermoplastic, Nylon, N. |
| Material: | Thermoplastic |
| Maximum Operating Tempe. | 60 Degrees C |
| Maximum Wire Size | 10 AWG |
| MFG Part #: | 8300-PLR |
| Minimum Operating Tempe. | -40 Degrees C |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-Ce. | 3.28 in |
| Mount Type | Flush |
| Mounting: | Wall Box |
| NEMA Enclosure Rating | Not Rated |
| NEMA Rating | NEMA 5-20R |
| NEMA Rating: | 5-20R |
| NEMA Receptacle Configu. | 5-20R |
| NEMA Receptacle Configu. | 5-20R |
| No. of Poles | 2 |
| No. of Wires | 3 |
| Number of Outlets | 2 |
| Number of Poles | 2 |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Number Of Poles: | 2 |
| Number of Wires | 3 |
| Number Of Wires: | 3 |
| Nylon | Material |
| Outlet Type - Plugs and. | Duplex |
| Overall Depth | 1.11 in |
| Phase: | 1 |
| Polarized | Yes |
| Power Indicator | Yes |
| Receptacle Type | Duplex, Straight Blade |
| Red | Color |
| Resistance Properties | Not Applicable |
| Size: | 46 H x 1.53 W x 1.11 D . |
| Special Features | Power Indication |
| Standard Duplex Outlets | Family |
| Standard Pack: | Order QTY must be in mu. |
| Standard: | NEMA (WD-1, WD-6);ANSI . |
| Standards | ANSI C73, CSA C22.2 No.. |
| Sub-Category | Duplex Receptacles |
| Supplier: | LEVITON |
| Temperature Rating | -40 to 60 deg C |
| Temperature Rating: | -40 to +60 DEG C |
| Terminal Type | Back/Side Wire |
| Type | Self-Grounding, 1-Phase. |
| Type: | Straight Blade;Duplex O. |
| UL / CSA Listed | UL Listed |
| UL 94 Flammability Rati. | V-2 |
| UNSPSC | 39121406 |
| UPC | 078477109083 |
| UPC: | 078477109083 |
| Visual Indicator Lights | Power Connected |
| Voltage | 125 |
| Voltage - Plugs and Rec. | 125VAC |
| Voltage Rating | 125V AC, 125 VAC |
| Voltage Rating: | 125 V |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size: | 14-10 AWG |
| Wiring Method - Plugs a. | Back and Side |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | electricalparts.com | 8300-PLR | 6.1488 | 1 | In Stock | | Leviton | | 6.1488 @ 1 |
 | Platt.com | 0581505 | 13.1 | 1 | 1 | | Leviton | | 13.1 @ 1 |
 | Zoro | G004256059 | 22.0 | 50 | In Stock | 26 | Leviton | 2.54 | 22.0 @ 50 |
| kscdirect.com | LEV 8300-PLR | 22.06 | 1 | In Stock | | LEVITON | | 22.06 @ 1 |
 | gordonelectricsupply.com | 8300-PLR | 22.22 | 1 | In Stock | 755 | LEVITON | | 22.22 @ 1 |
 | improvedepot.com | 868195 | 24.99 | 1 | In Stock | | Leviton | | 24.99 @ 1 |
| steinerelectric.com | 72325 | 26.41 | 1 | In Stock | | Leviton | | 26.41 @ 1 |
 | turtle.com | LEV 8300-PLR | 29.49 | 1 | In Stock | | Leviton | | 29.49 @ 1 |
| Dale-Electric | 8300-PLR | 30.48 | 1 | In Stock | | Leviton Manufacturing | | 30.48 @ 1 |
 | Radwell | 8300-PLR | 36.0 | 50 | In Stock | | LEVITON | | 36.0 @ 50 |
 | Lighting Supply | 8300-PLR | 43.39 | 1 | In Stock | | Leviton | | 43.39 @ 1 |
| Graybar | 22069176 | 43.6016 | 1 | In Stock | | Leviton | | 43.6016 @ 1 |
| us.rs-online.com | 72377337 | 49.63 | 50 | In Stock | | Leviton | | 49.63 @ 50 |
 | bulbspro.com | 8300-PLR | 62.4 | 1 | In Stock | | Leviton | | 62.4 @ 1 |
 | National Supply Network | B384640 | 312.51 | 2 | In Stock | | LEVITON MFG CO., INC | | 312.51 @ 2 |
