Marathon Electric X087

mpnX087
brandname: MARATHON
manufacturername: MARATHON

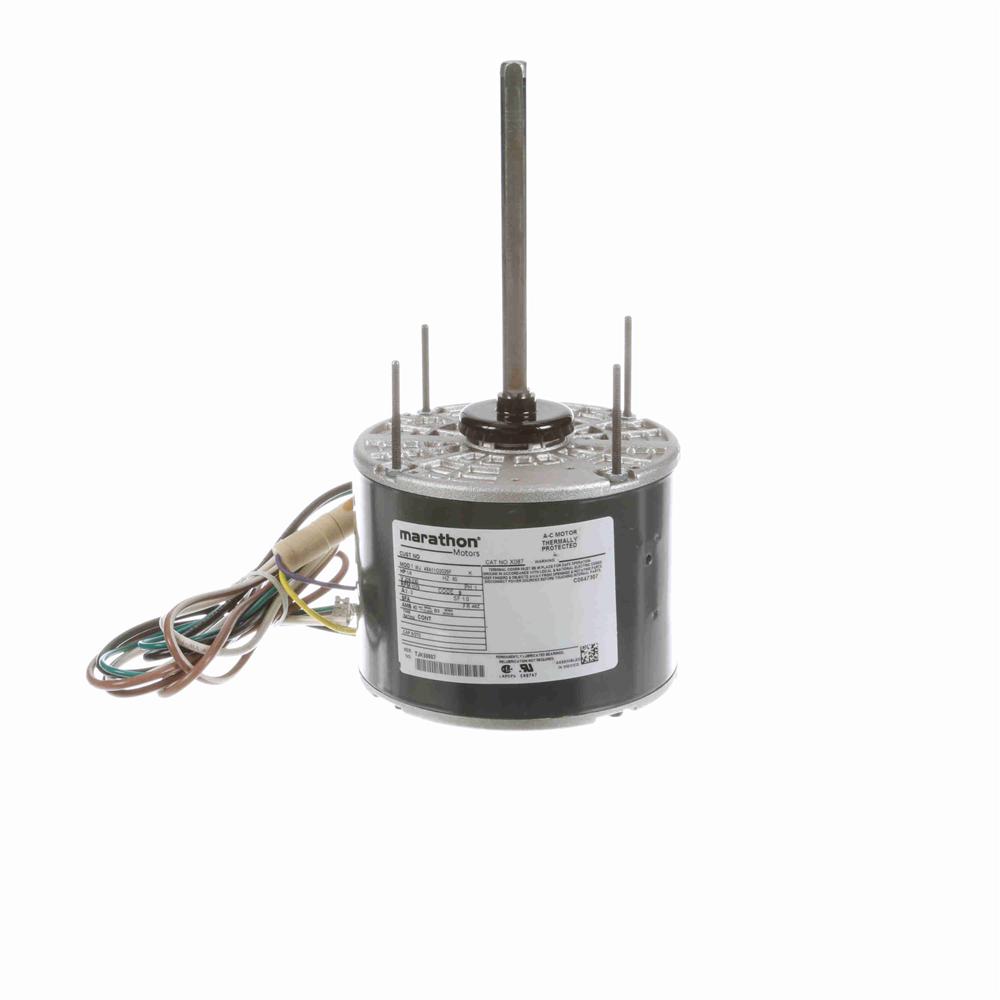

Marathon X087 HVAC Motor

Marathon X087 HVAC Motor

zoom

Brand: Marathon Electric
PartNumber: X087
Binding: Misc.
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Alternate Mfr Part Numb.	048A11O2029
Amps	2/2
Bearings	Ball
Capacitor	5MFD/370VAC Required
Current Rating	2.0 to 2.0 A
Duty Cycle	Continuous
Efficiency	64, 0.64
Enclosure Material	Steel
Enclosure Type	OAO (Open Air Over), Op.
enclosure type:	OAO (Open Air-Over)
Frame	48Z
frame material:	Rolled Steel
frame size:	48Y
Frequency	60 Hz
frequency rating:	60 Hz
full load current:	2.00 A
Horsepower Rating	0.25 HP
HP	1/4
Hz	60
Insulation Class	B
Insulation Type	Class B
Manufacturer Model #	048A11O2029
Maximum Ambient Tempera.	40? C
motor category:	Condenser Fan Motor
Motor Diameter	5-5/8"
motor horsepower:	1/4 hp, 0.25 hp
motor phase:	1 ph
Motor Shell Length	3.75"
motor supply voltage:	208-230 V
Mounting	Stud
Mounting Orientation	Horizontal
Mounting Type	Round - Extended Studs
mounting type:	Round/Extended Studs
Number of Speeds	1
Overall Length	11.19"
Phase	1, 1 Phase
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible
RPM	1075 RPM, 1075
Service Factor	1
service factor:	1.00
Shaft Diameter	1/2"
shaft diameter:	0.50 in
Shaft Length	6.06"
Ship Weight	12 lbs.
Special Features	Service Factor - 1
Standards	UL Recognized
standards met:	UL, CSA
Supply Voltage	208-230 VAC
synchronous rpm:	1200 rpm
Thermal Protection	Automatic
Type	Permanent Split Capacit.
UPC Code	722856037459
Volts	208, 230
weight:	12 lbs

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	motionindustries.com	04488852	121.4	1	In Stock		Marathon Electric		121.4 @ 1
	emotorpro.com	X087	134.37	1	In Stock		Marathon	12.0	134.37 @ 1
	us.rs-online.com	72238261	169.77	1	In Stock		Marathon Motors		169.77 @ 1
	Guardian	MARSX087	190.83	1	In Stock		Marathon		190.83 @ 1
