Marathon Electric X085

mpnX085
brandname: Marathon Electric
manufacturername: Marathon Electric

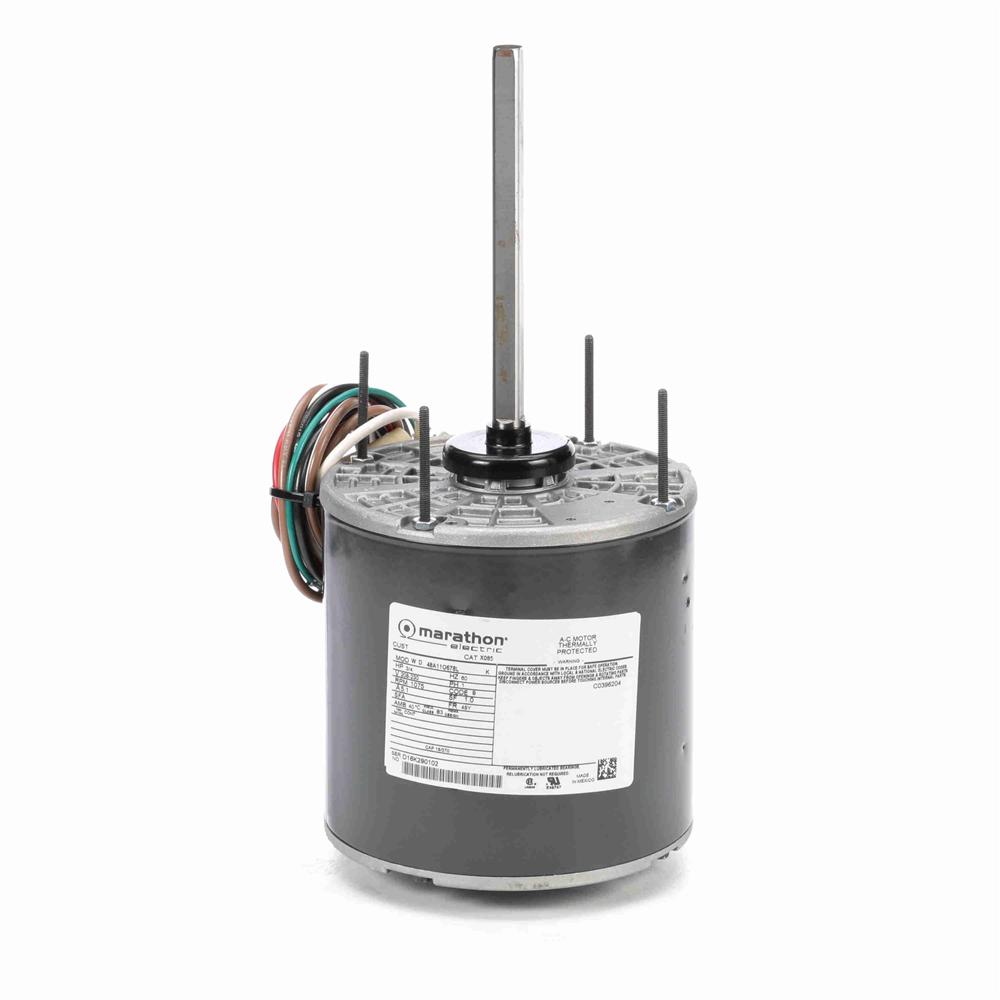

Marathon X085 48Y Frame Open Air Over 48A11O678 Condenser Fan Motor 3/4 hp, 1075 RPM, 208-230 VAC, 1 Phase, 2 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X085 48Y Frame Open Air Over 48A11O678 Condenser Fan Motor 3/4 hp, 1075 RPM, 208-230 VAC, 1 Phase, 2 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

zoom

Brand: Marathon Electric
PartNumber: X085
Model: MX085
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	048A11O678
Amps	5.1
Approvals	CSA, UR
Bearing Type	Ball
Bearings	Ball
Capacitor	15MFD/370VAC Required
Composition	Rolled Steel
Current Rating	5.1 A
Duty Cycle	Continuous
Efficiency	0.66, 66
Efficiency %	66 %
Enclosure	OPAO, Open Air Over
Enclosure Material	Steel
Enclosure Type	OAO (Open Air Over), Op.
Family Series	Marathon Electric Motors
Frame	48Y
Frequency	60 Hz
Full Load Current	5.1 A
Gross Weight	0 lbs
Horsepower	3/4 hp
Horsepower Rating	0.75 HP
HP	3/4
Hz	60
Insulation Class	B
Insulation Type	Class B
Item Number	X085
Kilowatts	0.56 kW
Manufacturer	Marathon Electric
Manufacturer Model #	048A11O678
Manufacturer Part Number	048A11O678
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Shell Length	5"
Mounting	Stud
Mounting Orientation	Horizontal
Mounting Type	Round - Extended Studs
Net Weight	18 lbs
Number of Poles	6
Number of Speeds	2
Overall Length	12.44 ", 12.44"
Phase	1, 1 Phase
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible
RPM	1075 RPM, 1075, 1,075 R.
Service Factor	1
Shaft Diameter	0.5 ", 1/2"
Shaft Length	6.06"
Ship Weight	19 lbs.
Special Features	Service Factor - 1
Standards	UL Recognized
Supply Voltage	208-230 VAC
Thermal Protection	Automatic
Type	HVAC/R Motors, NEMA Mot.
UPC Code	722856037558
Voltage	208-230
Voltage (AC)	208-230 VAC
Volts	208, 230

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Galco	X085-MARA	73.82	24	In Stock		Marathon Electric	18.0	73.82 @ 24
	MRO Supply	2269429	74.21	1	In Stock		Marathon Electric		74.21 @ 1
	us.rs-online.com	72237918	90.83	1	In Stock		Marathon Motors		90.83 @ 1
	asapelectricmotors.com	MARX085	264.09	1	In Stock		MARATHON		264.09 @ 1
	emotorpro.com	X085	304.3	1	In Stock		Marathon	19.0	304.3 @ 1
	midwestapplianceparts.com	X085-MT-P	315.6	1	In Stock		Marathon		315.6 @ 1
	Guardian	MARSX085	396.3	1	In Stock		Marathon		396.3 @ 1
	industrialmotors.com	X085	402.6	1	377		MARATHON ELECTRIC		402.6 @ 1
