- mpn5KCR46MN0093
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

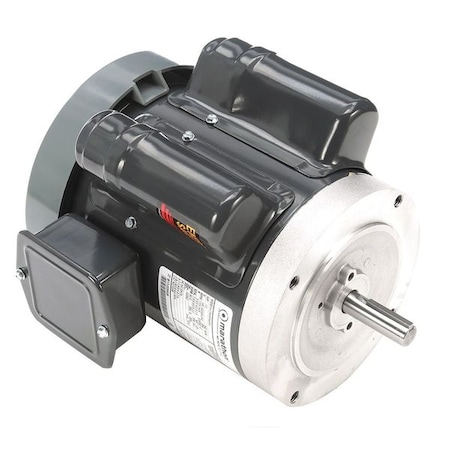

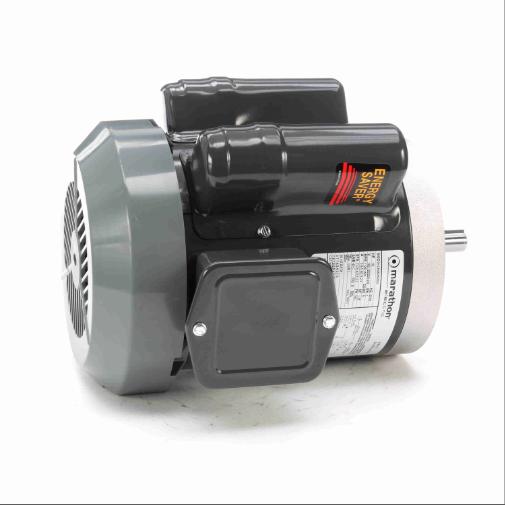

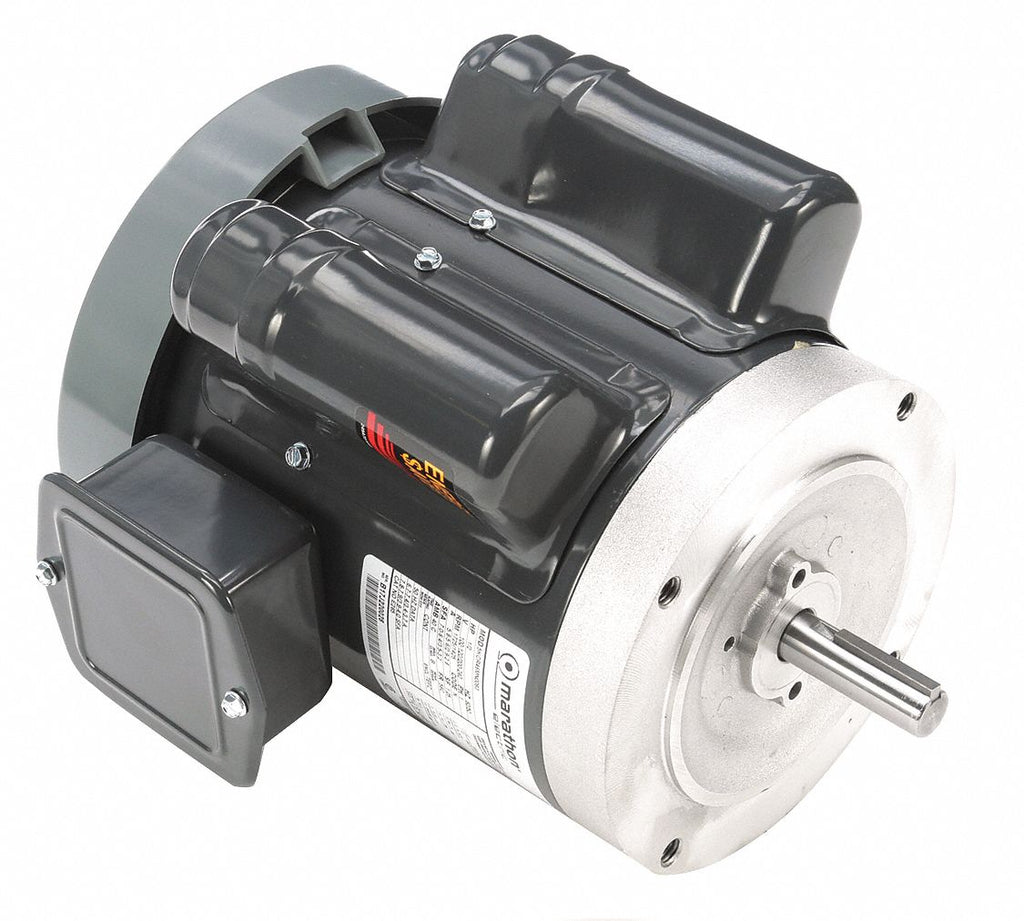

GP Mtr, CS, TEFC, 1/2 HP, 1725 RPM, 56C
- Brand: Marathon Industries
- PartNumber: 5KCR46MN0093
- PackageQuantity: 1
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Brand | Marathon Motors |
| Composition | Rolled Steel |
| Current Stock | 9 |
| Efficiency % | 74 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 56C |
| Frame Remarks | footless |
| Gross Weight | 26.685 lbs |
| Horsepower | 1/2 hp |
| HP | 1/2, .50 |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 5KCR46MN0093 |
| Kilowatts | 0.37 kW |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 9 15/16 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | E265 |
| Manufacturers Warranty . | 1 yr |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| mounting | C-face (NO base) |
| Mounting Type | Round |
| Mpn | 5KCR46MN0093 |
| Nameplate RPM | 1,725 |
| NEMA Frame | 56C |
| Net Weight | 26.685 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Overall Length | 11 13/16 in |
| Phase | 1 |
| RPM | 1800, 1,725 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| SKU | ZO-G3045743 |
| Standards | CSA Certified, UL Listed |
| SubCategory | Motors/Ac Motors |
| Voltage | 115/230V AC |
| Voltage (AC) | 110-120 VAC, 200 VAC, 3. |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 100-120/200-240 |
