MEAN WELL

B07KJNPQFS

Mean Well HEP-320-24A Single Output Switching Power Supply 320.16W 24V 13.34A, IP65, with PFC Function, Vo/Io Adjustable w/Potmeter, Input: 90~305 VAC, 127~431 VDC.

Mean Well HEP-320-24A Single Output Switching Power Supply 320.16W 24V 13.34A, IP65, with PFC Function, Vo/Io Adjustable w/Potmeter, Input: 90~305 VAC, 127~431 VDC.zoom

Attributes

Key Value
AC inrush current (max.)COLD START 70A at 230VAC
ApplicationsITE (Commercial)
Approval AgencyCB, CE, cURus
ASINB07K37B53L
Base Product NumberHEP-320
CategoryPower Supplies - Extern.
Connection InputSJTW 18AWGx3C(30cm)
Current - Output 113.34 A
Current adjustment range60%~100%
DescriptionAC/DC CONVERTER 24V 320W
Detailed DescriptionEnclosed AC DC Converte.
Digi-Key Part Number1866-2277-ND

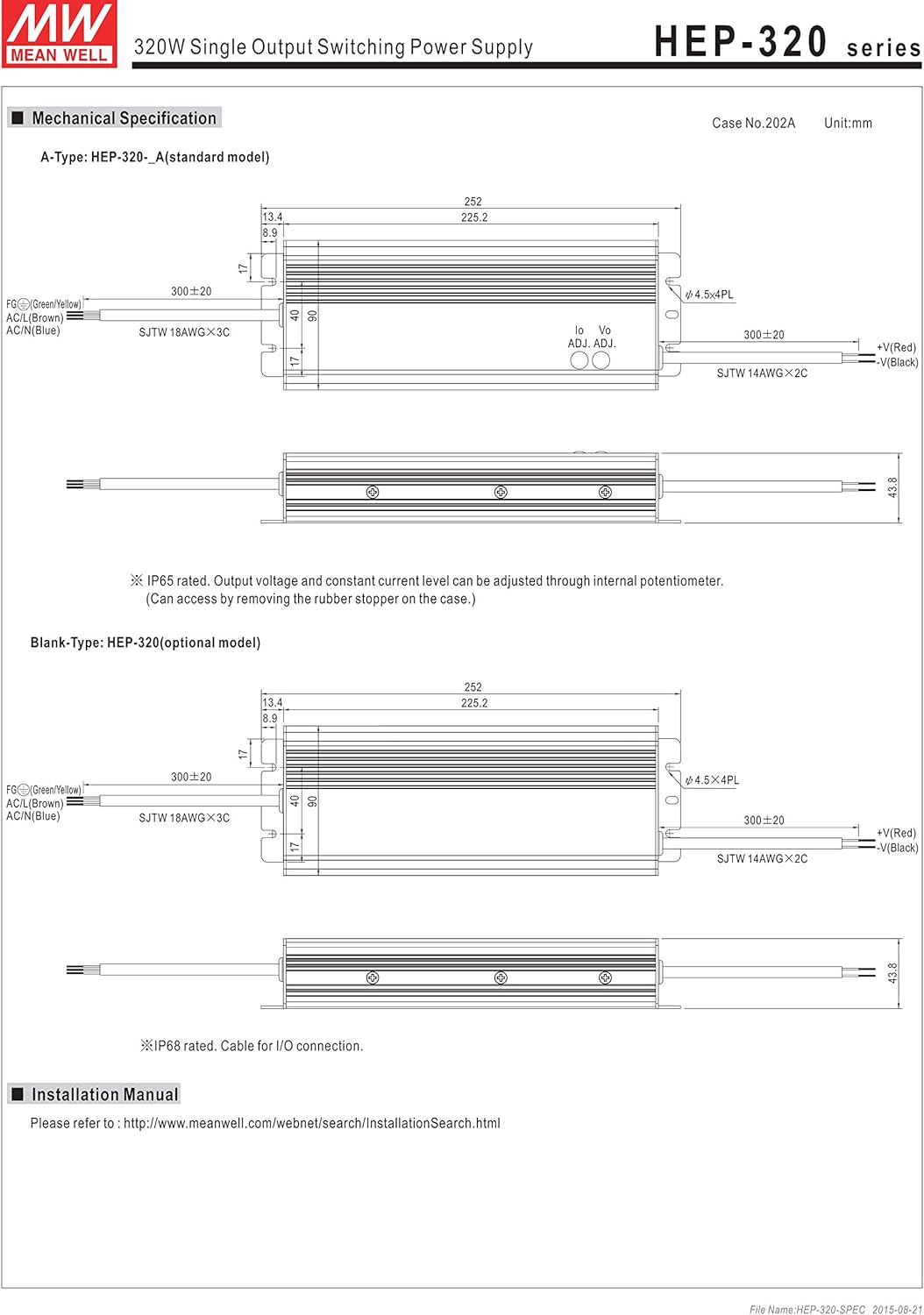

Dimension (LxWxH) (mm)252x 90 x 43.8
Efficiency94%
FeaturesAdjustable Output, IP65.
Is Discontinued By Manu.No
Item model numberHEP-320-24A
ManufacturerMEAN WELL USA Inc.
Manufacturer Product Nu.HEP-320-24A
Manufacturer Standard L.14 Weeks
MfrMEAN WELL USA Inc.
Minimum Load Required-
Mounting TypeChassis Mount
Number of Outputs1
Operating Temperature-55?C ~ 70?C (With Dera.
Output Current13.3 A
Output Power1010 W
Output Voltage24 VDC
Over-voltage protection105%~135% rated output .
PackageBox
Power (Watts)320W
Primary TypeAC-DC
Product StatusActive
Safety standardsUL62368-1,IEC62368-1, I.
SeriesHEP-320 (320W), HEP-320.
Size / Dimension9.92" L x 3.54" W x 1.7.
TypeEnclosed
Voltage - Input90 ~ 305 VAC, 127 ~ 431.
Voltage - Isolation3.75 kV
Voltage - Output 124V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Voltage - Output 6-
Withstand voltageI/P-O/P: 3.75KVAC, I/P-.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHEP-320-24A119.0127MEAN WELL119.0 @ 1
thumbzoomNewark44AC5237142.521In StockMEAN WELL142.52 @ 1
thumbzoompowersupplymall.comHEP-320-24A147.951In StockMean Well147.95 @ 1
AmazonTPB0744FQ42S159.081In Stock2MEAN WELL159.08 @ 1
thumbzoomTMEHEP-320-24A168.63117MEAN WELL168.63 @ 1
electricautomationnetwork.comHEP-320-24A179.831In StockMEANWELL179.83 @ 1
us.rs-online.com71269280180.76110MEAN WELL180.76 @ 1
thumbzoomAmazonSCB07K37B53L181.941In StockMEAN WELL181.94 @ 1
thumbzoomDigi-Key7703833200.352114MEAN WELL USA Inc.200.352 @ 1
RS Delivers106-5898339.504136Mean Well339.504 @ 1
