MEAN WELL SP-320-36

mpnSP-320-36
brandname: MEAN WELL
manufacturername: MEAN WELL

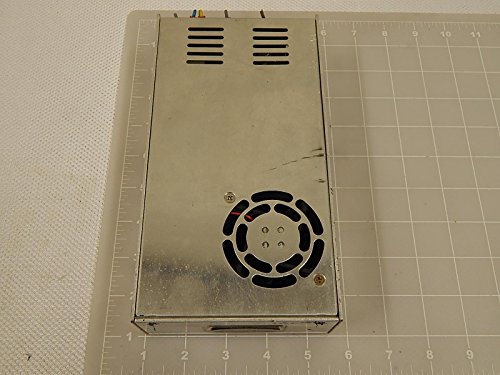

Mean Well SP-320-36 AC/DC Power Supply, Single Output, 36 Volt, 8.8 Amp, 316.8 Watt, 8.5" L x 4.5" W x 2" H

Mean Well SP-320-36 AC/DC Power Supply, Single Output, 36 Volt, 8.8 Amp, 316.8 Watt, 8.5" L x 4.5" W x 2" H

zoom

Brand: MEAN WELL
PartNumber: SP-320-36
Model: SP-320-36
PackageQuantity: 1
Binding: Misc.
Manufacturer: Mean Well
Label: Mean Well

Attributes

Key	Value
AC inrush current (max.)	Cold start, 40A at 230V.
Case No.	207A
Connection Input	9P / 9.5mm pitch termin.
Dimension (LxWxH)	215x115x30
Dimensions	215 x 115 x 50 mm
Industry Aliases	new
Input Voltage	88~264VAC
Isolation Resistance	I/P - O/P, I/P-FG, O/P-.
MTBF	207K hrs min. MIL-HDBK-.
Number of Outputs	1
Output Rated Current	8.8A
Output Voltage	36V
Over voltage protection.	115%~145%
Overload protection Ran.	105%~135%
Safety standards	UL60950-1, TUV EN60950-.
Storage Temp., Humidity	-40 ~ +85?C, 10 ~ 95% RH
Temp. Coefficient	?0.03%/?C (0 ~ 50?C)
Vibration	10 ~ 500Hz, 2G 10min. /.
Wattage	316.8
Withstand Voltage	I/P - O/P : 3.75KVAC---.
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:.
Working Humidity	20 ~ 90% RH non-condens.
Working Temp.	-20 ~ +65?C (Refer to ".

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	powersupplymall.com	SP-320-36	53.07	1	3		Mean Well		53.07 @ 1
	Onlinecomponents.com	SP-320-36	65.02	1	48		MEAN WELL		65.02 @ 1
	Future Electronics	2257616	86.424	2	In Stock		MEAN WELL		86.424 @ 2
	peaktopeakpower.com	SP-320-36	102.5	1	In Stock		Mean Well		102.5 @ 1
	RS Delivers	678-3837	137.988	1	In Stock		Mean Well		137.988 @ 1
