METZ CONNECT 31183103

B00HPOY7O4

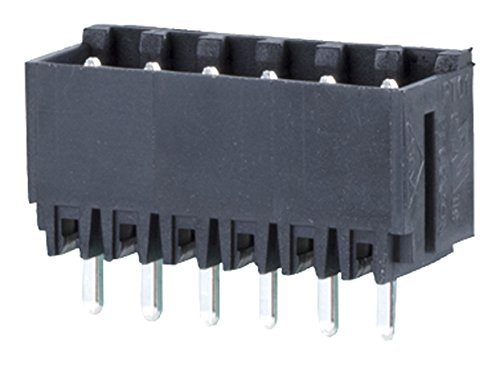

METZ CONNECT 31183103 Connector Headers and PCB Receptacles

METZ CONNECT 31183103 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
CategoryConnectors, Interconnec.
ColorBlack
Contact MaterialCopper Alloy
Contact Mating FinishSilver
Contact Tail Length0.138" (3.50mm)
Current - IEC-
Current - UL10 A
DescriptionPIN HEADER, VERTICAL, S.
Detailed Description3 Position Terminal Blo.
Digi-Key Part Number1849-1320-ND
Features-
Header OrientationVertical
Housing MaterialPolyamide (PA66), Nylon.
Ingress Protection-
Insulation Height0.441" (11.20mm)
ManufacturerMETZ CONNECT USA Inc.
Manufacturer Product Nu.31183103
Manufacturer Standard L.16 Weeks
Material Flammability R.UL94 V-0
MfrMETZ CONNECT USA Inc.
Mounting TypeThrough Hole
Number of Levels1
Number of Positions3
Operating Temperature-40?C ~ 105?C
PackageBulk
Pitch0.138" (3.50mm)
Plug Wire Entry-
Positions Per Level3
Product StatusActive
Screw Size-
Series-
Termination StyleSolder
Torque - Screw-
TypeHeader, Male Pins, Shro.
Voltage - UL300 V
Wire Gauge or Range - A.-
Wire Gauge or Range - m.-
Wire Strip Length-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future ElectronicsC0223992480.498100240METZ CONNECT0.498 @ 100
Heilind Electronics311831030.567121176Metz Connect0.56712 @ 1
Onlinecomponents.com311831030.571433Metz Connect0.57 @ 1
thumbzoomNewark37AC68280.6951000143METZ CONNECT0.695 @ 1
Verical311831030.74867268Metz Connect0.748 @ 67
thumbzoomDigi-Key98265990.9911242METZ CONNECT USA Inc.0.99 @ 1
