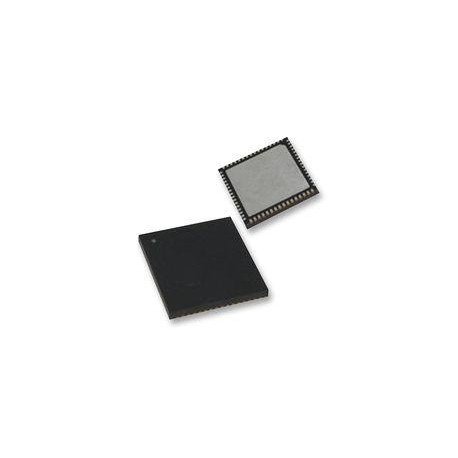

MICROCHIP TECHNOLOGY PIC24FJ128DA106-I/MR

mpnPIC24FJ128DA106-I/MR
brandname: MICROCHIP TECHNOLOGY
manufacturername: MICROCHIP TECHNOLOGY

PIC24FJ128DA106-I/MR

Brand: MICROCHIP TECHNOLOGY
PartNumber: PIC24FJ128DA106-I/MR
Model: PIC24FJ128DA106-I/MR
PackageQuantity: 1
Manufacturer: Microchip Technology
Label: Microchip Technology

Attributes

Key	Value
A/D Bit Size	10 bit
A/D Channels Available	16
ADC Resolution	10 bit
Alternate Part No.	579-PIC24FJ128106IMR
Architecture	C Compiler ; Modified H.
Base Product Number	PIC24FJ128DA106
Brand	MICROCHIP TECHNOLOGY
Built-in generator	32kHz,
Case	QFN64
Category	Integrated Circuits (IC.
Clock frequency	32MHz
Comparator Type	3
Connectivity	I?C, IrDA, SPI, UART/US.
Core	PIC
Core Processor	PIC
Core Size	16-Bit
CPU Speed	16 MIPS
Data Bus Width	16 bit
Data Converters	A/D 16x10b
Data RAM Size	24 kB
Data RAM Type	RAM
Data Rate	16 MIPS
Dimensions	9.00 x 9.00 x 0.95 mm
EEPROM Memory	0 B
EEPROM Size	-
Family	PIC24
Family Name	PIC24
Frequency	32
Height	0.037" (0.95mm)
Input Output	52
Interface	I2C/SPI/UART/USART/USB
Interface Type	I2C, SPI, UART
Kind of architecture	Harvard 16bit
Length	0.354 in
Manufacturer	Microchip, MICROCHIP TE.
Manufacturer Part No.	PIC24FJ128DA106-I/MR
Maximum Clock Frequency	32 MHz
Maximum Number of I2C C.	3
Maximum Number of LIN C.	1
Maximum Number of SPI C.	3
Maximum Number of UART .	4
Maximum Operating Tempe.	+ 85 C, +85 ?C
Memory Type	FLASH
Mfr	MICROCHIP TECHNOLOGY
Minimum Operating Tempe.	-40 ?C, - 40 C
Mounting	SMD
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of 16bit timers	5
Number of 32bit timers	0, 2
Number of ADCs	16 x 10 bit
Number of Bits	16
Number of capacitive ch.	16
Number of I/O	52
Number of I/Os	29 I/O
Number of inputs/outputs	52
Number of IO Ports	52
Number of Pins	64
Number of PWM Units	1
Number of Timers	5 Timer, 7
Operating Supply Voltage	2.2 V to 3.6 V
Operating Temperature	-40?C ~ 85?C (TA)
Operating Voltage	2.2 to 3.6 V
Oscillator Type	Internal
Package	Tray
Package / Case	64-VFQFN Exposed Pad
Package Type	VFQFN
Package/Case	QFN-64
Packaging	Tube
Peripherals	Brown-out Detect/Reset,.
Processor Series	PIC24F
Product Category	16-bit Microcontrollers.
Product Status	Active
Program memory	128kB
Program Memory Size	128 kB, 128KB (43K x 24)
Program Memory Type	FLASH
Programmable Memory	128K Bytes
Pulse Width Distortion	9 x 16 bit
PWM Channels	9
PWM Resolution	16 bit
RAM Size	24K x 8, 24 kB
Series	PIC 24F Series, PIC24F,.
Speed	32 MHz, 32MHz
SRAM memory capacity	24kB
Supplier Device Package	64-VQFN (9x9)
Temperature Operating R.	-40 to +85 ?C
Temperature Range	-40 to 85 C
Timer Resolution	16, 32 bit
Timers	2 x 32 bit, 5 x 16 bit
Type	PIC
Type of integrated circ.	PIC microcontroller
USB Channels	1 x Device, 1 x Host, 1.
Voltage - Supply (Vcc/V.	2.2V ~ 3.6V
Voltage Range	2.2-3.6 V
Width	0 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Hotenda	H2321067	6.09	1	48	Microchip Technology	6.09 @ 1
Newark	65T6690	7.05	120	In Stock	MICROCHIP	7.05 @ 120
Digi-Key	2352051	8.89	1	In Stock	Microchip Technology	8.89 @ 1
TME	24FJ128DA106-I/MR	10.8	1	In Stock	MICROCHIP TECHNOLOGY	10.8 @ 1
swatee.com	PIC24FJ128DA106-I/MR	14.22	1	In Stock	Microchip	14.22 @ 1
us.rs-online.com	70048056	17.89	1	200	Microchip Technology Inc.	17.89 @ 1
