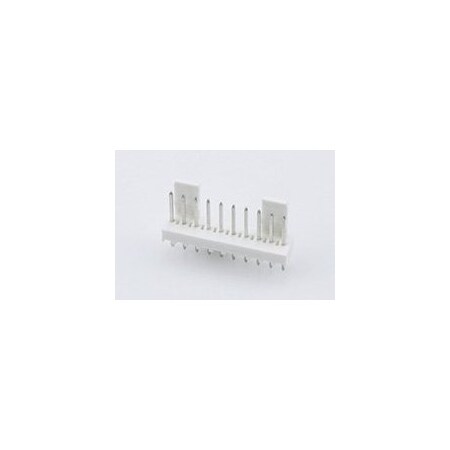

MOLEX 22-27-2101 WIRE-BOARD CONN, HEADER, 10POS, 2.54MM (1 piece)

MOLEX 22-27-2101 WIRE-BOARD CONN, HEADER, 10POS, 2.54MM (1 piece)

zoom

PartNumber: 22272101
Model: 22-27-2101
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	AE-6410-10A(222)
Amps - Plugs and Recept.	4 A
Angle	Vertical
Application	Signal ; Wire-to-Board
Body Material - Pin and.	Nylon
Category	Connectors, Interconnec.
Color	White
Color - Plugs and Recep.	Natural (White)
Connector Type	Male Pin
Contact Finish - Mating	100.0?in (2.54?m)
Contact Finish - Post	Brass
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	Automotive, General Pur.
Contact Length - Mating	0.140" (3.56mm)
Contact Length - Post	0.560" (14.22mm)
Contact Material	Polyamide (PA), Nylon
Contact Shape	Tin
Contact Type	0.100" (2.54mm)
Current Rating	4 A
Current Rating (Amps)	-
Family Name	KK 254
Fastening Type	0.295" (7.49mm)
Features	Lock to Mating Part, Po.
Ingress Protection	UL94 V-0
Insulation Color	-
Insulation Height	Square
Insulation Material	-
Mated Stacking Heights	100.0?in (2.54?m)
Material Flammability R.	Natural
Mfr	Molex
Mounting Type	Solder
Number of Circuits	10
Number of Contacts	10
Number of Positions	1
Number of Positions Loa.	Board to Cable/Wire
Number of Rows	1, -
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.461" (11.70mm)
Package	Active
Part Status	Header
Pitch	2.54 mm (0.100")
Pitch - Mating	10
Plating Material	Tin
Primary Type	Board Mount
Row Spacing - Mating	All
Series	Bulk, 6410 Series
Shrouding	Through Hole
Special Features	Low-Halogen
Standards	CSA LR19980, UL E29179
Style	Shrouded - 1 Wall
Terminal Connection	Through Hole
Termination	Through Hole, Friction .
Type	Header
Voltage	500V
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Rutronik	COREC13028	0.2111	500	1500		Molex		0.2111 @ 500
	Waldom	MOLEX 22-27-2101	0.32	200	6678		MOLEX		0.32 @ 200
	Avnet	22-27-2101	0.32717	1	305		Molex		0.32717 @ 1
	Power and Signal Group	0022272101	0.3583	4000	305		Molex		0.3583 @ 4000
	Onlinecomponents.com	22-27-2101	0.381	90	45		Molex		0.381 @ 90
	jensentools.com	10158922	0.47	1	6328		Molex		0.47 @ 1
	us.rs-online.com	70373055	0.57736	1	305		Molex Incorporated		0.57736 @ 1
	Digi-Key	WM4119-ND	0.73	1	305		Molex		0.73 @ 1
	RS Delivers	483-8534	0.876	1	2160		Molex		0.876 @ 1
	Newark	96K2976	0.897	1	1917		MOLEX		0.897 @ 1
	Radwell	22-27-2101	1.4	1	7		MOLEX		1.4 @ 1
	TME	MX-6410-10A	1.482	1	99		MOLEX		1.482 @ 1
	Component Electronics	299-3744	1.54	1	40		Molex		1.54 @ 1
	AmazonSC	B005T7DR2C	2.29	1	43		MOLEX		2.29 @ 1
	AmazonTP	B07QRFPXRB	68.44	1	305	1	Molex / Waldom		68.44 @ 1
	Zoro	G2750322	136.0	1	305		Molex		136.0 @ 1
