Molex / Waldom 90136-1102

B00GQQJRM4

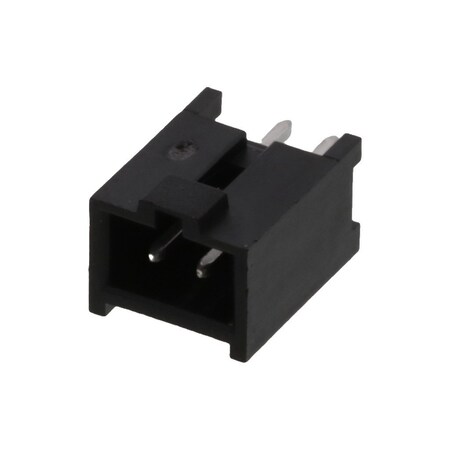

Molex / Waldom 90136-1102 Connector Headers and PCB Receptacles

Molex / Waldom 90136-1102 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Mfr Part Numb.90136-1102
Alternate Part No.538-90136-1102
ApplicationsAutomotive, General Pur.
Base Product Number090136
BrandMOLEX
CategoryConnectors, Interconnec.
Circuits (Loaded)2
Circuits (maximum)2
ColorBlack
Color - ResinBlack
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Finish Thicknes.-
Contact Length - Mating0.266" (6.75mm)
Contact Length - Post0.114" (2.90mm)
Contact MaterialBrass
Contact PlatingTin
Contact ShapeSquare
Contact TypeMale Pin
CSALR19980
Current - Maximum per C.3.0A
Current Rating3 A
Current Rating (Amps)-
Duration at Max. Proces.3
Family NameC-Grid III
Fastening TypeLatch Holder
Features-
Flammability94V-0
Housing MaterialPolyester
Ingress Protection-
Insulation ColorBlack
Insulation Height0.429" (10.90mm)
Insulation MaterialPolyester, Glass Filled
Lock to Mating PartYes
ManufacturerMOLEX
Manufacturer Part No.90136-1102
Mated Stacking Heights-
Material - MetalBrass
Material - Plating Term.Tin
Material - ResinPolyester
Material Flammability R.UL94 V-0
Max. Cycles at Max. Pro.1
MfrMOLEX
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Circuits2
Number of Contacts2
Number of Positions2
Number of Positions Loa.All
Number of Rows1
Operating Temperature-
Operating Temperature R.- 55 C to + 125 C
OrientationVertical
Overall Contact Length0.510" (12.95mm)
PackageTray
PackagingTray
Part # Aliases0901361102
Part StatusActive
PC Tail Length2.90mm
PCB Thickness - Recomme.1.60mm
Pitch2.54 mm, 2.54 mm (0.100.
Pitch - Mating0.100" (2.54mm)
Pitch - Mating Interface2.54mm
Pitch - Termination Int.2.54mm
Plating MaterialTin
Plating min - Mating3.048?m
Plating min - Terminati.3.048?m
Primary TypeBoard Mount
Product CategoryHeaders & Wire Housings
Product TypeHeaders
Row Spacing - Mating-
SeriesC-Grid III 90136, 90136.
ShroudingShrouded - 4 Wall
Special FeaturesNot Low-Halogen
StyleBoard to Cable/Wire
Temperature Range - Ope.-55? to +125?C
TerminationSolder
Termination Interface: .Through Hole
Termination StyleThrough Hole
TradenameC-Grid
TypeVertical Header, Shroud.
ULE29179
Voltage - Maximum350V AC/DC
Voltage Rating350 VAC/DC, -

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 90136-11020.481506172MOLEX0.48 @ 150
Onlinecomponents.com90136-11020.511851MOLEX / WALDOM0.51 @ 50
Power and Signal Group09013611020.5116304050Molex0.5116 @ 3040
thumbzoomswatee.com90136-11020.71264Molex0.7 @ 50
us.rs-online.com700913210.73150Molex Incorporated0.73 @ 50
thumbzoomNewark99K13760.847150MOLEX0.847 @ 50
Arrow90136-11020.93812161216Molex0.938 @ 1216
Digi-Key7609260.952121604844Molex0.952 @ 50
RS Delivers670-5287P1.418415670Molex1.4184 @ 50
thumbzoomZoroG4034481115.010050Molex115.0 @ 100
