Molex / Waldom 90136-1104

mpn901361104
brandname: MOLEX
manufacturername: MOLEX

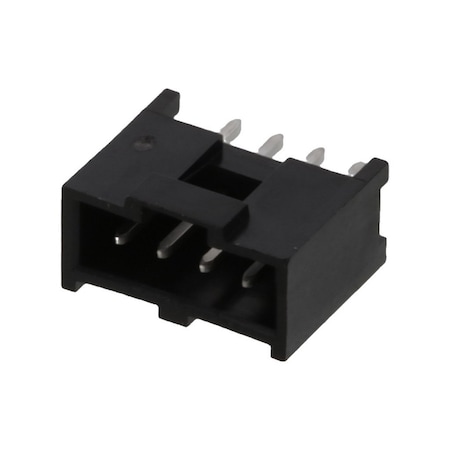

Molex / Waldom 90136-1104 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 90136-1104
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	90136-1104
Angle	Vertical
Applications	Automotive, General Pur.
Base Product Number	090136
Category	Connectors, Interconnec.
Circuits (Loaded)	4
Circuits (maximum)	4
Color	Black
Color - Resin	Black
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
CSA	LR19980
Current - Maximum per C.	3.0A
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 4POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM8215-ND
Family Name	C-Grid III
Fastening Type	Latch Holder
Features	-
Flammability	94V-0
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.429" (10.90mm)
Insulation Material	Polyester, Glass Filled
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Product Nu.	0901361104
Manufacturer Standard L.	13 Weeks
Mated Stacking Heights	-
Material - Metal	Brass
Material - Plating Mati.	Tin
Material - Plating Term.	Tin
Material - Resin	Polyester
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	4
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.510" (12.95mm)
Package	Tray
PC Tail Length	2.90mm
PCB Thickness - Recomme.	1.60mm
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Pitch - Mating Interface	2.54mm
Pitch - Termination Int.	2.54mm
Plating Material	Tin
Plating min - Mating	3.048?m
Plating min - Terminati.	3.048?m
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	-
Series	C-Grid III 90136, 90136.
Shrouded	Fully
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Style	Board to Cable/Wire
Temperature Range - Ope.	-55? to +125?C
Termination	Solder
Termination Interface: .	Through Hole
Type	Vertical Header
UL	E29179
Voltage - Maximum	350V AC/DC
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Newark	01AH1816	0.13	1	100	MOLEX	0.13 @ 100
Onlinecomponents.com	90136-1104	0.488	1	2777	MOLEX / WALDOM	0.488 @ 100
RS Delivers	170-7178	0.6732	1	100	Molex	0.6732 @ 100
TME	MX-90136-1104	0.827	10	150	MOLEX	0.827 @ 100
Digi-Key	760928	0.92188	1	472	Molex	0.92188 @ 100
us.rs-online.com	70374014	1.32	5	100	Molex Incorporated	1.32 @ 100
Zoro	G4033553	114.75	1	100	Molex	114.75 @ 100
