- mpnGB15AH-XC
- brandname: NKK Switches
- manufacturername: NKK Switches

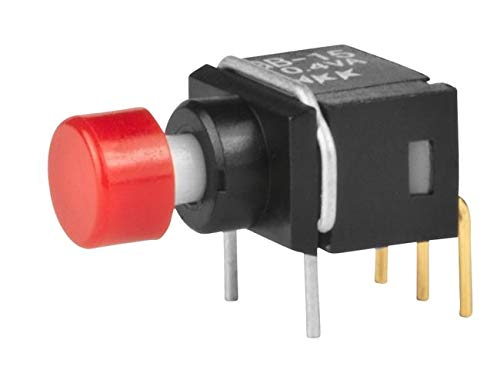

NKK SWITCHES GB15AH-XC Switch, PB, Non-Illum, SPDT, 0.1A, RED
- Brand: NKK Switches
- PartNumber: GB15AH-XC
- Model: GB15AH-XC
- PackageQuantity: 1
- Manufacturer: NKK SWITCHES
- Label: NKK SWITCHES
Attributes
| Key | Value |
|---|
| Actuator | Round |
| Actuator Color | Red |
| Actuator Marking | No Marking |
| Actuator Type | Round, Round, Button |
| Alternate Part No. | 633-GB15AH-XC |
| Base Product Number | GB15AH |
| Brand | NKK Switches |
| Category | Switches |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Contact Form | SPDT |
| Contact Plating | Gold |
| Current Rating | 0.1 A |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Description | SWITCH PUSH SPDT 0.4VA . |
| Detailed Description | Pushbutton Switch SPDT . |
| Digi-Key Part Number | 360-2628-ND |
| Electrical Life | 50,000 Cycles |
| Features | - |
| Illumination Type, Color | - |
| Illumination Voltage (N. | - |
| Ingress Protection | - |
| Manufacturer | NKK Switches |
| Manufacturer Part No. | GB15AH-XC |
| Manufacturer Product Nu. | GB15AH-XC |
| Manufacturer Standard L. | 43 Weeks |
| Mechanical Life | 50,000 Cycles |
| Mfr | NKK Switches |
| Mounting Style | Through Hole |
| Mounting Type | Through Hole, Through H. |
| Operating Temperature | -30?C ~ 85?C |
| Operation | ON-(ON) |
| Package | Tray |
| Panel Cutout Dimensions | - |
| Power Rating | 0.4 VA |
| Primary Type | Switch |
| Product Category | Pushbutton Switches |
| Product Status | Active |
| Series | GB Series, GB, G |
| Switch Function | ON - (ON), On-Mom |
| Termination | PCB Pins |
| Termination Style | PC Pin, Solder Pin |
| Type | Ultra Mini Pushbutton, . |
| Voltage Rating | 28 V |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
| Voltage Rating AC | 28 V |
| Voltage Rating DC | 28 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Future Electronics | 3022527 | 5.832 | 1000 | In Stock | | NKK Switches | | 5.832 @ 1000 |
| us.rs-online.com | 70365561 | 6.19 | 1 | 150 | | NKK Switches | | 6.19 @ 1 |
 | Digi-Key | 1055102 | 7.98 | 1 | 1726 | | NKK Switches | | 7.98 @ 1 |
 | swatee.com | GB15AH-XC | 8.56 | 1 | 7 | | NKK Switches | | 8.56 @ 1 |
 | Newark | 09X9455 | 9.96 | 1 | In Stock | | NKK SWITCHES | | 9.96 @ 1 |
| AmazonTP | B00HPLPLA6 | 10.71 | 1 | In Stock | 2 | NKK SWITCHES | | 10.71 @ 1 |
