- mpnLCA250-38H-X
- brandname: Panduit
- manufacturername: Panduit

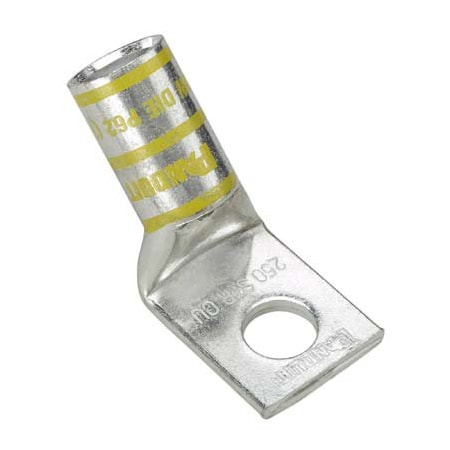

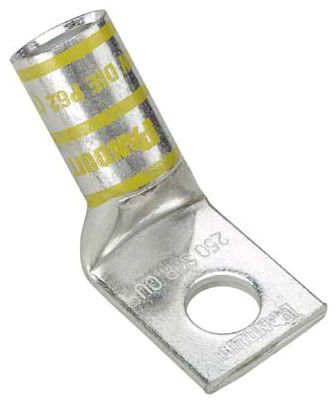

Panduit LCA250-38H-X Tin-Plated Copper Compression Connector Lug, One-Hole, Standard Barrel with Window, 250kcmil Cable, 3/8" Stud Hole, 45? Angle Tongue
- Brand: Panduit
- PartNumber: LCA250-38H-X
- Model: LCA250-38H-X
- Color: Yellow
- Size: Conductor Size/Range 1 #2 AWG
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 250 |
| Angle | 45? |
| Approvals | CSA, UL |
| Barrel Length | 1.25 |
| Base Product Number | LCA250 |
| Brand | Panduit |
| Catalog Number | LCA250-38H-X |
| Category | Connectors, Interconnec. |
| Color | Yellow |
| Color Code | Yellow |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Diameter - Barrel ID | 0.630" (16.00mm) |
| Diameter - Barrel OD | 0.770" (19.56mm) |
| Diameter - Ring ID | 0.410" (10.41mm) |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Gross Weight | 0.92 lbs |
| GTIN | 00074983558681 |
| Hole Center to Center | 44628 |
| Insulation | Non-Insulated |
| Item Number | LCA250-38H-X |
| Item Type | Copper Compression Conn. |
| Length - Overall | - |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part Number | LCA250-38H-X |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 250 kcmil |
| Mfr | Panduit Corp |
| Min Conductor Range | 250 kcmil |
| Mounting | 1.31, 1-Hole |
| Mounting Type | Free Hanging (In-Line),. |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Overall Length | 2.13 in |
| Package | Bulk |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Size | 250 kcmil Code |
| Special Features | Consult cable manufactu. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Standards | C22.2 No. 65-13, 486A-4. |
| Stud Size | 3/8 in, 42.95 |
| Stud/Tab Size | 3/8 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.140" (3.56mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Tongue Style | Standard |
| Tongue Width - Wire Con. | 1.17 |
| Tool Type | Tin-Plated Copper Compr. |
| UPC | 074983558681 |
| Width - Outer Edges | 1.170" (29.72mm) |
| Wire Gauge | 250MCM (kcmil) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCA250-38H-X | 10.79 | 1 | In Stock | | PANDUIT | | 10.79 @ 1 |
 | alldataresource.com | LCA250-38H-X | 14.2 | 1 | In Stock | | Panduit | | 14.2 @ 1 |
| Verical | LCA250-38H-X | 17.19 | 4 | 18 | | Panduit | | 17.19 @ 4 |
| Digi-Key | 4564333 | 18.388 | 10 | In Stock | | Panduit Corp | | 18.388 @ 10 |
| Onlinecomponents.com | LCA250-38H-X | 19.76 | 1 | 18 | | PANDUIT | | 19.76 @ 1 |
| LCOMP | 07498355868 | 21.63 | 1 | In Stock | | Panduit | | 21.63 @ 1 |
 | Galco | LCA250-38H-X-PNDT | 23.97 | 10 | In Stock | | Panduit | 0.92 | 23.97 @ 10 |
 | Zoro | G004859298 | 25.01 | 1 | In Stock | 15 | Panduit | | 25.01 @ 1 |
 | Platt.com | 0682077 | 25.5 | 1 | In Stock | | Panduit | | 25.5 @ 1 |
 | crescentelectric.com | 1288133 | 27.28 | 1 | In Stock | | Panduit | | 27.28 @ 1 |
| Airline Hydraulics | PANDUIT LCA250-38H-X | 28.89 | 1 | In Stock | | Panduit Corp | | 28.89 @ 1 |
| Newark | 66H0804 | 189.34 | 1 | In Stock | | PANDUIT | | 189.34 @ 1 |
 | Carlton Bates Company | 07498355868 | 216.3 | 1 | In Stock | | PANDUIT | | 216.3 @ 1 |
 | gordonelectricsupply.com | LCA250-38H-X | 252.0 | 1 | In Stock | 12 | PANDUIT | | 252.0 @ 1 |
| steinerelectric.com | 70476 | 2813.5 | 1 | In Stock | | Panduit | | 2813.5 @ 1 |
 | turtle.com | PAN LCA250-38H-X | 2824.53 | 1 | In Stock | | Panduit | | 2824.53 @ 1 |
