- mpnLCB1-12-E
- brandname: Panduit
- manufacturername: Panduit

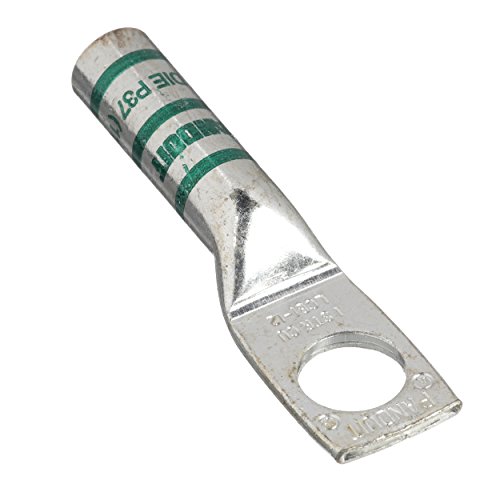

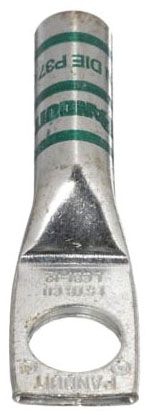

Panduit LCB1-12-E Tin-Plated Copper Compression Connector Lug, One-Hole, Long Barrel, #1 AWG Wire, 1/2" Stud Hole
- Brand: Panduit
- PartNumber: LCB1-12-E
- Model: LCB1-12-E
- Color: Green
- Size: Conductor Size/Range 1 1/0 AWG
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Approvals | CSA, UL |
| Base Product Number | LCB1 |
| Brand | Panduit, Pan-Lug? |
| Cable Size | 1 AWG |
| Catalog Number | LCB1-12-E |
| Category | Connectors, Interconnec. |
| Color | Green |
| Color Code | Green |
| Color Family | Green |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN TERM RECT TONG 1 A. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
| Diameter - Ring ID | - |
| Die Color | Green |
| Digi-Key Part Number | 298-14764-ND |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 1.25 lbs |
| GTIN | 00074983449101 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCB1-12-E |
| Item Type | Copper Compression Conn. |
| Length | 2.81" |
| Length - Overall | 2.810" (71.37mm) |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCB1-12-E |
| Manufacturer Product Nu. | LCB1-12-E |
| Manufacturer Standard L. | 4 Weeks |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 1 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 1 AWG |
| Mounting | 1.44 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Package | Bulk |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Size | #1 AWG Code |
| Special Features | Consult cable manufactu. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Stud Size | 42.767, 1/2 in |
| Stud/Tab Size | 1/2 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.090" (2.29mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Type | Compression Lug, Long B. |
| UNSPSC | 39121405 |
| UPC | 074983449101 |
| Width | 3/4" |
| Width - Outer Edges | 0.750" (19.05mm) |
| Wire Gauge | 1 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCB1-12-E | 4.64 | 1 | In Stock | | PANDUIT | | 4.64 @ 1 |
 | French Gerleman | PANDLCB112E | 5.41 | 1 | In Stock | | Panduit | | 5.41 @ 1 |
 | Digi-Key | 4565041 | 8.36 | 1 | 13 | | Panduit Corp | | 8.36 @ 1 |
| Onlinecomponents.com | LCB1-12-E | 8.5 | 1 | In Stock | | Panduit | | 8.5 @ 1 |
 | Zoro | G0421974 | 9.4 | 1 | In Stock | 58 | Panduit | 1.25 | 9.4 @ 1 |
 | Galco | LCB1-12-E-PNDT | 10.31 | 20 | In Stock | | Panduit | 1.25 | 10.31 @ 20 |
 | Platt.com | 0687412 | 10.98 | 1 | In Stock | | Panduit | | 10.98 @ 1 |
 | crescentelectric.com | 416838 | 11.74 | 1 | In Stock | | Panduit | | 11.74 @ 1 |
| Newark | 72P1852 | 11.78 | 1 | In Stock | | PANDUIT | | 11.78 @ 1 |
| Airline Hydraulics | PANDUIT LCB1-12-E | 12.43 | 1 | In Stock | | Panduit Corp | | 12.43 @ 1 |
 | gordonelectricsupply.com | LCB1-12-E | 217.0 | 1 | In Stock | 12 | PANDUIT | | 217.0 @ 1 |
 | turtle.com | PAN LCB1-12-E | 1215.27 | 1 | In Stock | | Panduit | | 1215.27 @ 1 |
| Graybar | 25692669 | 1359.1648 | 1 | In Stock | | Panduit | | 1359.1648 @ 1 |
